Coordinate Tool Inputs

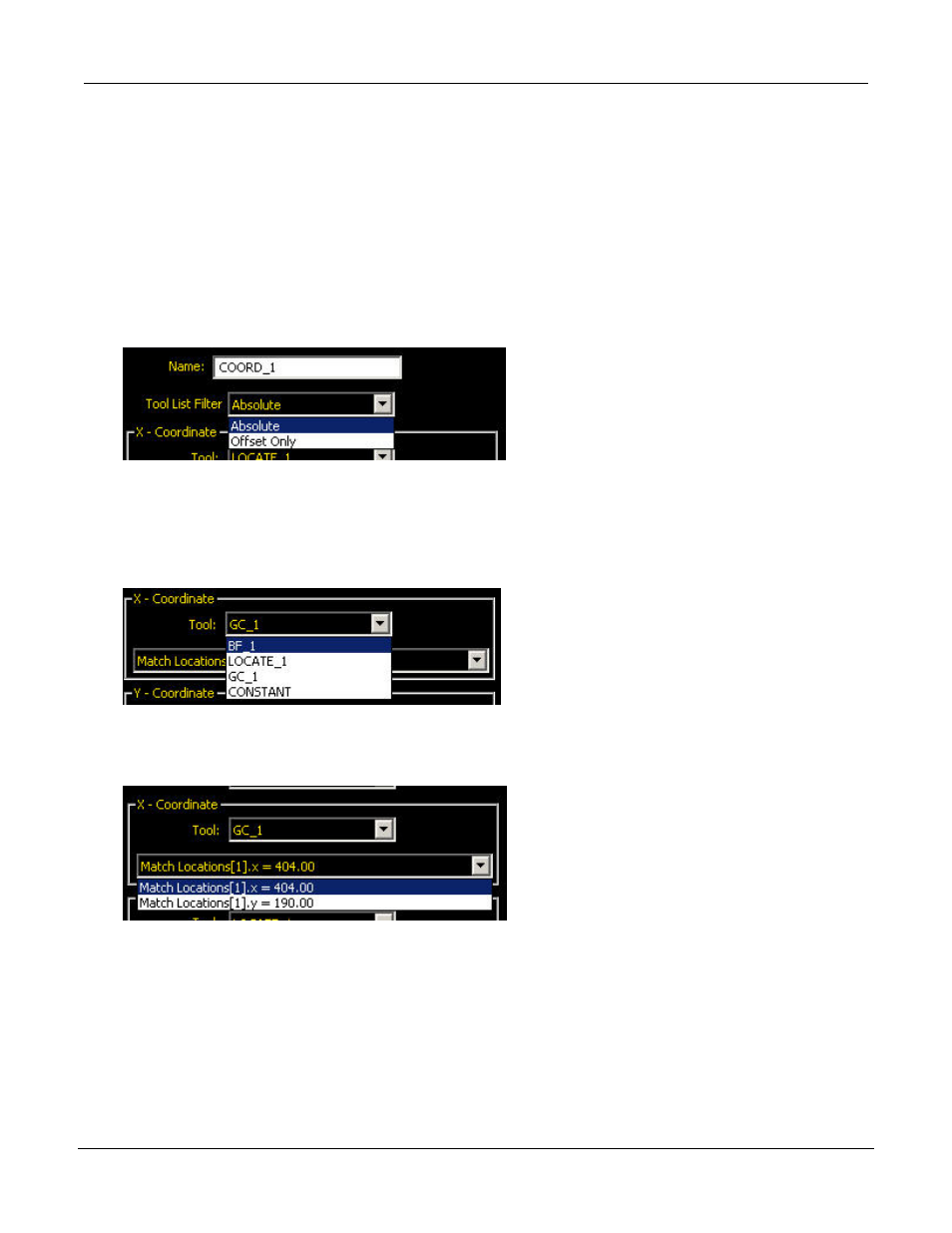

Tool List Filter
The Tool List Filter helps to limit the input data available for x,y coordinates and angle data. From the drop-down,
select either of the following:
• Absolute—this is the default, and enables x and y location data as well as angle information from
any tools that provide this data.
• Offset Only—which enables the selection of location offsets of x and y coordinates and angle data
from location tools.
X - Coordinate
From the drop-down list of available tools that provide x and y coordinate data, select a tool or, to enter a
constant value, select CONSTANT.
Select x or y coordinate information for that tool.
Y - Coordinate
From the drop-down list of available tools that provide x and y coordinate data, select a tool or, to enter a
constant value, select CONSTANT.
