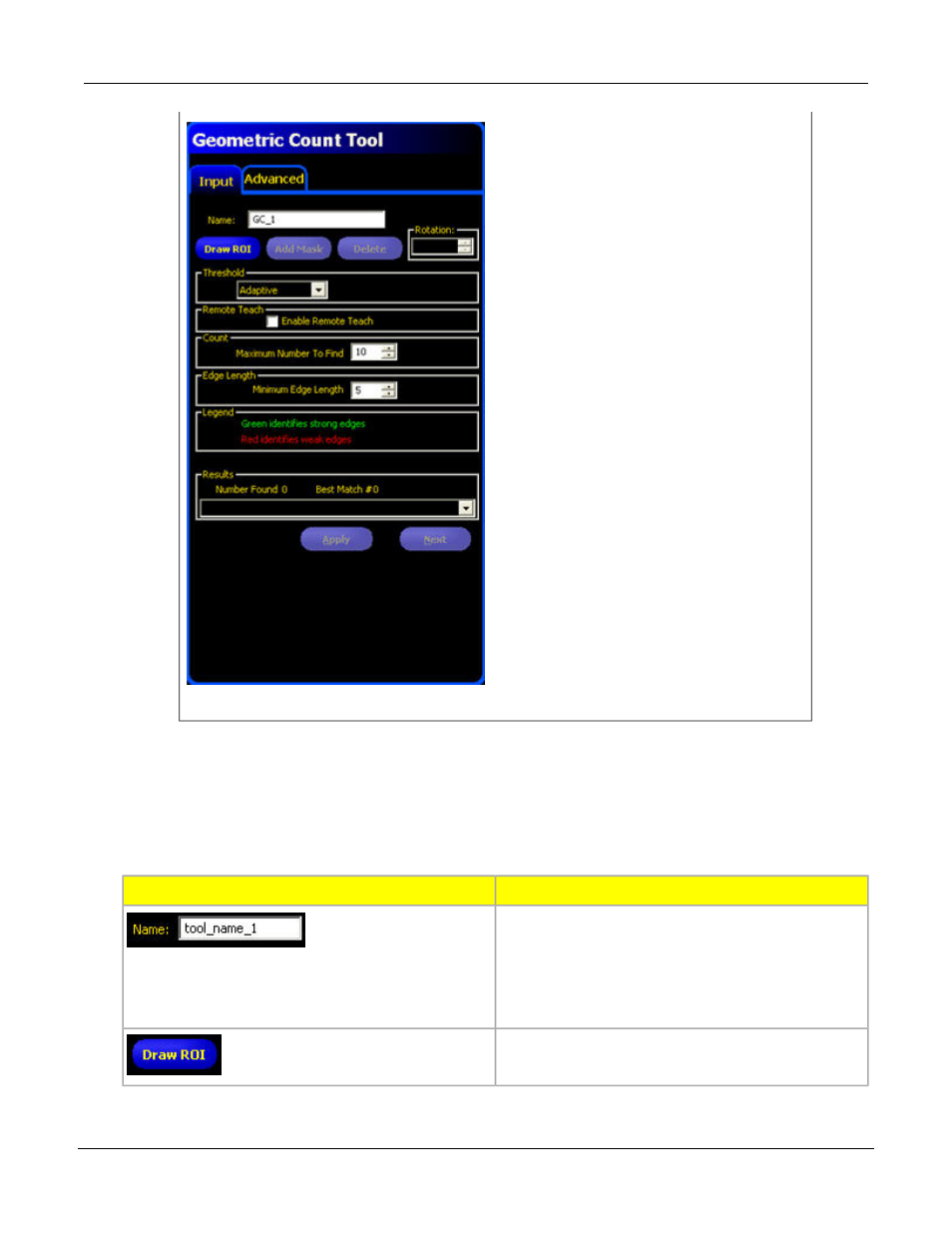

Adding a Geometric Count Tool

To add a tool to an inspection:

1. Click the button of the tool to be added to the inspection.
2. If desired, rename the tool.
3. Draw an ROI.

Description

Field/Button

Use this field to rename the tool. The default is
tool_name_1, tool_name_2, and so on, where the
default tool_name depends on the tool being created
(for example, locate, edge or the like). The name can
have only alphanumeric characters and underscores
with no spaces.

Click this button to add an ROI to an image.
