Results

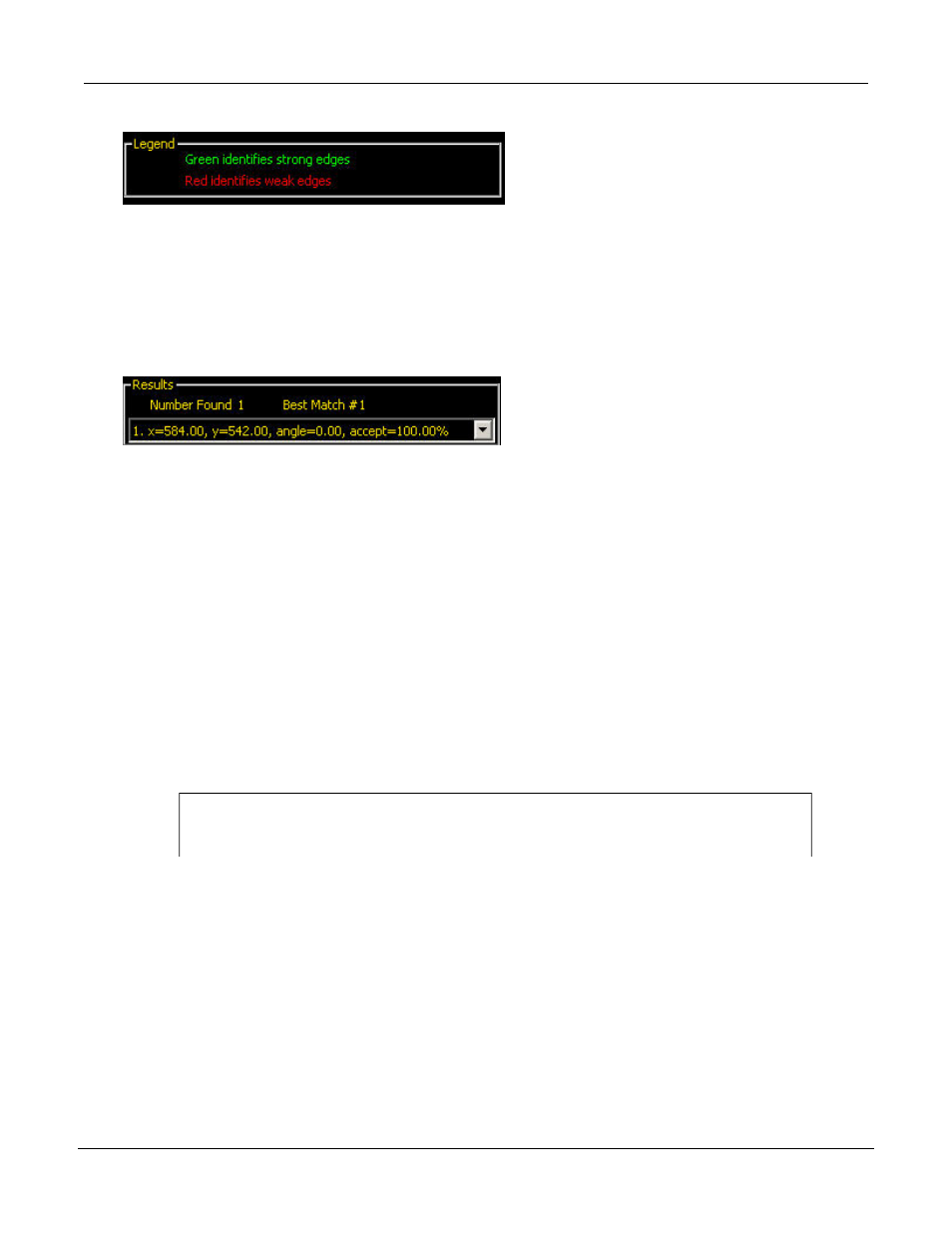

The Results field returns the following:
• Total number of shapes above the minimum acceptance level.
• Position of each shape's center. The origin (0,0) is the upper-left corner of the screen.
Geometric Find Tool Advanced Tab
Fields in the Geometric Find Tool Advanced tab are described in the following subsections.
Fields
The following are fields on the Geometric Find tool Input tab:
•
Rotation Range7.2.2.6.1 Rotation Range
on page 115
•
Extra and Missing Edges7.2.2.6.2 Extra and Missing Edges
on page 116
•
Minimum Acceptance Level7.2.2.6.3 Minimum Acceptance Level
on page 116
•
Reject Threshold7.2.2.6.4 Reject Threshold
on page 116
•
Scaling Range7.2.2.6.5 Scaling Range
on page 117
•
Tool Timeout and Absolute Positioning7.2.2.6.6 Tool Timeout and Absolute Positioning
on page
110
•
on page 117
