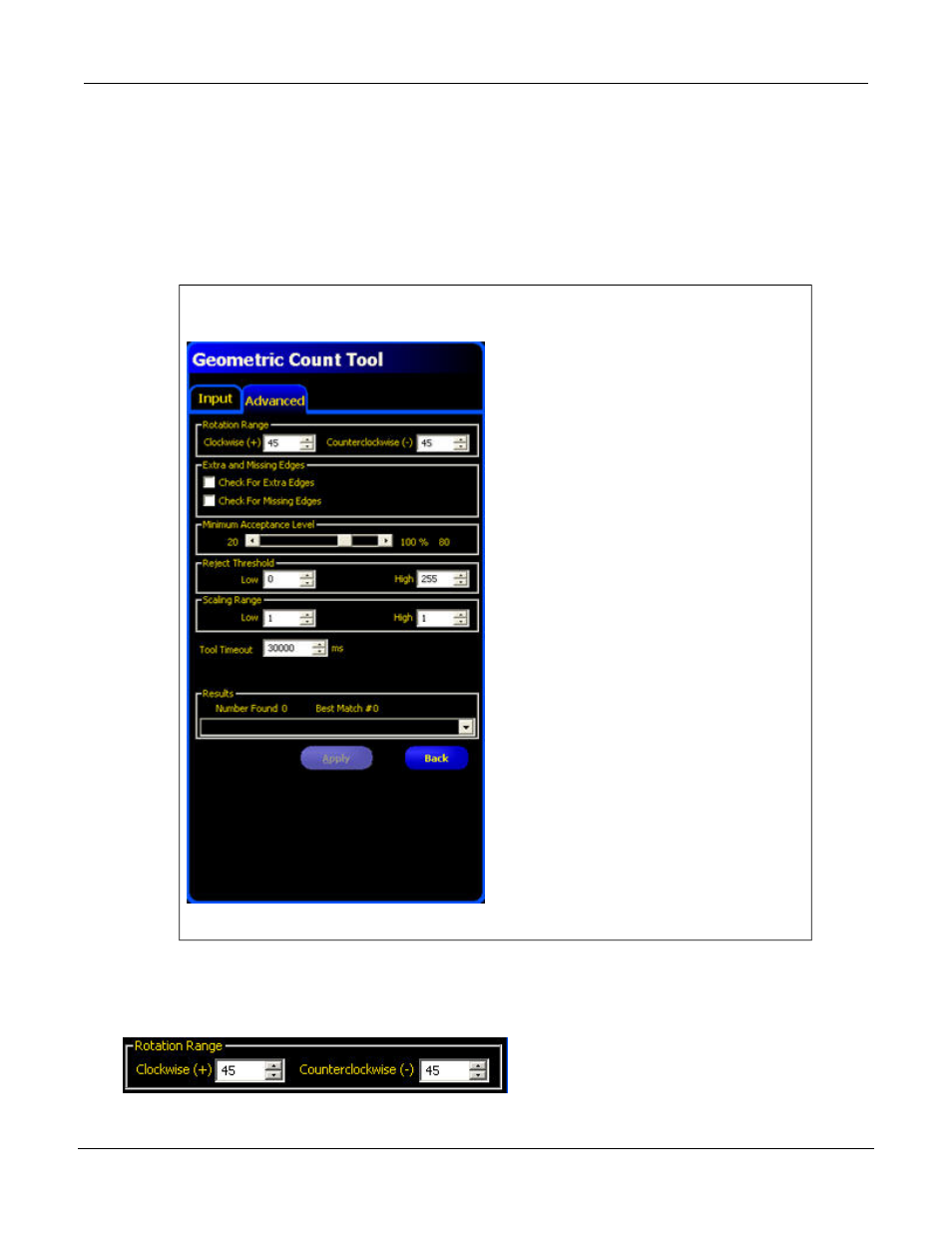

The following are fields on the Geometric Count tool Advanced tab:
•
Rotation Range7.2.2.6.1 Rotation Range
on page 115
•
Extra and Missing Edges7.2.2.6.2 Extra and Missing Edges
on page 116
•
Minimum Acceptance Level7.2.2.6.3 Minimum Acceptance Level
on page 116
•
Reject Threshold7.2.2.6.4 Reject Threshold
on page 116
•
Scaling Range7.2.2.6.5 Scaling Range
on page 117
•
on page 117
Advanced Tab
Rotation Range
These adjustments are used to set the maximum allowable rotation (0° to 180°) that a target pattern can have
and still be identifiable.
