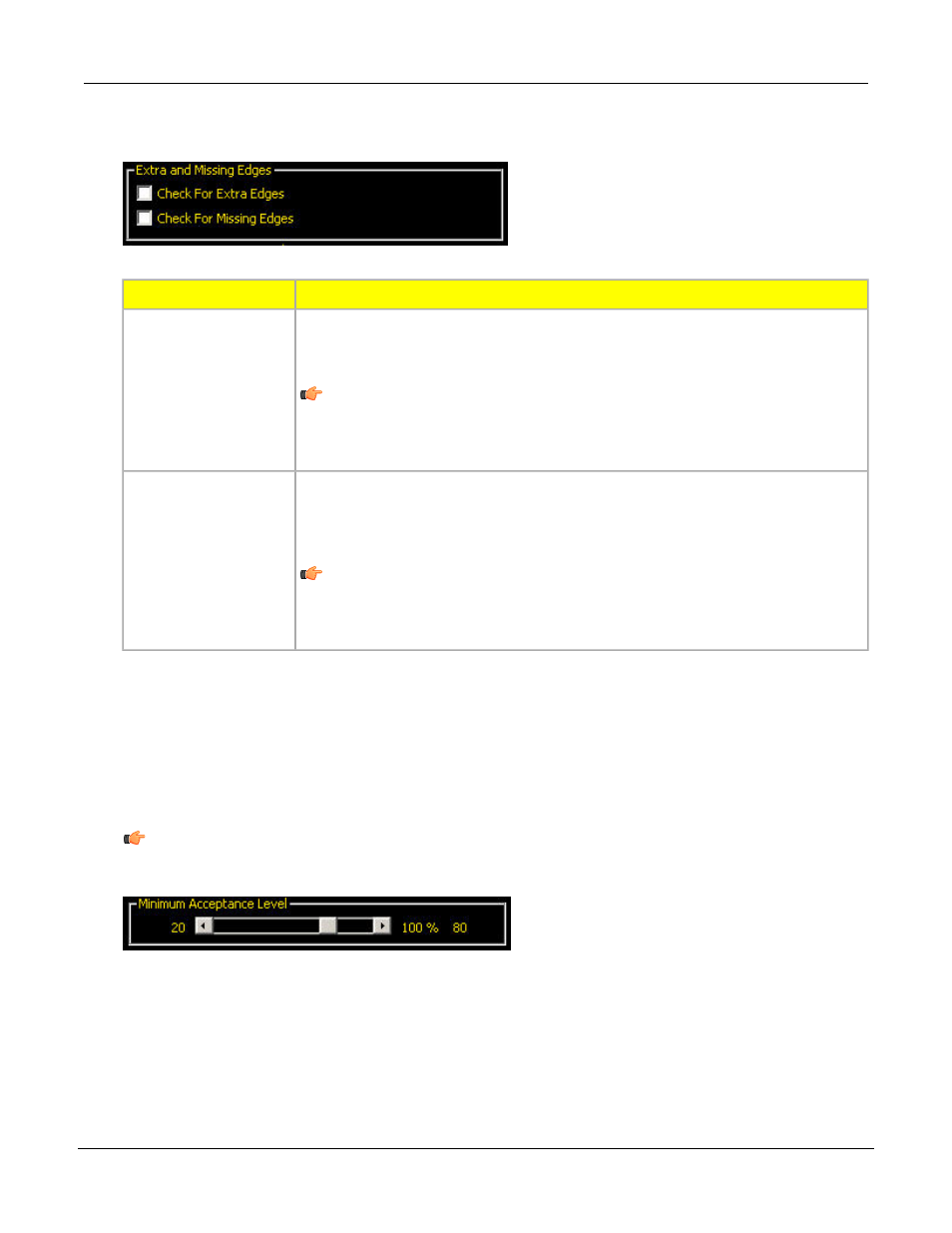

Extra and Missing Edges
Description Field
If left unchecked (disabled), the Sensor will find a target shape that might have
extra edges. If checked (enabled), the Sensor will not find a target shape that has
extra edges of a specified length. The size of the minimum edge length is adjustable. Extra Edges
Note: If checked, the application will not allow a minimum edge length to be
set below the number specified for Minimum Edge Length (in the Input tab )
for this tool.
If left unchecked (disabled), then the Sensor will find a target shape, even if it is
missing some edge content. If checked (enabled), then the Sensor will not find a Missing Edges
target shape that is missing edges of a specified length. The size of the minimum
edge length to check for is adjustable.
Note: If checked, the application will not allow a minimum edge length to be
set below the number specified for Minimum Edge Length (in the Input tab )
for this tool.
Minimum Acceptance Level
This adjustment sets the acceptance level for pattern matches.
• Decrease the Minimum Acceptance Level to allow more variations in matching patterns.
• Increase the Minimum Acceptance Level to filter out patterns that contain small defects.
Percent match is a value between 20% and 100% that indicates the quality of the match (100% is a perfect
match; 20% is a slight match). The percent match can be used to detect large defects.
Note: Banner does not recommend setting the Minimum Acceptance Level below 70%.
Reject Threshold
These adjustments allow the user to set the “band of gray scale values” the tool uses to determine the threshold
when Adaptive Threshold is specified.
If the Low is set to zero (default) and the High is set to 255 (default), then all gray scale values within the
acquired image are used to determine the threshold.
