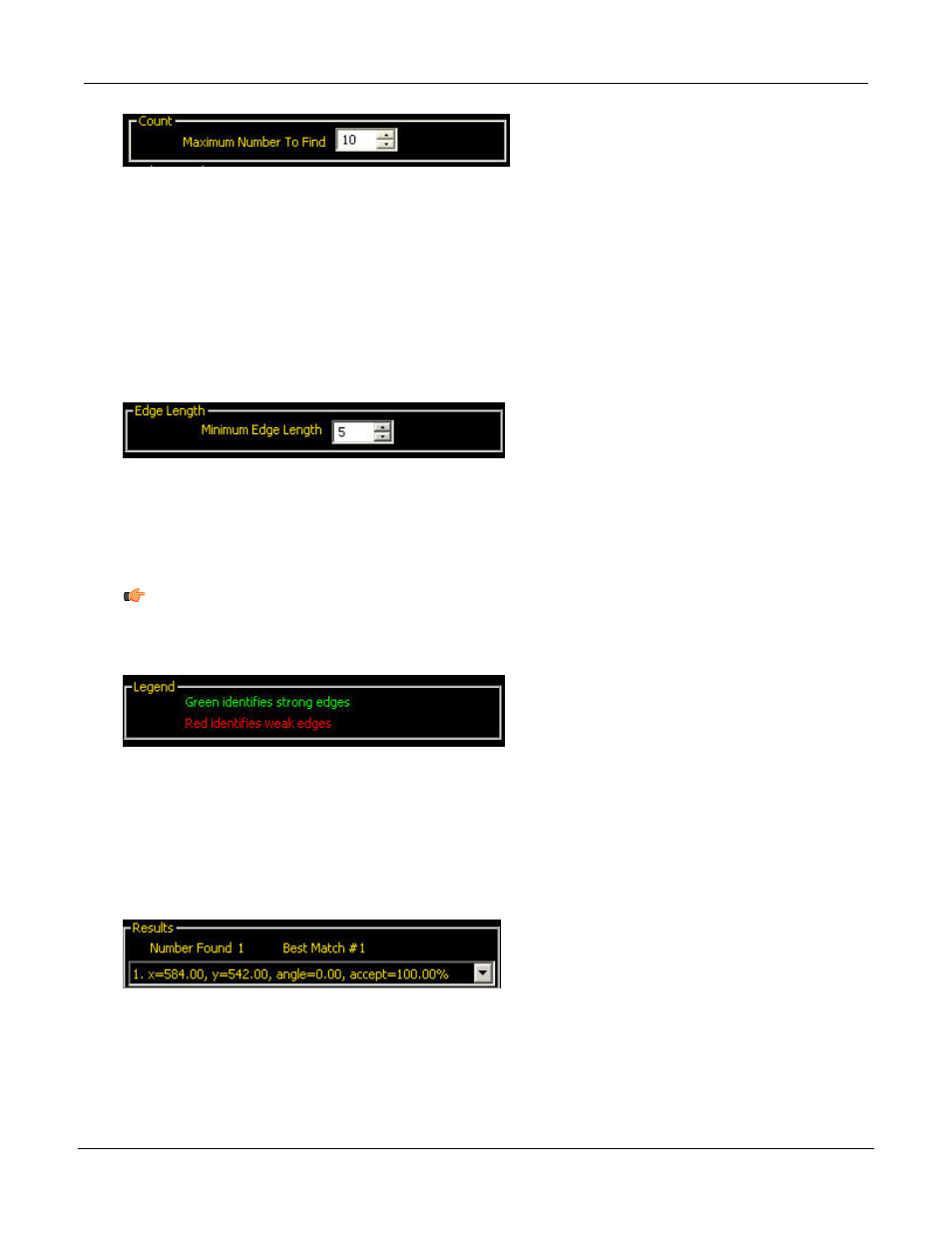

In the Maximum Number to Find field, enter the maximum number of outline patterns to find, or use the up
and down arrow keys to change the number.
The lower the number you enter, the faster the inspection time because the inspection will stop once it reaches
the selected number. The maximum number of outline patterns that the tool will find is 255.
Edge Length
The tool ignores target patterns with edges equal to or shorter than the specified number of pixels for edge
length.
Legend
All edges found by the Geometric Find tool are color-coded in the Image window. Strong edges show up in
green, and weak edges show up in red.
Note: Both weak and strong edges in the pattern ROI are expected to be present in the
inspection.
Results
The Results field returns the following:
• Total number of shapes above the minimum acceptance level.
• Position of each shape's center. The origin (0,0) is the upper-left corner of the screen.
Geometric Count Tool Advanced Tab
Fields in the Geometric Count Tool Advanced tab are described in the following.
Fields
