Determination curves window – Metrohm 757 VA Computrace User Manual
Page 105
5.4 Determination curves
757 VA Computrace – Software
95

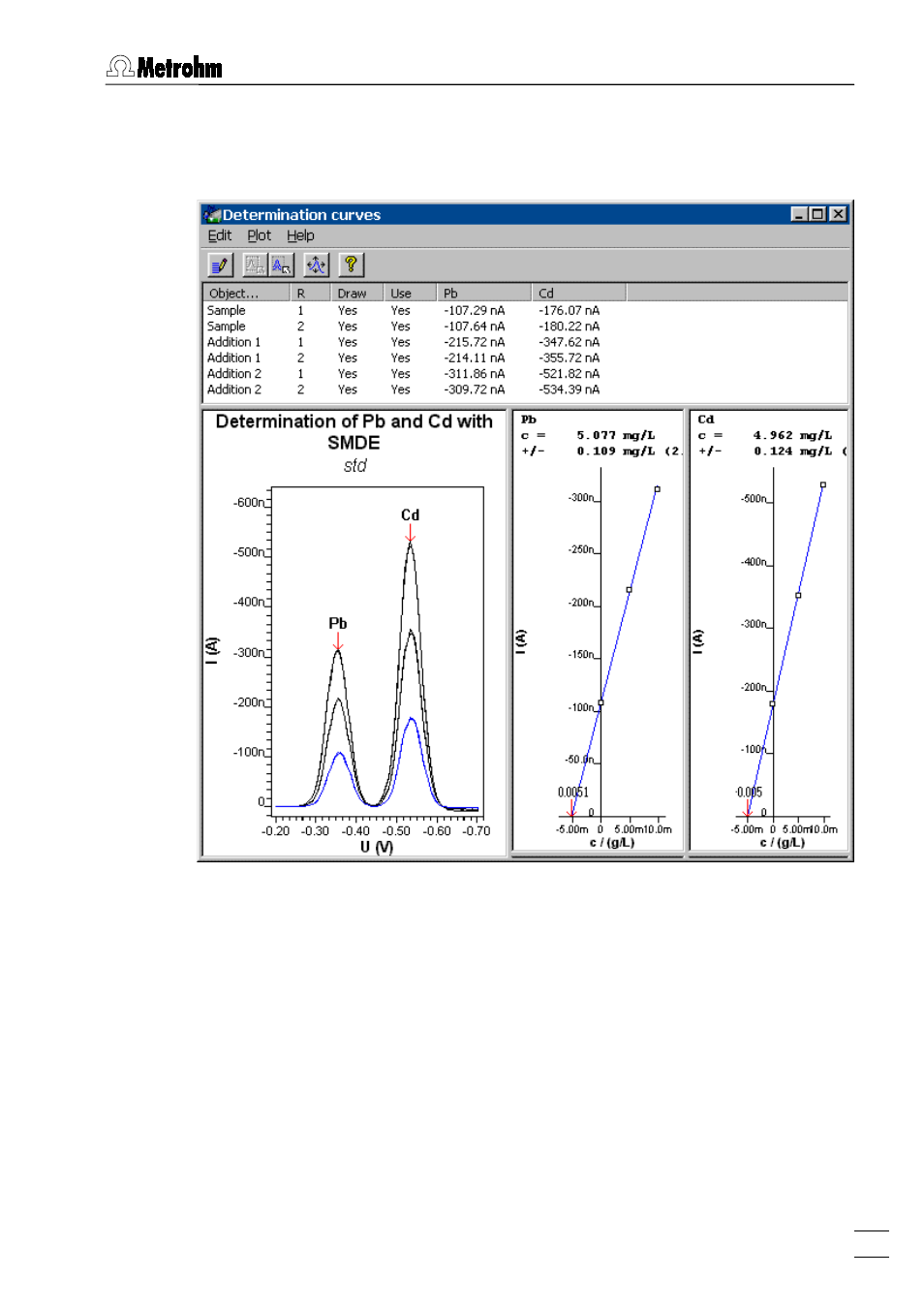

Determination curves window
The
DETERMINATION CURVES
window shows the determination
and calibration curves of the loaded determination.
The
DETERMINATION CURVES
window contains the following ten
subwindows which can be enlarged or reduced inside the
DE-
TERMINATION CURVES
window by moving the frames with the
mouse:
List of curves
The top subwindow lists all available curves of the determination
with the evaluated peak heights.
Determination curves
The lower left subwindow shows a single or all determination
curves.
Calibration curves
At the right side of the determination curves, there are eight sub-
windows for display of each substance calibration curve.
