LDAT-Series Integrated Linear Thrusters 57
Rockwell Automation Publication LDAT-IN001A-EN-P - August 2012
Accessories

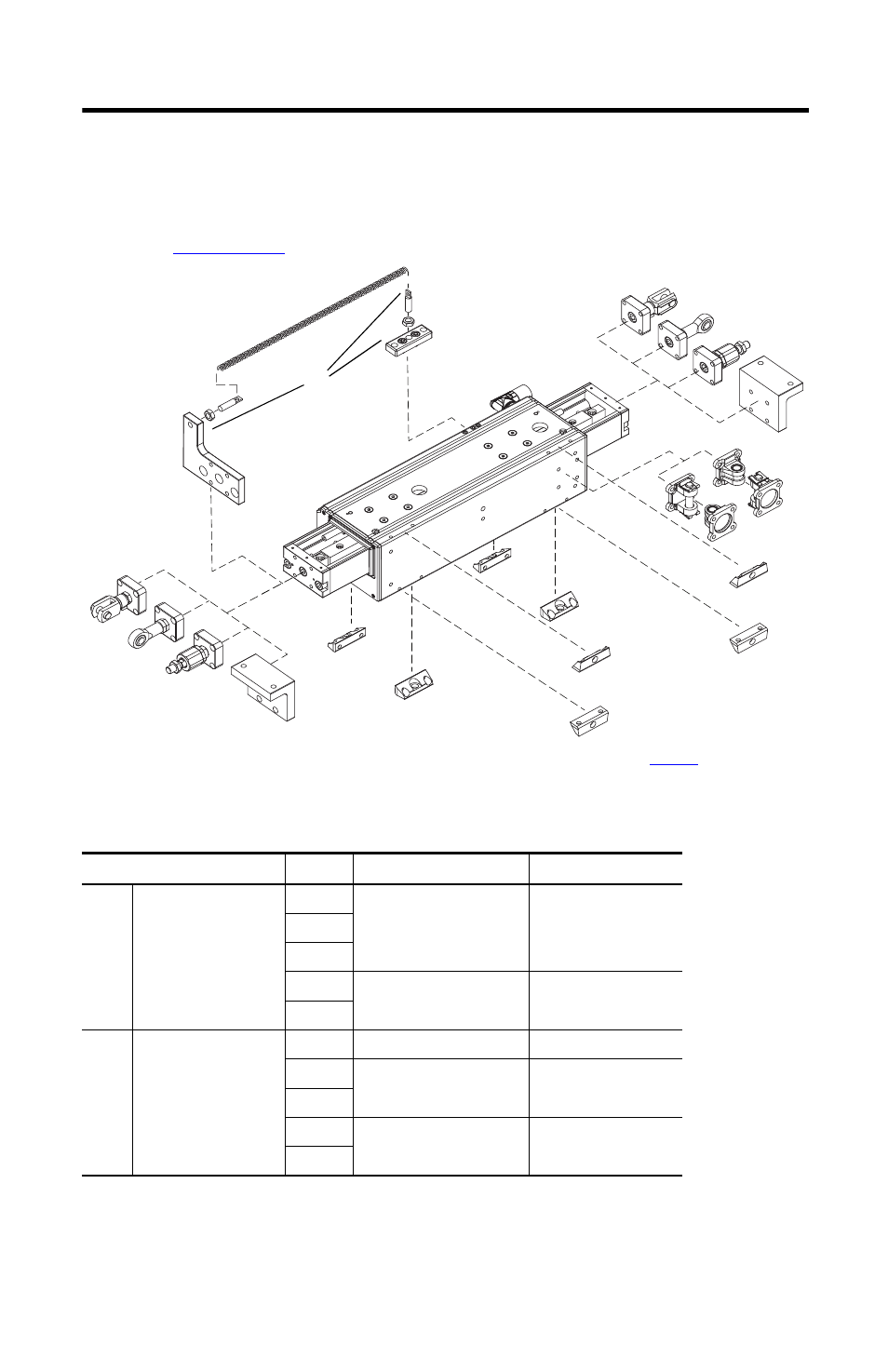

This diagram depicts the accessories available for the linear thrusters. Tables list the catalog
number and weight for each accessory. Refer to the Kinetix Linear Motion Technical Data,
publication
GMC-TD002 , for dimensions.
Mounting Accessories
Accessory Item Frame Cat. No. Weight, approx g (oz)
1 Foot Mount 30
LDAT-SMID-FTMOUNT 30 (1.06) 50
75
100
LDAT-SLARGE-FTMOUNT 40 (1.41)
150
2 Clevis, Male 30 LDAT-S03-CLVSM 100 (3.53)
50
LDAT-S0507-CLVSM 150 (5.29)
75
100
LDAT-S1015-CLVSM 370 (13.05)
150
Linear Thruster
LDAT-S07xxxx
and Accessories
3
4
6
5
6
5
1
2
7
1
1
1
2
3
4
7
8
Spring
(1)
(1) Size and purchase spring according to your application needs. Guidance provided in Kinetix Linear Motion Technical Data, publication GMC-TD002 .
