14 LDAT-Series Integrated Linear Thrusters
Rockwell Automation Publication LDAT-IN001A-EN-P - August 2012
If installing a counterbalance kit, install counter balance end bracket between slider end
cap and slider-end accessory. Complete counter balance kit installation by following
steps in
Install Counterbalance Kit on page 14 .
Install Counterbalance Kit
Follow these steps to install the counter balance kit.
Unless otherwise noted, torque specifications have a ±20% tolerance.

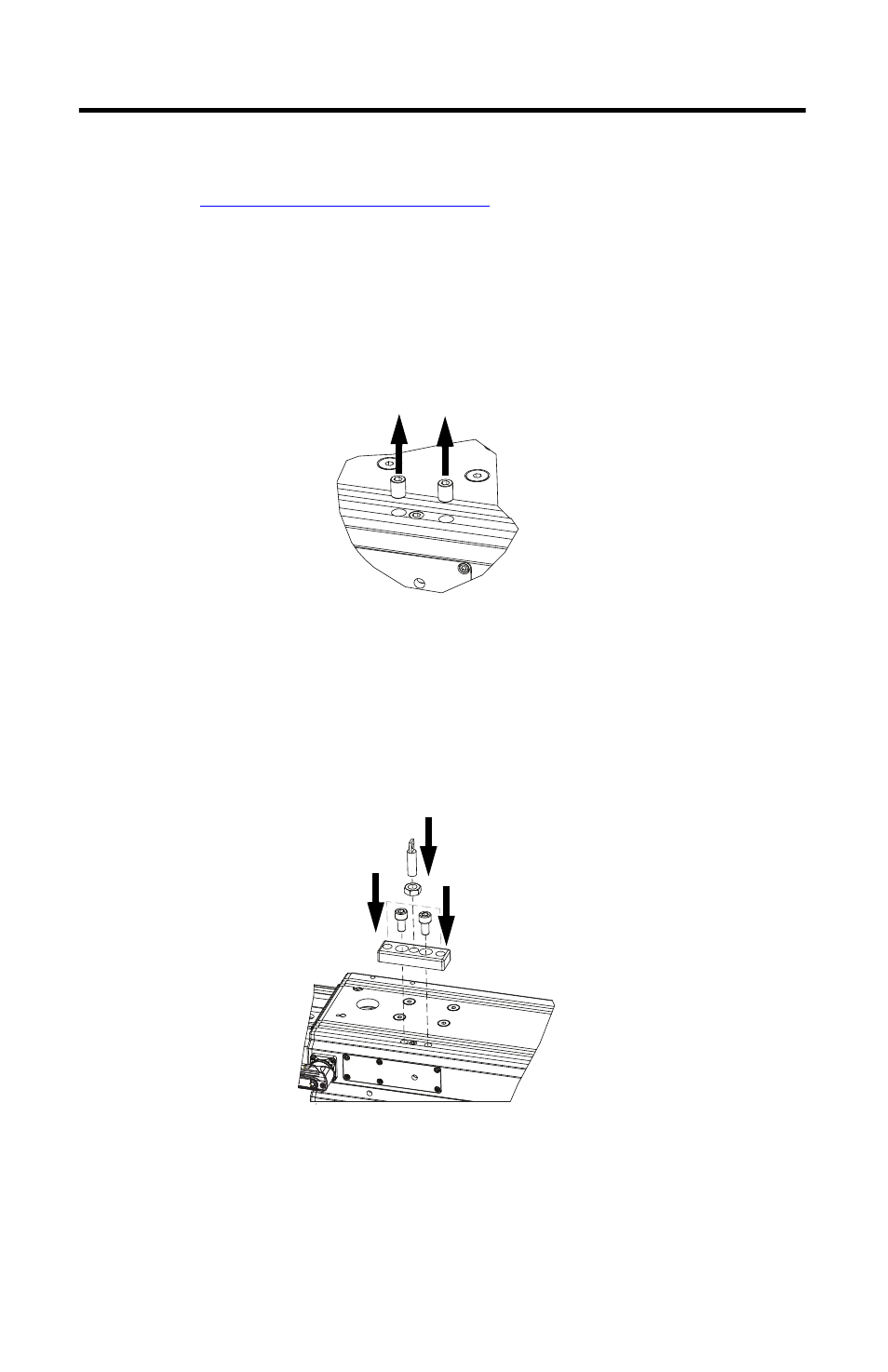

1. Remove M8 set screws from stator body.
2. Install stator bracket with two M8 x 1.25 x 16 socket head cap screws (SHCS).
Torque screw to 19.2 N•m (14.2 lb•ft).
3. Screw one 3/8 in. hex nut onto a spring anchor.
4. Install hex nut and spring anchor assemble in one of the three threaded mount locations.
Torque nut to 33.9 N•m (25.0 lb•ft).
5. Remove three screws that secure the slider-end cap and discard.
