Page 93
Appendix C
Publication 2755-6.2

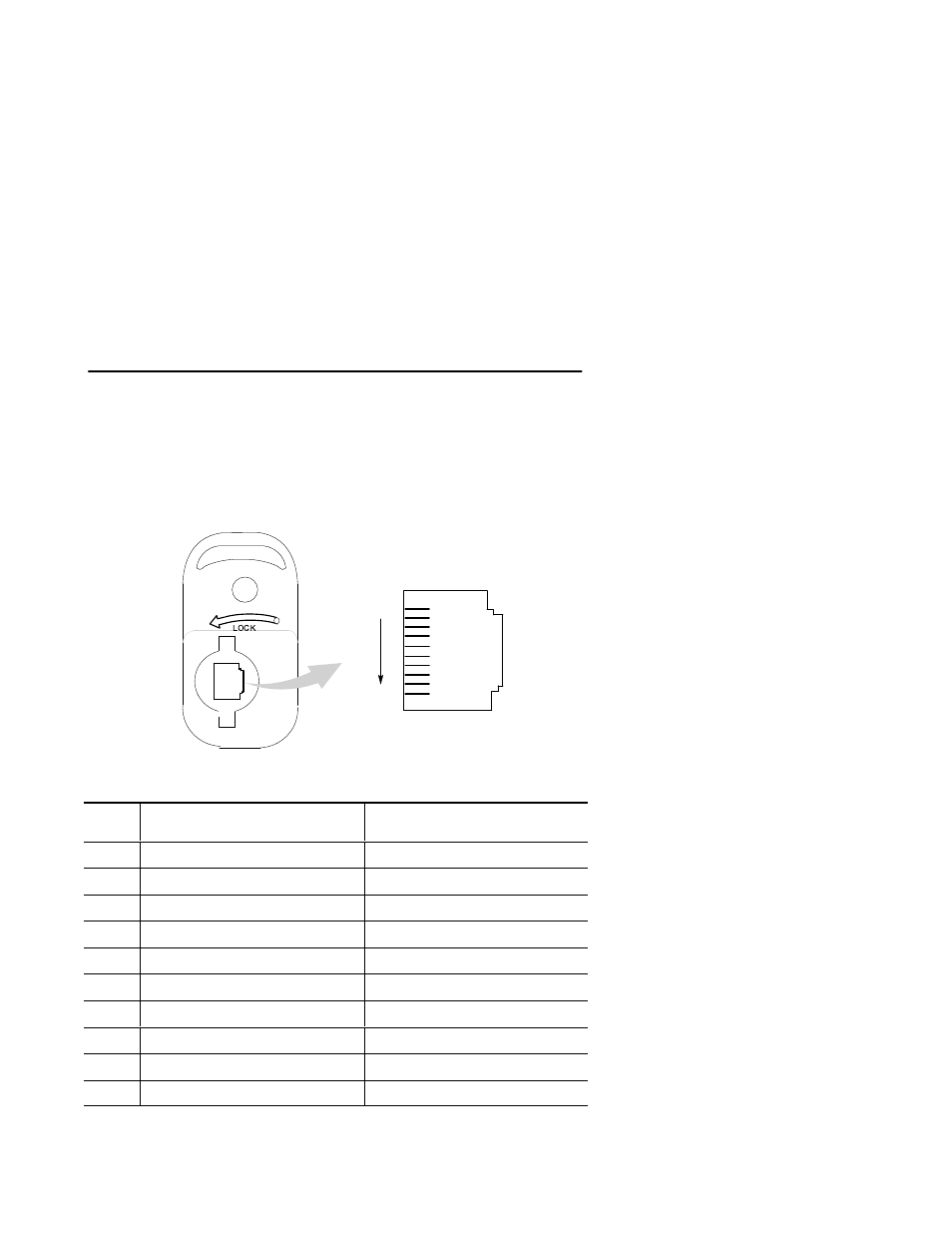

Scanner Pinout Connections
Pin #1
Pin #10
Pin
Function
AdaptaScan Pass Through Cable
Function
Synapse Cable
1
Not Used
Not Used
2
Power Input (4.8 to 14V DC).
Power Input (4.8 to 14V DC).
3
Power and signal ground.
Power and signal ground.
4
RTS Output
Not Used
5
Receive Data (RxD) Input
Not used
6
Not Used
ZIF Clock
7
DTR Output
Not Used
8
Transmit Data (TxD) Output
Not Used
9
CTS Input
Not Used
10
Not Used
ZIF Data
