Scanner to slc application – Rockwell Automation 2755 Decoded Hand-Held Scanner User Manual
Page 35
Connecting and Operating Scanner
2-16
Publication 2755-6.2

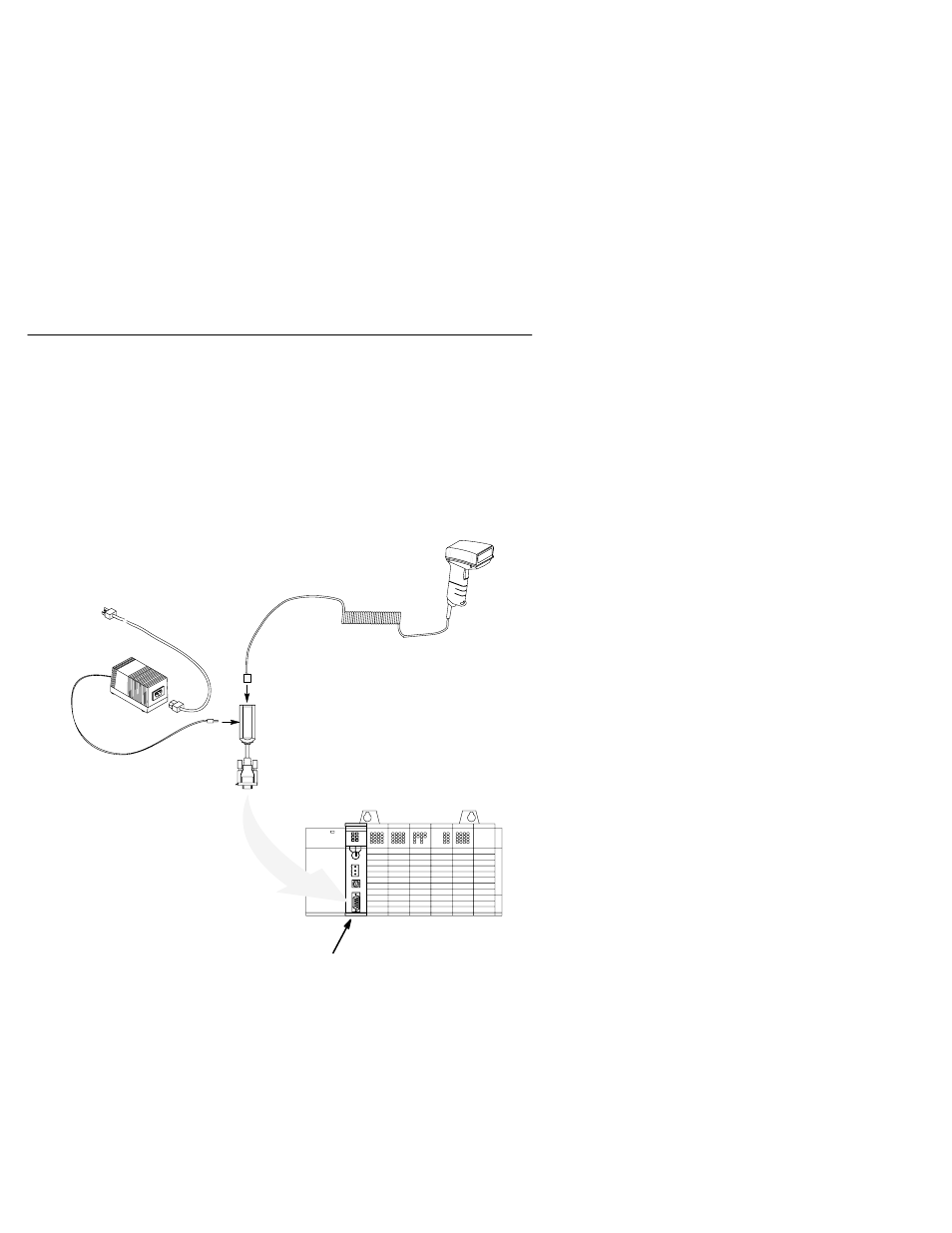

Scanner to SLC Application
Use the 9-Pin RS-232 Synapse cable (Catalog No. 2755-HFC-SR3-01) to
connect the scanner cable to the channel 0 port on an SLC-5/03 or 5/04.
The channel 0 port must be configured for RS-232 communications.
SLC 5/04
Channel 0
To Channel 0 Port
Power Supply
Scanner Cable
RS-232 Synapse Cable
(2755-HFC-SR3-01)
Scanner
Note: The power supply
should be connected last.
Refer to the user manuals for the Allen-Bradley Advanced Programming
Software (APS) to make sure the channel 0 settings match the Synapse
cable settings.
