Connecting and Operating Scanner 2-12
Publication 2755-6.2

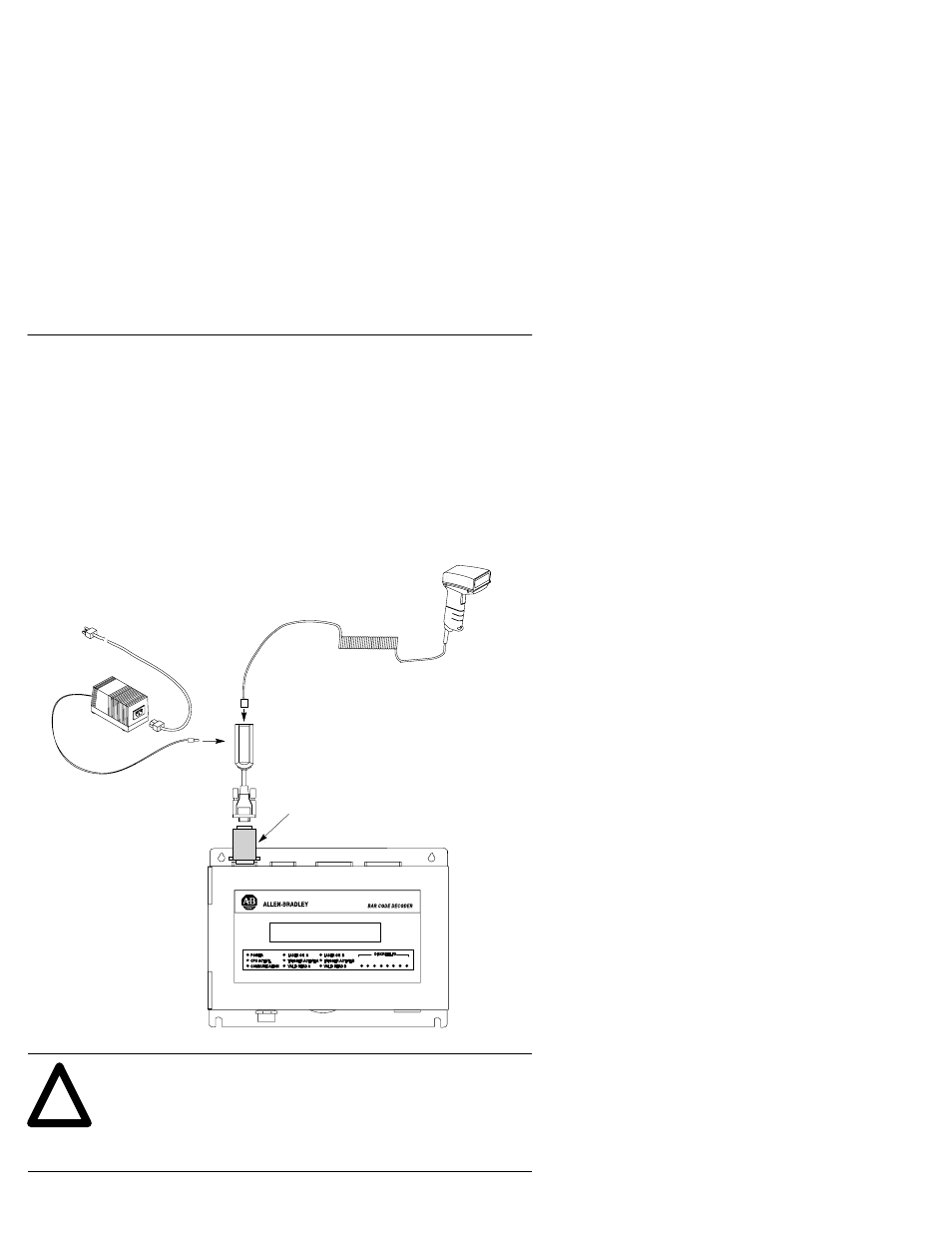

Scanner to Enhanced Decoder Scanner Port Application
Use the Scanner Emulation Synapse cable (Catalog No.
2755-HFC-SA1-01) and Gun Adapter (Catalog No. 2755-NC16, Series
B) to connect the scanner cable to a scanner port on the Allen-Bradley
Enhanced Decoders (2755-DS1/DD1).
Gun Adapter
(Catalog No. 2755-NC16 Series B)
Power Supply Scanner Cable
Scanner Emulation Synapse Cable
(2755-HFC-SA1-01)
Scanner
Allen-Bradley
Enhanced Decoder
(2755-DS/DD)
Note: The power supply
should be connected last.
!
ATTENTION: Use the Series B Gun Adapter (Catalog
No. 2755-NC16, Series B). The Series A Gun Adapter was
designed for earlier versions of the hand-held scanners
(such as 2755-G2, -G3) and will not work with the new
hand-held scanners.
