Rockwell Automation 2755 Decoded Hand-Held Scanner User Manual
Page 28
Connecting and Operating Scanner
2-9
Publication 2755-6.2

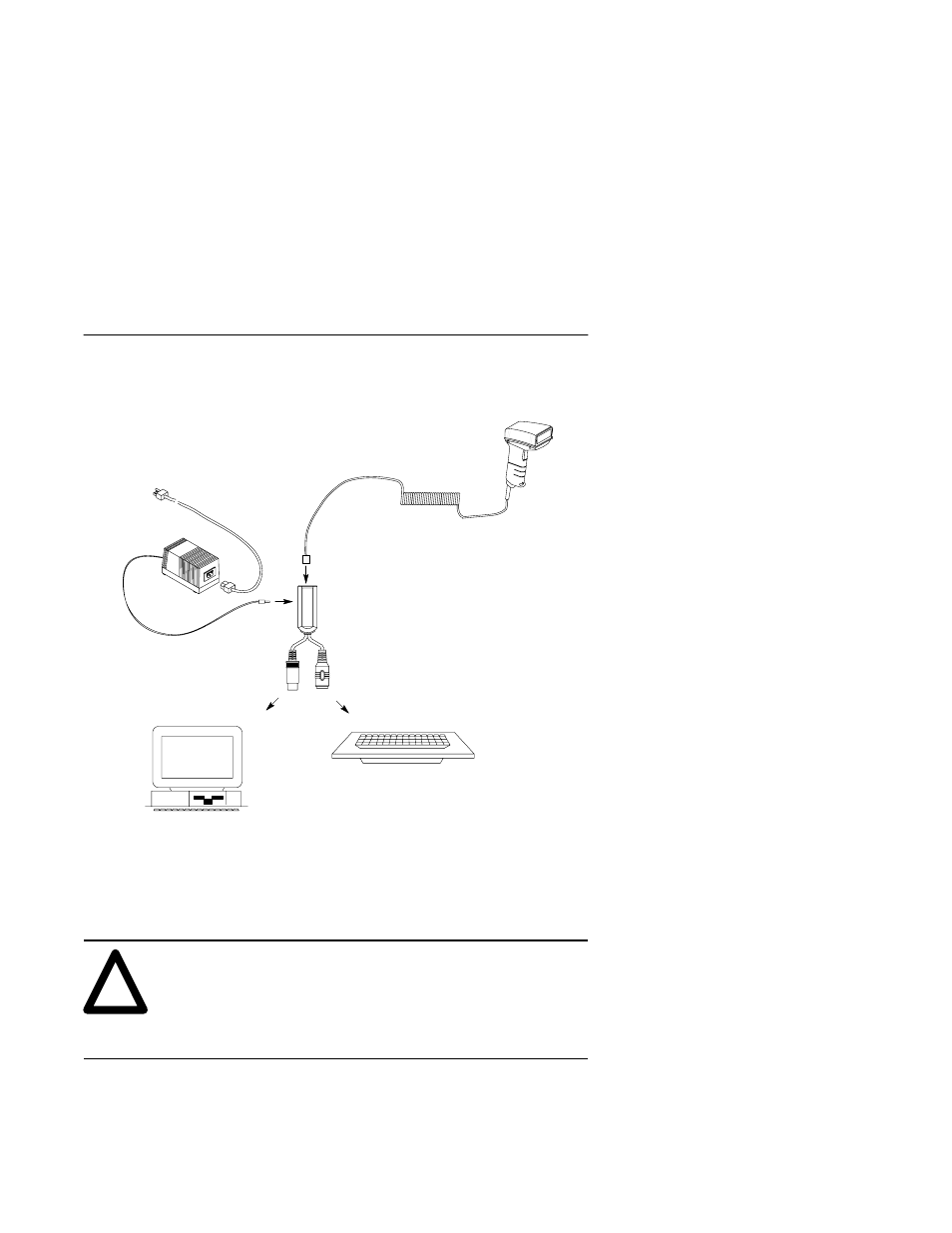

To Host
Keyboard Connector
Power Supply
(May not be required
see previous page.)
Scanner Cable
Wedge Synapse Cable
(2755-HFC-SP1-01 shown)
Scanner
To Keyboard
Note: The power supply
should be connected last.
To connect the scanner cable to the keyboard wedge cable, push the
cable into the connector until you hear the connector snap in place. To
remove the scanner cable, press down on the small raised bump on the
connector end and remove cable.
!
ATTENTION: Do not install the wedge cable or
disconnect/connect the keyboard with power applied to
either the wedge cable or host device. Failure to follow
this caution may result in damage to the scanner, wedge
interface cable, or host device.
The wedge Synapse cable connects between the keyboard and the host
device. Unplug the keyboard and connect one end of the wedge cable to
the host keyboard input. Connect the other end of the wedge interface
cable to the keyboard.
