Rockwell Automation 2755 Decoded Hand-Held Scanner User Manual
Page 22
Connecting and Operating Scanner
2-3
Publication 2755-6.2
Scanner to Synapse Cable or
AdaptaScan Pass Through Cable
The scanner to synapse cable (Catalog No. 2755-HDC-GS1-08, -20) or
AdaptaScan Pass Through cable (Catalog No. 2755-HDC-GA2-08)
connect to the bottom of the scanner handle.

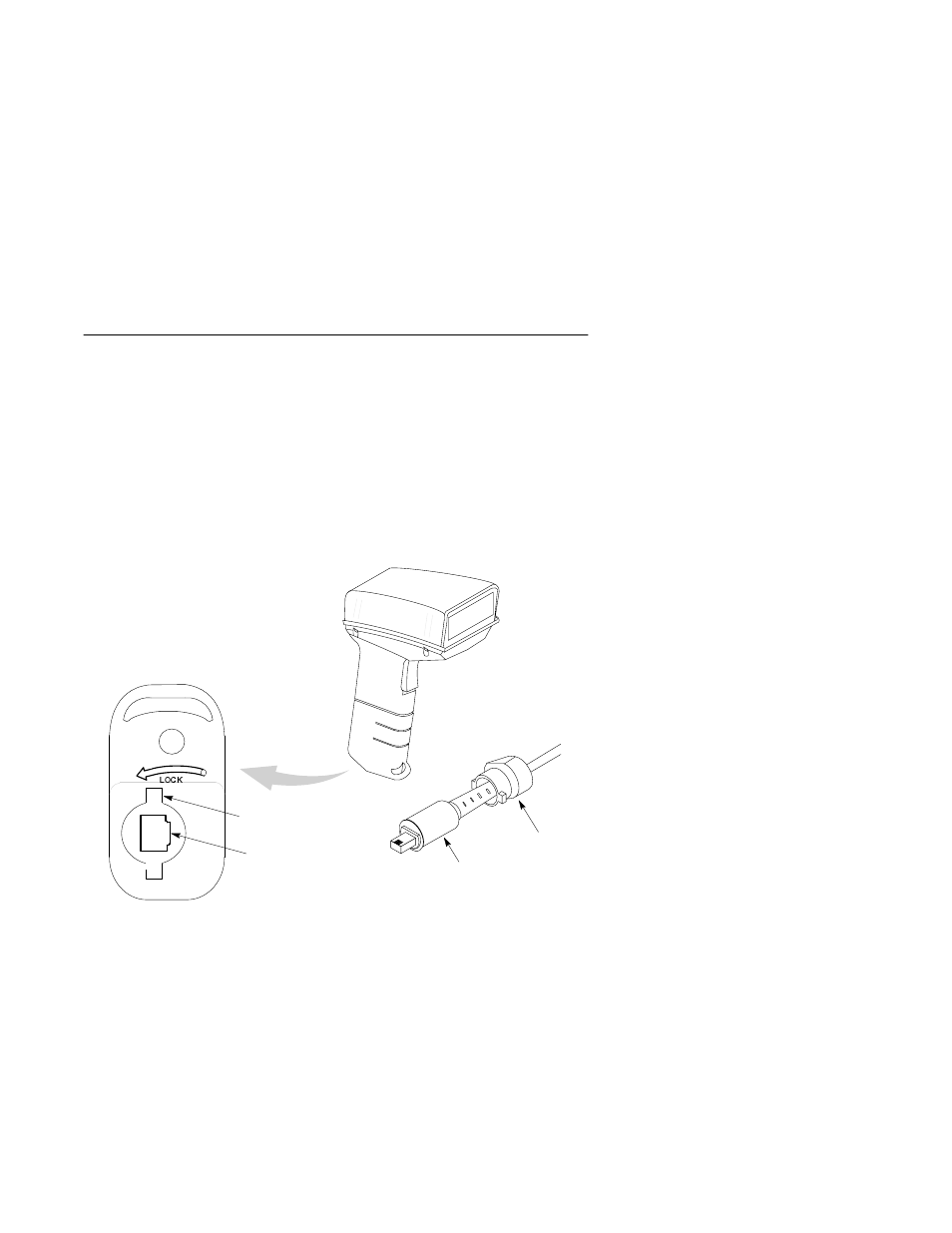

Connector
Slot for Tab on Collar
Cable Connector
Locking Collar
To attach the cable to the scanner.
1. Pull back the locking collar from the connector.
2. Insert the cable connector into the scanner.
3. Align the tabs on the locking collar with the slots on the handle.
4. Push in and turn the locking collar counterclockwise to lock.
Connector is locked when flat edge of locking collar aligns with the
flat edge of the scanner handle.
Remove a scanner cable from a scanner by rotating the locking collar
clockwise until the cable can be pulled out of the scanner.
