Connecting and Operating Scanner

2-10

Publication 2755-6.2

AdaptaScan Pass Through Cable Connection

The standard Pass Through cable has a 25 pin male DB connector.
When connecting the cable to an AdaptaScan RS-232 terminal block,
you will need to attach an unterminated cable with a female 25 pin DB
connector on one end. Power for the scanner is provided by the package
detect terminal block connector.

Important: Power for the scanner (from Package Detect terminals) is
not provided until the Reader is installed on the wiring base.

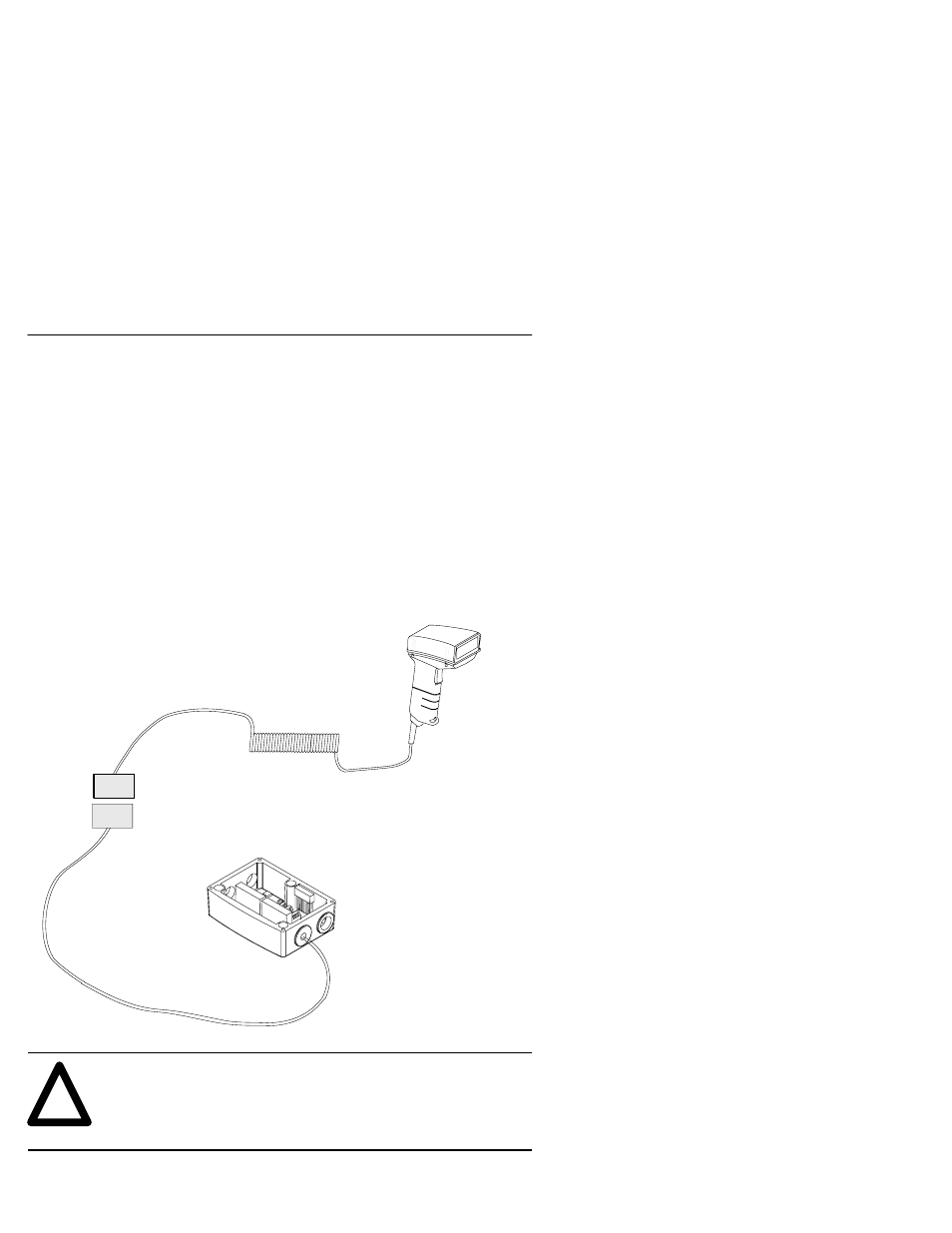

AdaptaScan Pass Through Cable

Scanner

Custom Cable (see next page)

AdaptaScan Wiring Base

ATTENTION: Turn off all power to the AdaptaScan
wiring base before making cable connections. Failure to
follow this caution could result in electrical shock and/or
damage to the scanner or AdaptaScan wiring base.
