Keyboard wedge synapse cable connections – Rockwell Automation 2755 Decoded Hand-Held Scanner User Manual
Page 27
Connecting and Operating Scanner
2-8
Publication 2755-6.2

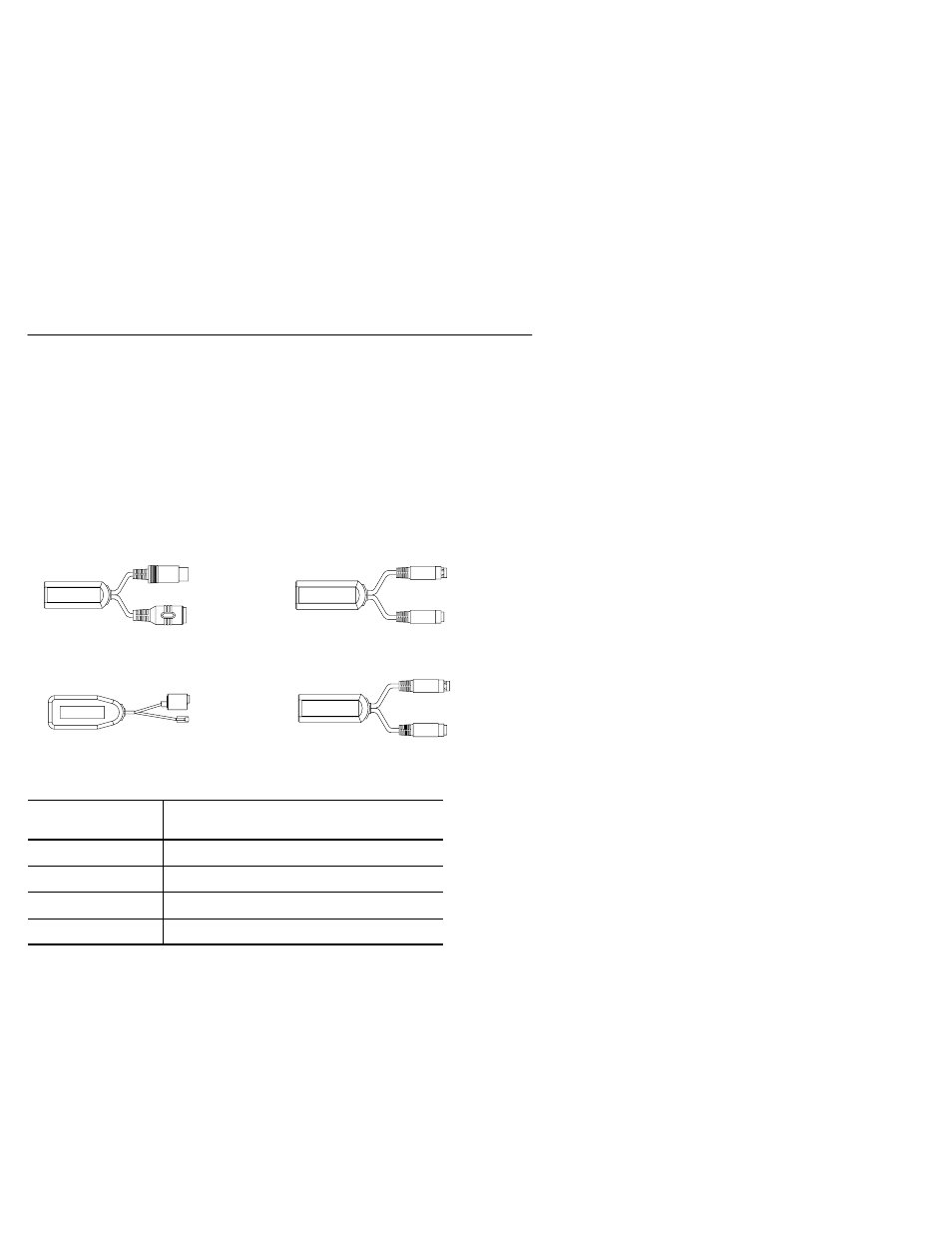

Keyboard Wedge Synapse Cable Connections
Use the keyboard wedge Synapse cable to connect the scanner between a
keyboard and a host device. The host device interprets the decoded
scanner output the same as keyboard data. Four types of keyboard
wedge Synapse cables are available:
Catalog No. 2755-HFC-SP1-01
Catalog No. 2755-HFC-SP2-01
Catalog No. 2755-HFC-SV1-01
Catalog No. 2755-HFC-SV2-01
Keyboard Wedge
Synapse Cable
For Keyboard Type:
2755-HFC-SP1-01
IBM AT/XT Keyboard (5-pin DIN)
2755-HFC-SP2-01
PS/2 Keyboard (6-pin Mini-DIN)
2755-HFC-SV1-01
DEC VT220/320/420
2755-HFC-SV2-01
DEC VT520
A separate power supply plugs into the Synapse cable and provides
power to the scanner. The following wedge cable applications may not
require the power supply if the host provides adequate power for the
scanner (depends on system configuration):
•
IBM PC/AT
•
IBM PS / 2-50, 55SX, 60, 70, 80
•
IBM PC/XT and compatibles
•
IBM PS/2-30
