Publication 1797-6.5.1 - May 2005
How to Install Your FLEX Ex Analog Modules 3-7
6. For specific wiring information, refer to the installation instructions for
the module you are installing in this terminal base unit. Terminal
assignments are also given later in this chapter, see page 3-11.
7. Repeat the above steps to install the next terminal base.
8. Be sure the flexbus connector cover on the last terminal base is in place.
Panel/Wall Mounting
Installation on a wall or panel consists of:
• laying out the drilling points on the wall or panel
• drilling the pilot holes for the mounting screws
• mounting the adapter mounting plate
• installing the terminal base units and securing them to the wall or panel
If you are installing your module into a terminal base unit that is already
installed, proceed to Mounting the Analog Modules on the Terminal Base Unit
on page 3-9.

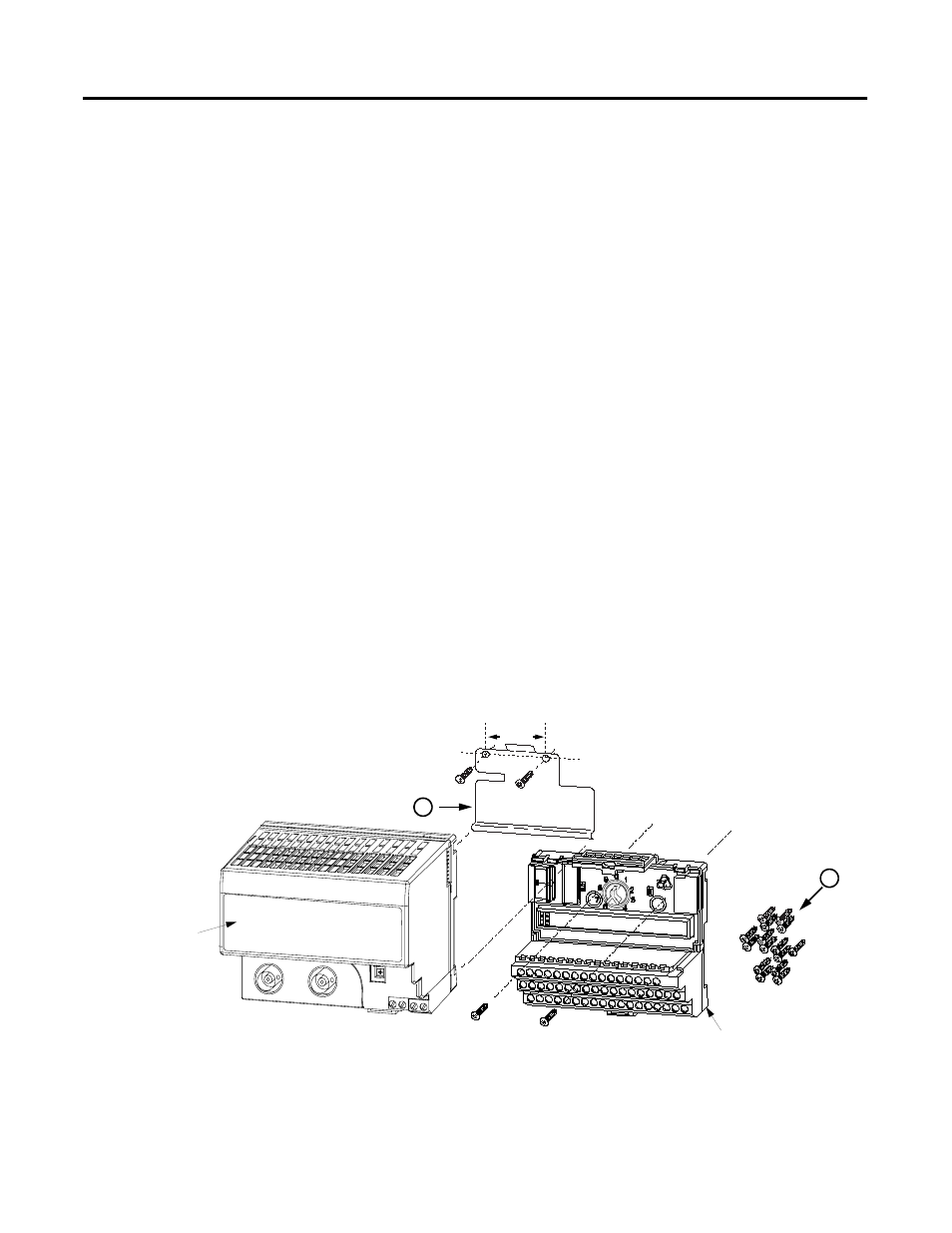

Use the mounting kit Cat. No. 1794-NM1 for panel/wall mounting.
41547
Adapter Module
(not included)
Terminal Base Unit
(not included)
1
2
1.4
(35.5)
1 - Mounting Plate for Adapter
2 - 18 #6 self-tapping screws
(2 for the adapter, and 2
each for up to 8 modules)
