Publication 1797-6.5.1 - May 2005
How to Install Your FLEX Ex Analog Modules 3-5
Mounting on a DIN Rail
1. Remove the cover plug in the male connector of the unit to which you
are connecting this terminal base unit.
2. Check to make sure that the 16 pins in the male connector on the
adjacent device are straight and in line so that the mating female
connector on this terminal base unit will mate correctly.
3. Make certain that the female flexbus connector is fully retracted into
the base unit.
4. Position the terminal base over the 35 x 7.5mm DIN rail A
(A-B pt. no. 199-DR1).
ATTENTION
Do not remove or replace a terminal base unit when power
is applied. Interruption of the flexbus can result in
unintended operation or machine motion.
A
A
41106

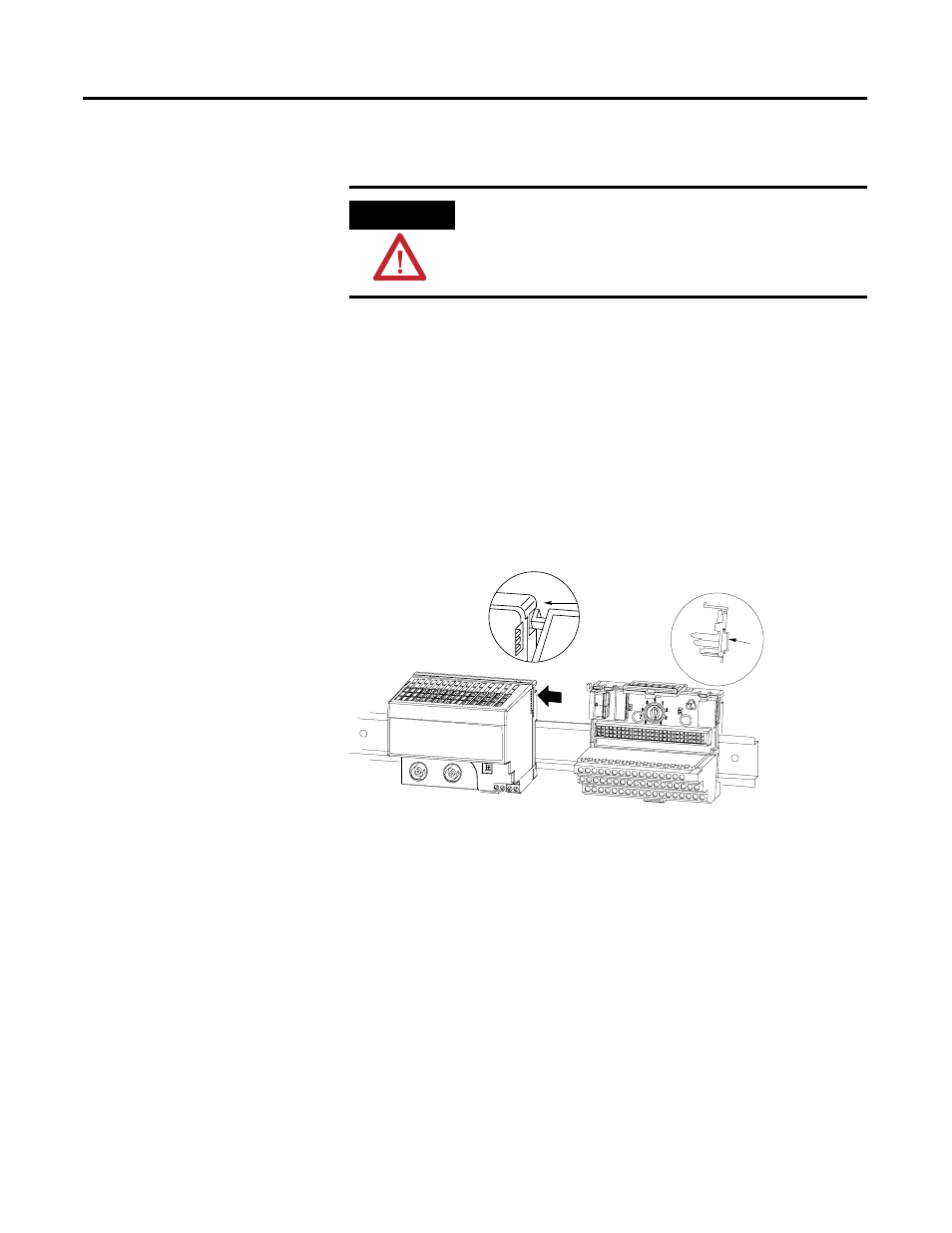

Position terminal base at a slight angle and
hooked over the top of the DIN rail A.
