12 Rockwell Automation Publication 2094-UM003A-EN-P - May 2012
Chapter 1 Start

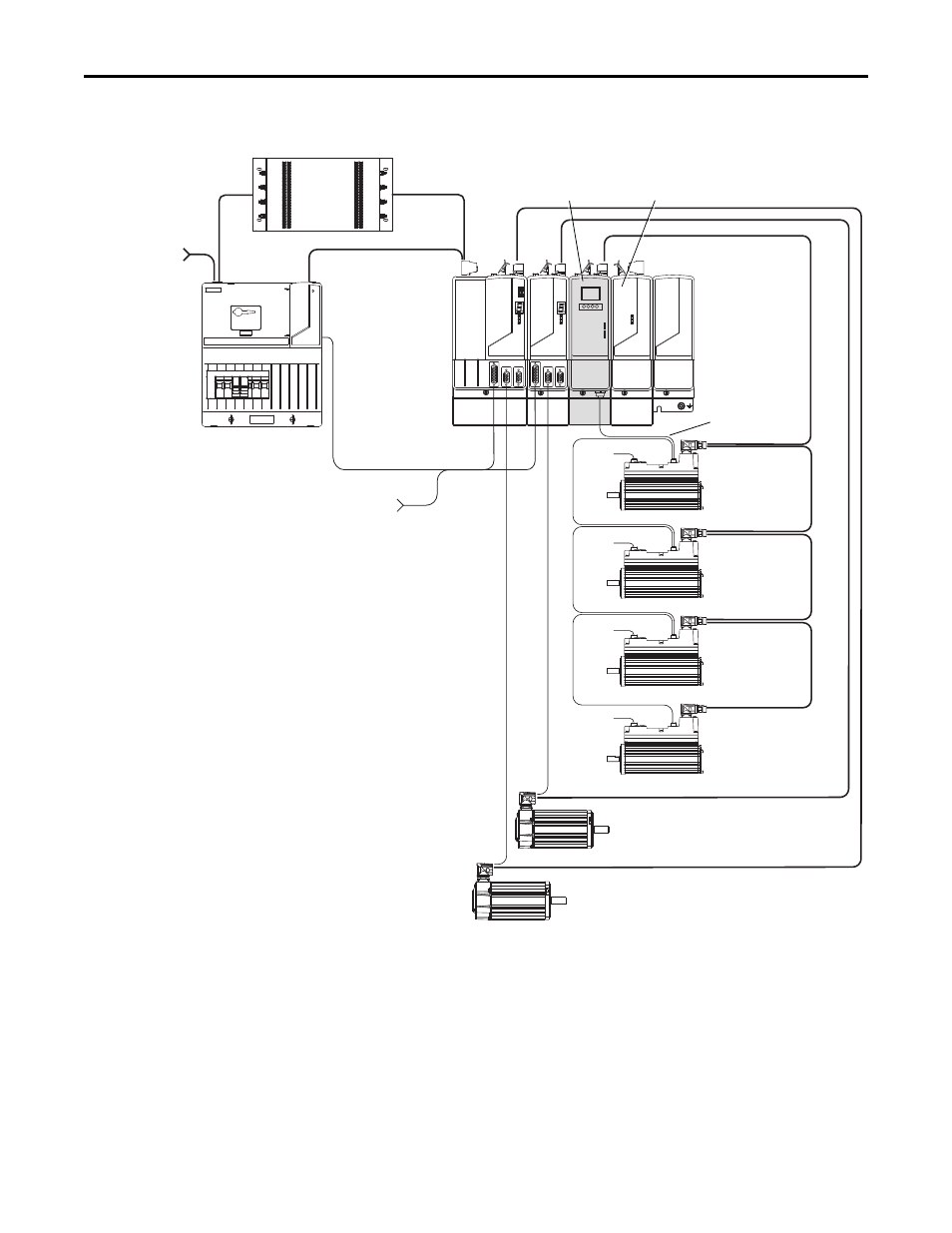

Figure 2 - Typical 2094 Power Rail with Kinetix 6000M System (with LIM)
MAIN VAC 2094-BLxxS
Line Interface Module
(optional component)
3-Phase
Input Power
2094-BSP2
Shunt Module
(optional component)
2090-XXLF-xxxx
AC Line Filter
(required for CE)
2094-PRSx
Power Rail
2094-PRF
Slot-filler Module
(required for
unused slots)
To Input Sensors
and Control String
Control Power
2090-K6CK-Dxxxx
Low Profile Connector
Kits for I/O, Motor
Feedback, and Aux
Feedback
Bulletin 2090
Motor Feedback Cables
Bulletin 2090
Hybrid Cables
Bulletin 2090
Network Cables
2094-SEPM-B24-S
IPIM Module
Bulletin 2090
Motor Power Cables
MDF-SBxxxxx
IDM Unit
MDF-SBxxxxx
IDM Unit
MDF-SBxxxxx
IDM Unit
MDF-SBxxxxx
IDM Unit
Digital
Inputs
Digital
Inputs
Digital
Inputs
Digital
Inputs
2094 Drive System
(Kinetix 6000 shown)
2090-CTHP8, 2090-CTSRP terminators required on last IDM unit.
