Appendix D
Dimensions
D–3

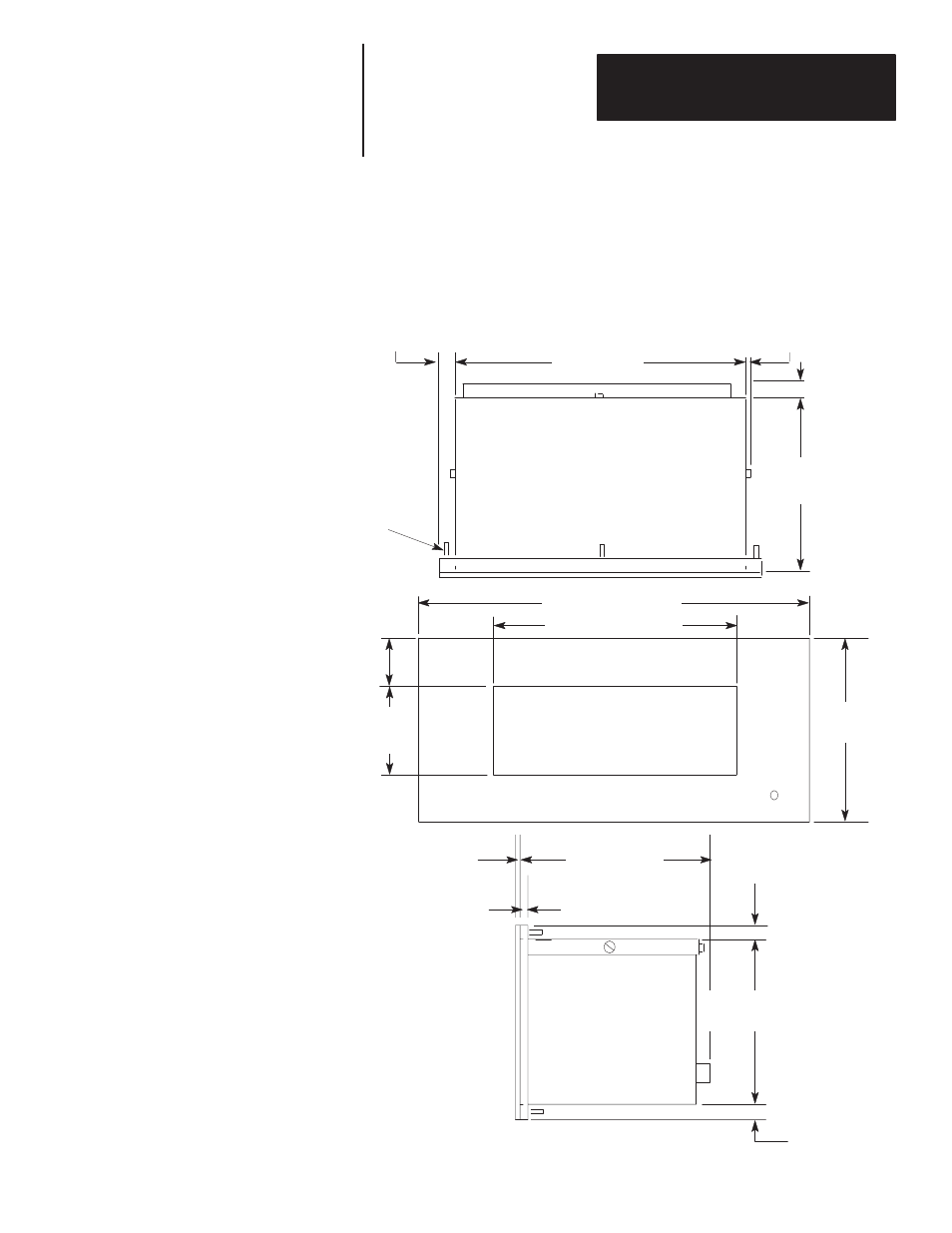

Figure D.3 provides the overall dimensions of the four line DL20.
Figure D.3
Four Line DL20 Dimensions
2.94
(74.7 mm)
1.63
(41.4 mm)
6.18
(157.0 mm)
14.37 (365.0 mm)
Front View
Side View
0.099 (2.5 mm)
(PANEL THICKNESS)
0.125 (3.2 mm)
(GASKET THICKNESS)
7.37
(187.2 mm) 0.53
(13.5 mm)
5.12
(130.0 mm)
13.30
(337.8 mm)
6.65
(168.9 mm)
Top View
0.72
(18.3 mm)
0.12 Typ.
(3.0 mm)
Six
Mounting
Studs
0.53
(13.5 mm)
8.83 (224.3 mm)
Dimensions Inches (Millimeters)
0.53
(13.5 mm)
