Dimensions
This appendix provides the approximate dimensions for DL20s.

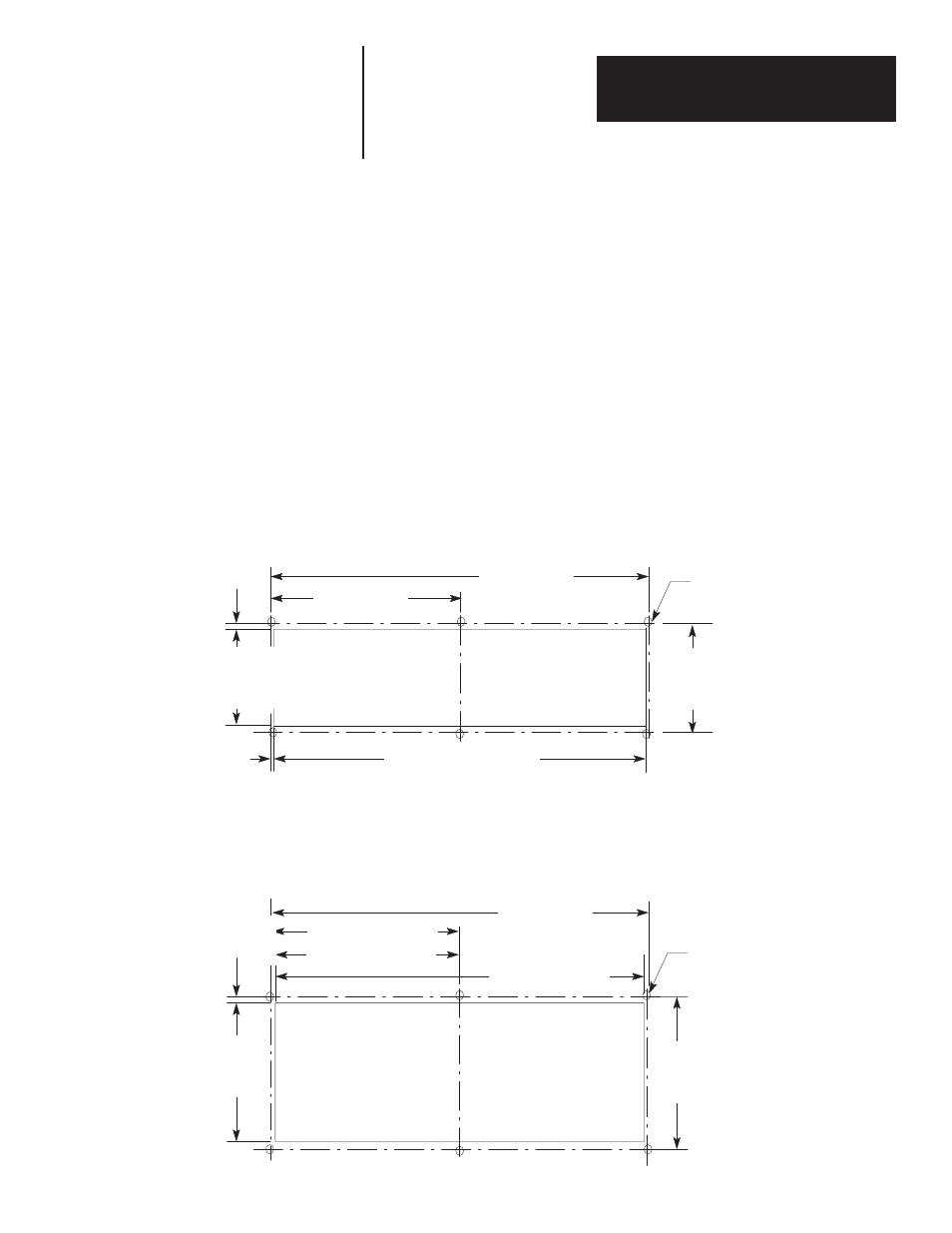

Figure D.1 provides the dimensions for the panel cut out.
Figure D.1
Panel Cut Out Dimensions
13.62 (345.9 mm)
Cut Out
6.94
(176.1mm)
5.30
(134.6 mm)
Cut Out
5.68
(144.3 mm)
0.25 (6.4 mm)
DIA. HOLE (6 PLACES)
NOTE: HOLES MAY BE
DRILLED SMALLER AND
TAPPED FOR NO. 10
HARDWARE.
3.88
(98.4 mm)
0.13
(3.1 mm)
0.19
(4.8 mm)
13.87
(352.3 mm)
3.50
(88.9 mm)
Cut Out
0.25 (6.4 mm)
DIA. HOLE (6 PLACES)
NOTE: HOLES MAY BE
DRILLED SMALLER AND
TAPPED FOR NO. 10
HARDWARE.
6.94 (176.1mm)
13.87
(352.3 mm)
6.81 (173.0 mm)
0.19
(4.8 mm)
Four Line DL20 Display
13.62 (345.9 mm)
Cut Out
One and Two Line DL20 Displays
