Monitoring with the device failure table – Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 67
DeviceNet Seminar Lab Exercises
67
Publication 1787.6.1 - August 1997
Monitoring with the
Device Failure Table
Follow these directions to monitor the device failure table using RSLogix
500 software.

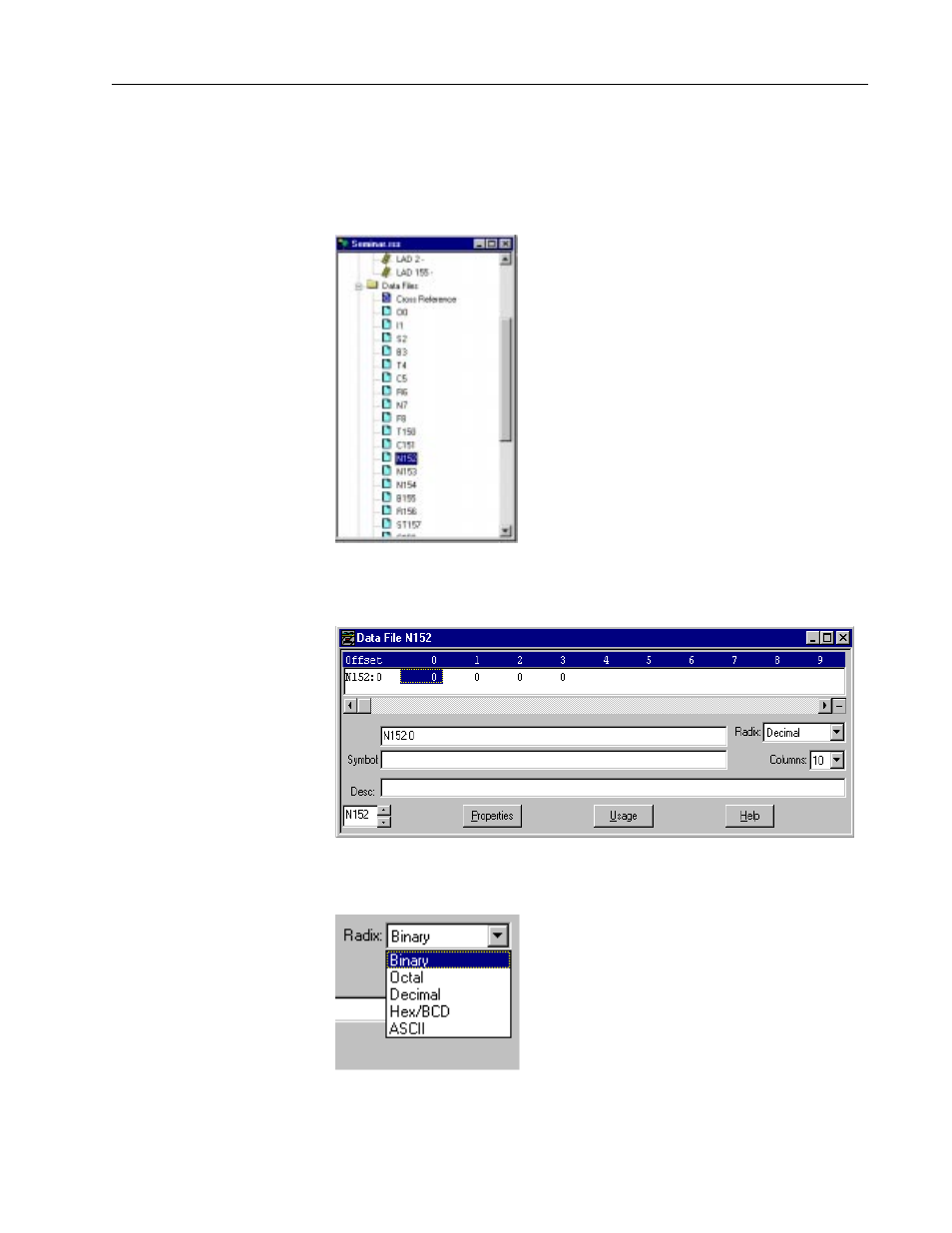

1. From Data Files, scroll down the list and choose N152 by double clicking.
You see this screen.
2. Change the radix to binary format.
