62 DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

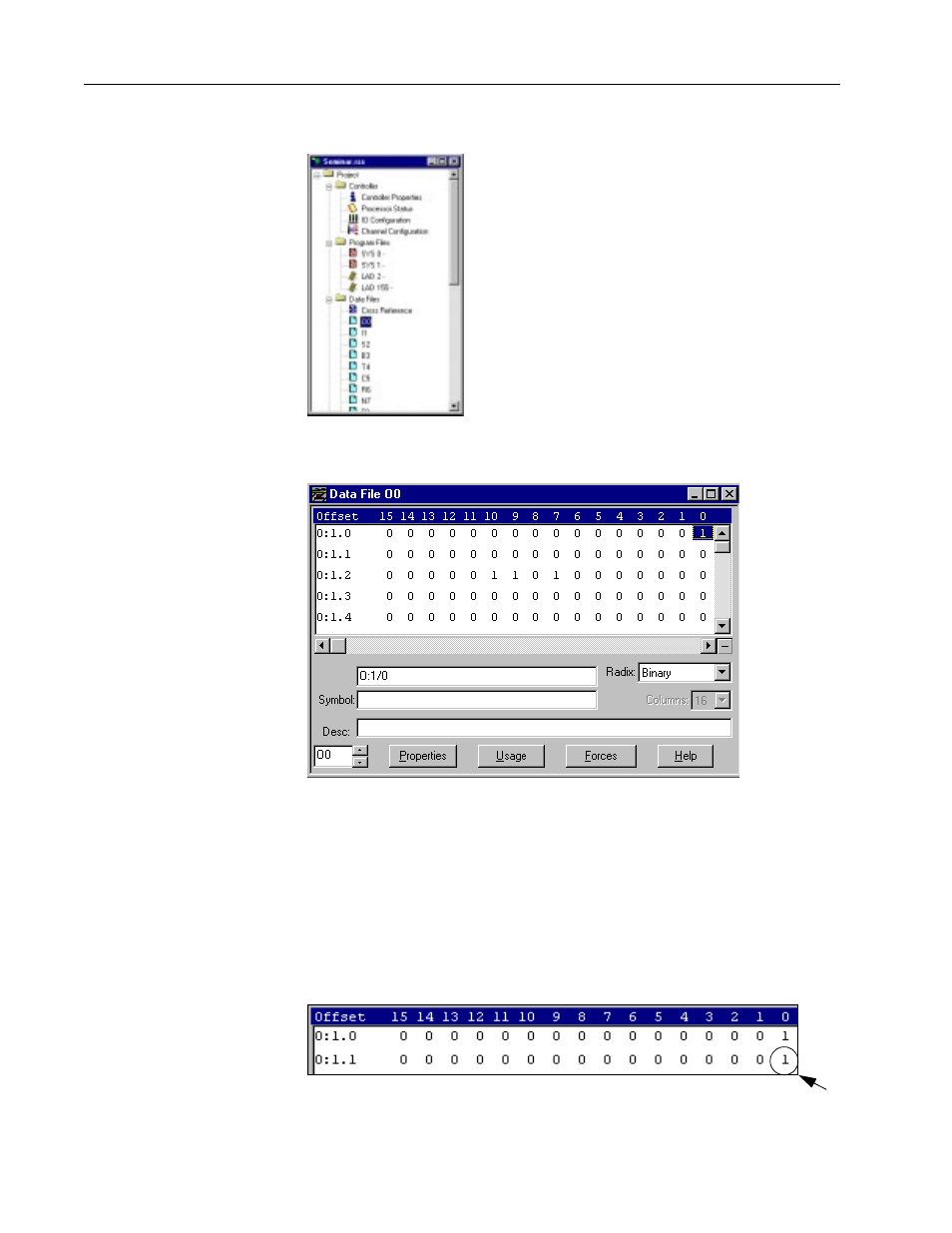

1. From Data Files, choose O0 by double clicking.
You see this screen.
2. Rotate the selector switch counter-clockwise until an amber 0 is
illuminated on the 1794-IB16.
3. Press the RediSTATION operator interface’s Start button.
Notice in O:1.1 that bit 0 goes to a 1 and the RediSTATION operator
interface’s light is on. This bit is directly mapped to the RediSTATION
operator interface’s light. When O:1.1, bit 0, is a 1 the light will be on
and when it is a 0 the light will go off.
4. Press the RediSTATION operator interface’s Stop button.
