DeviceNet Seminar Lab Exercises 23
Publication 1787.6.1 - August 1997

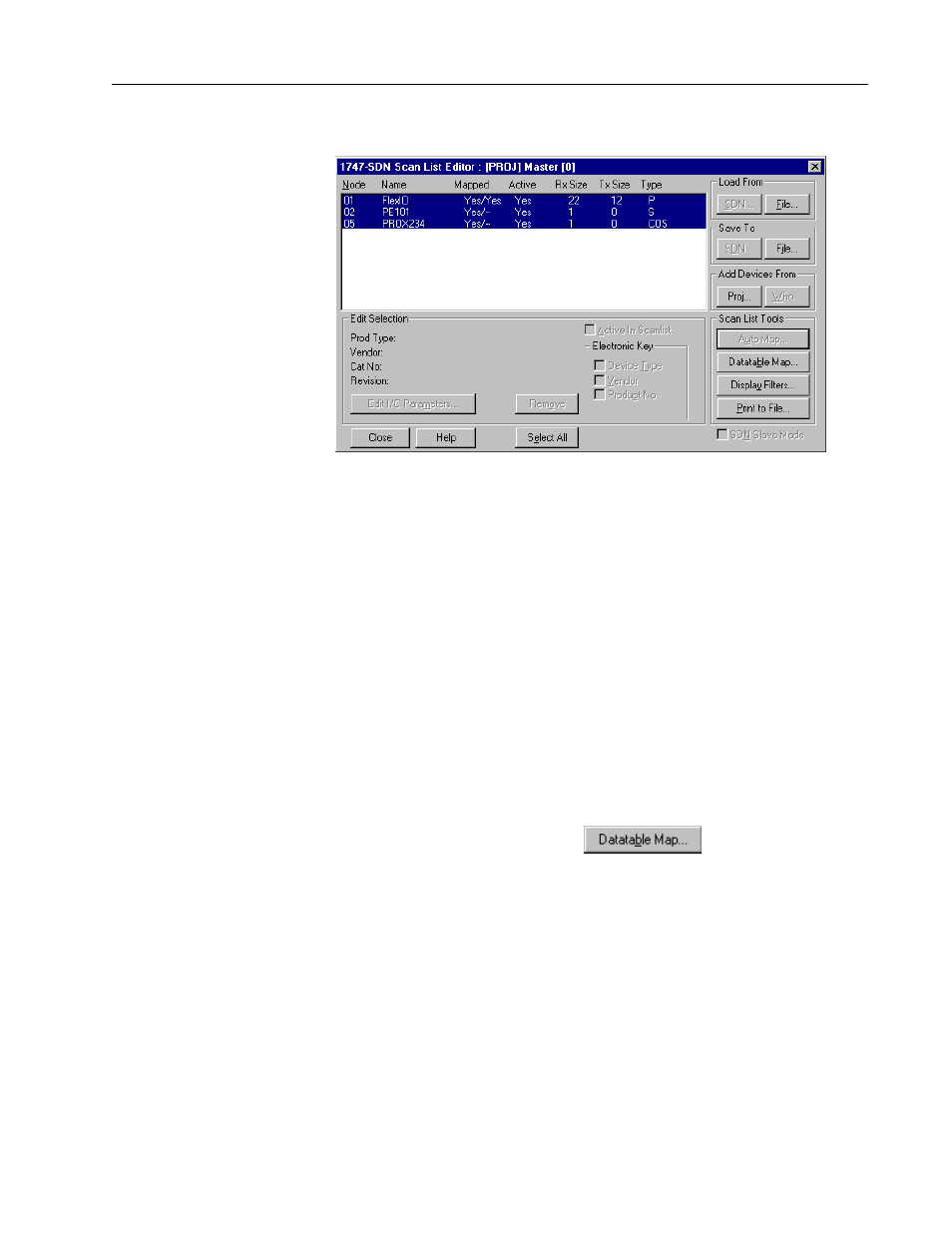

The software maps the devices and returns you to this screen.
Notice that all three slave devices in the list have “Yes” in the active
column as they are now active in the scan list and will communicate to
the 1747-SDN scanner on the network.
Also notice the “Yes” in the Mapped column, which is showing that data
is currently mapped to and/or from the SLC-500. The “Yes” in the left
column means that data is mapped from the device to the SLC-500. The
“Yes” in the right column means that the data is mapped to the device
from the SLC-500.
Observe that the FLEX I/O is mapped both from the device to the SLC-
500 and is also mapped to the device from the SLC-500.
4. To view the actual areas inside the SLC-500 where the device data will be
transferred to and from, choose
