Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 18
18
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

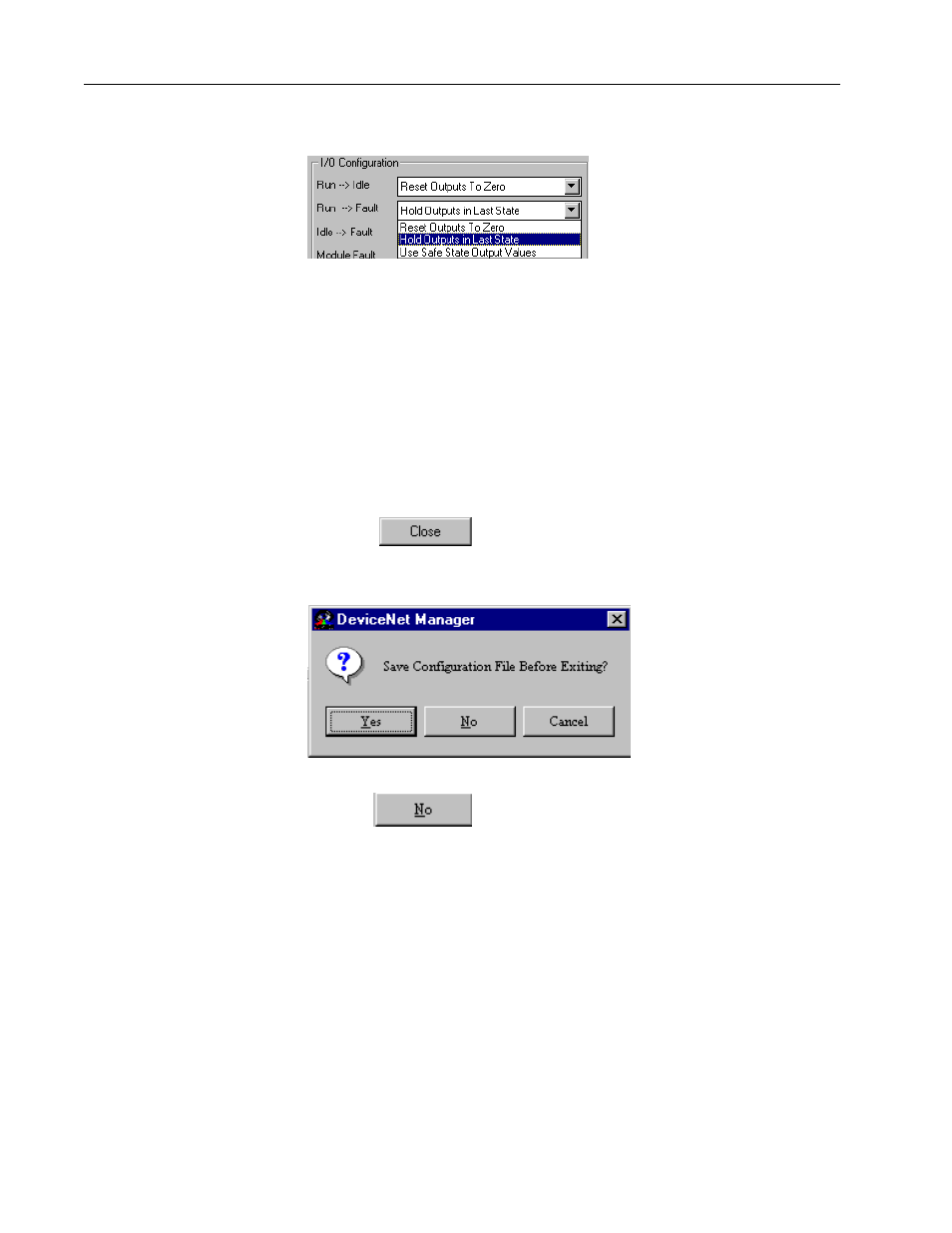

17. Click once on Hold Outputs in Last State to select it.
The 1794-ADN will now default to Hold Outputs in Last State if a fault
is detected while the 1794-ADN is in Run mode.
Note: We will NOT be saving this new configuration now! In future uses,
once all modules are configured, the configuration needs to be saved.
You would choose Yes to save the configuration to a file within this
project. When online, the configuration can be both read and saved
directly to the 1794-ADN adapter using the Load from Device, Apply
Configuration and Save to Device buttons.
18. Choose
to exit the FLEX I/O configuration screen.
You see this screen.
19. Choose
