Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 27
DeviceNet Seminar Lab Exercises
27
Publication 1787.6.1 - August 1997

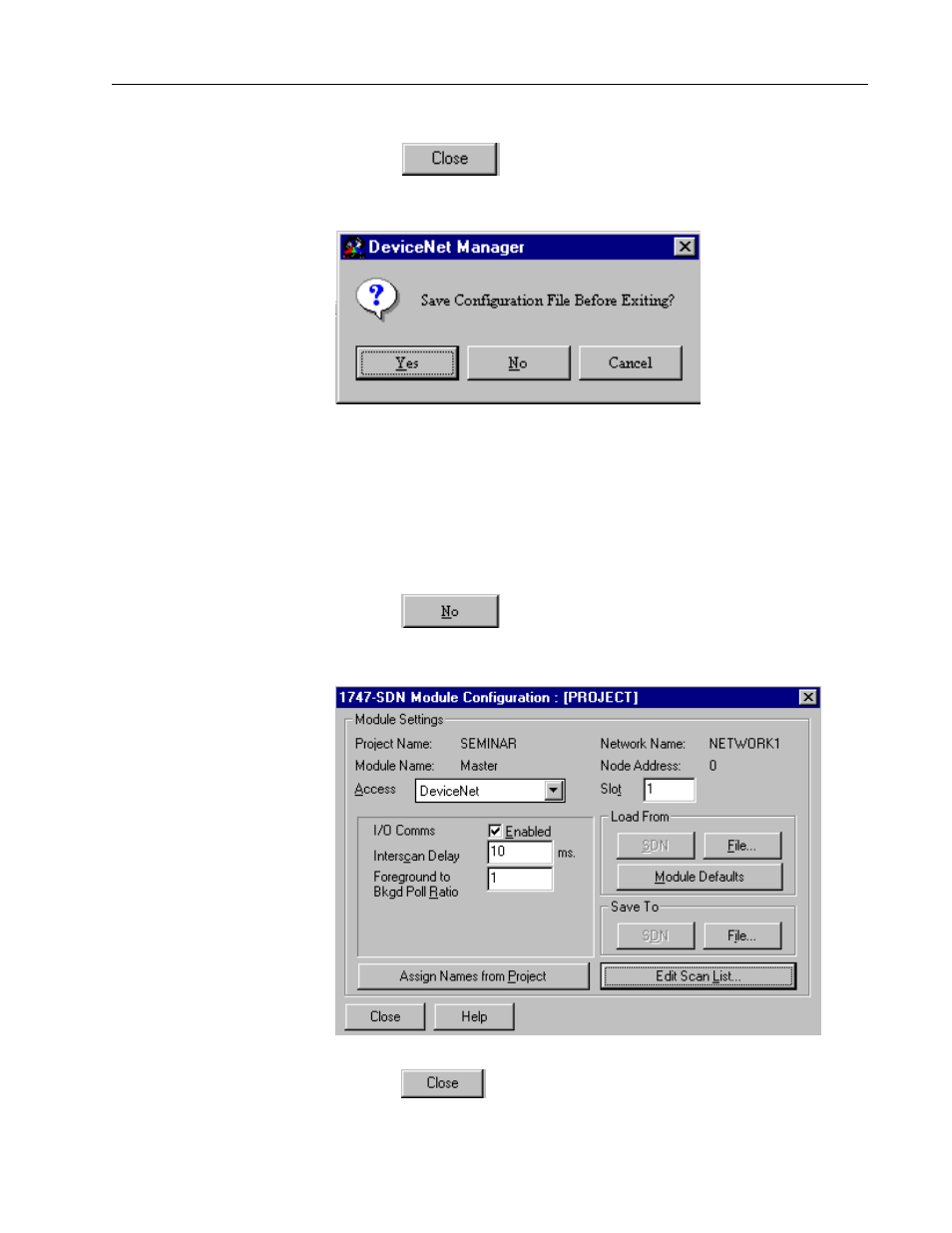

13. Choose
You see this screen.
Note: We will NOT be saving this new configuration now! In future uses,
once all of the data is mapped, the configuration needs to be saved. You
would choose Yes to save the configuration to a file within this project.
When online, the configuration can be both read and saved directly to
the 1747-SDN scanner using the Save To and Load From buttons.
14. Choose
You return to this screen.
15. Choose
