DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997
Monitoring and
Configuring the AC
Drive Online
Follow these directions to configure the ac drive online.
1. Rotate the selector switch at the top of the demo box so that an amber
0 is illuminated on the front of the 1794-IB16 FLEX I/O module.
2. Double-click Node 4, the ac drive via the 1203-GK5 module.

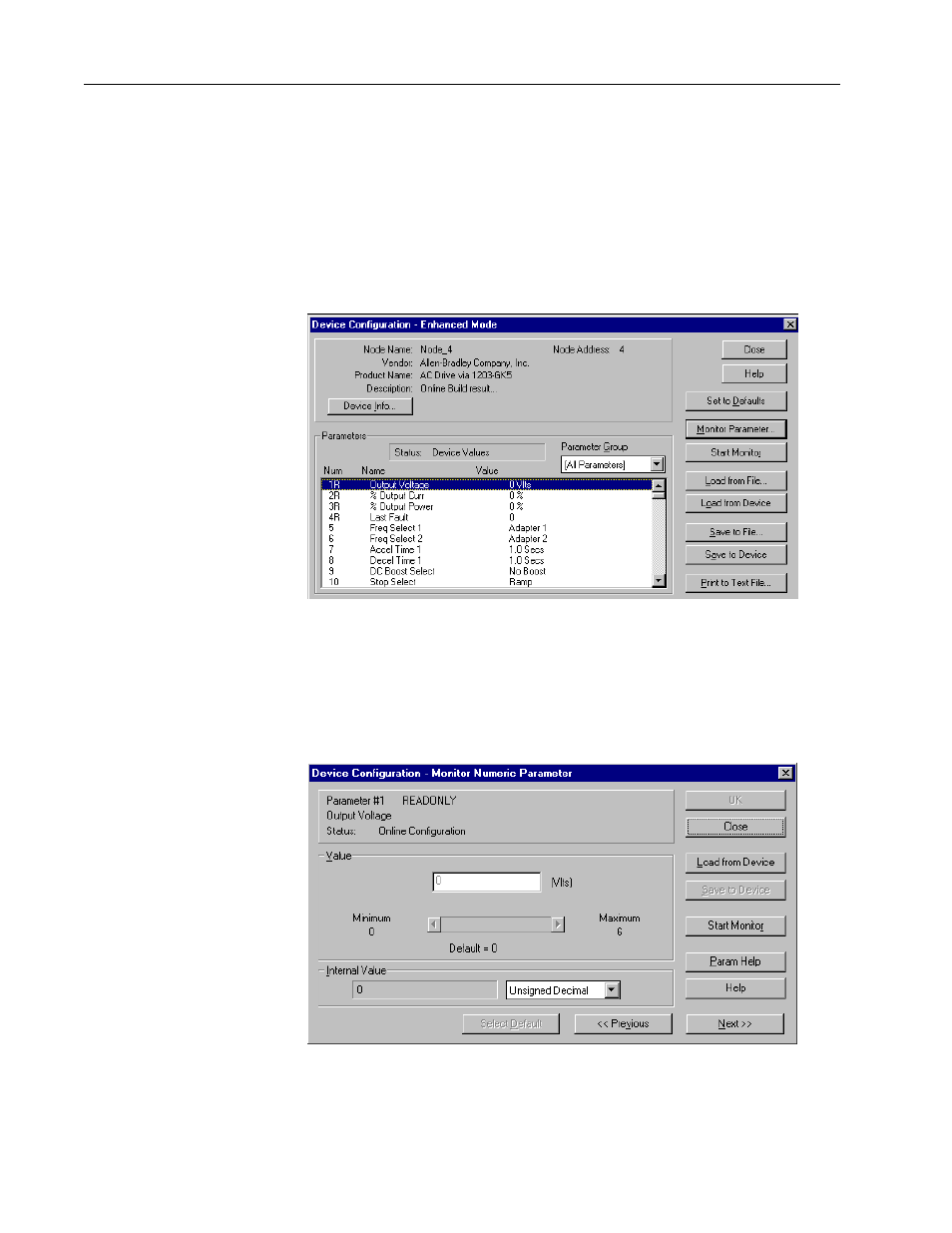

You see this screen in approximately 10 seconds.
Important: If you do not see this screen, ask your instructor for
assistance.
3. Double-click Parameter 1R.
You see this screen.
Notice the output voltage is 0.
