DeviceNet Seminar Lab Exercises
31
Publication 1787.6.1 - August 1997
Building Your
Network

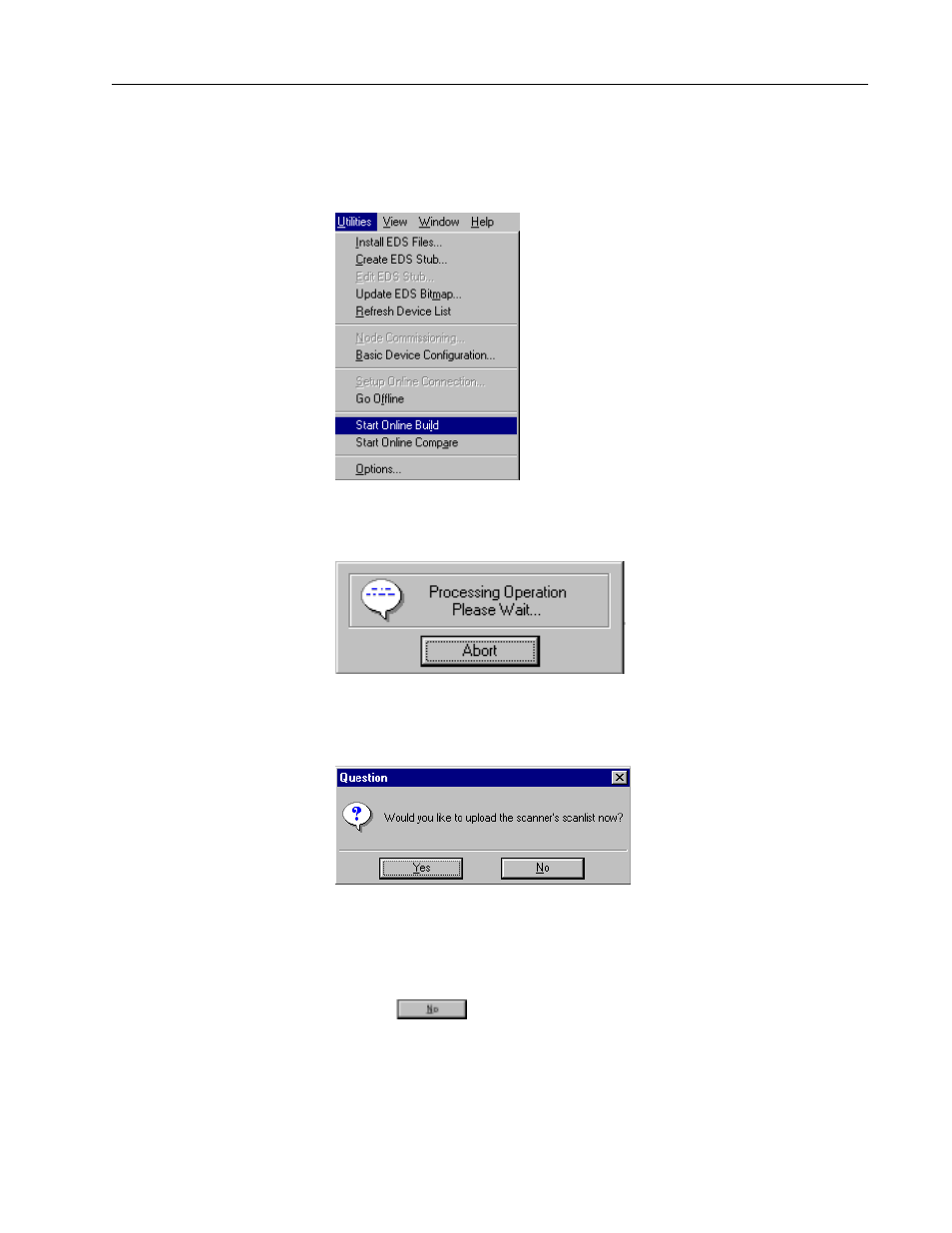

Follow these directions to have the software build your network once you
are online.
1. From the Utilities menu, choose Start Online Build...
You see this message while Online Build is occurring.
When the Online Build is finished, you see this screen.
At this time it is not necessary to upload the 1747-SDN scan list over the
network. The scan list will be loaded from a file later in the exercises.
2. Choose
