Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 20
20
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997
Notice that the project name is SEMINAR and the network name is
NETWORK1.

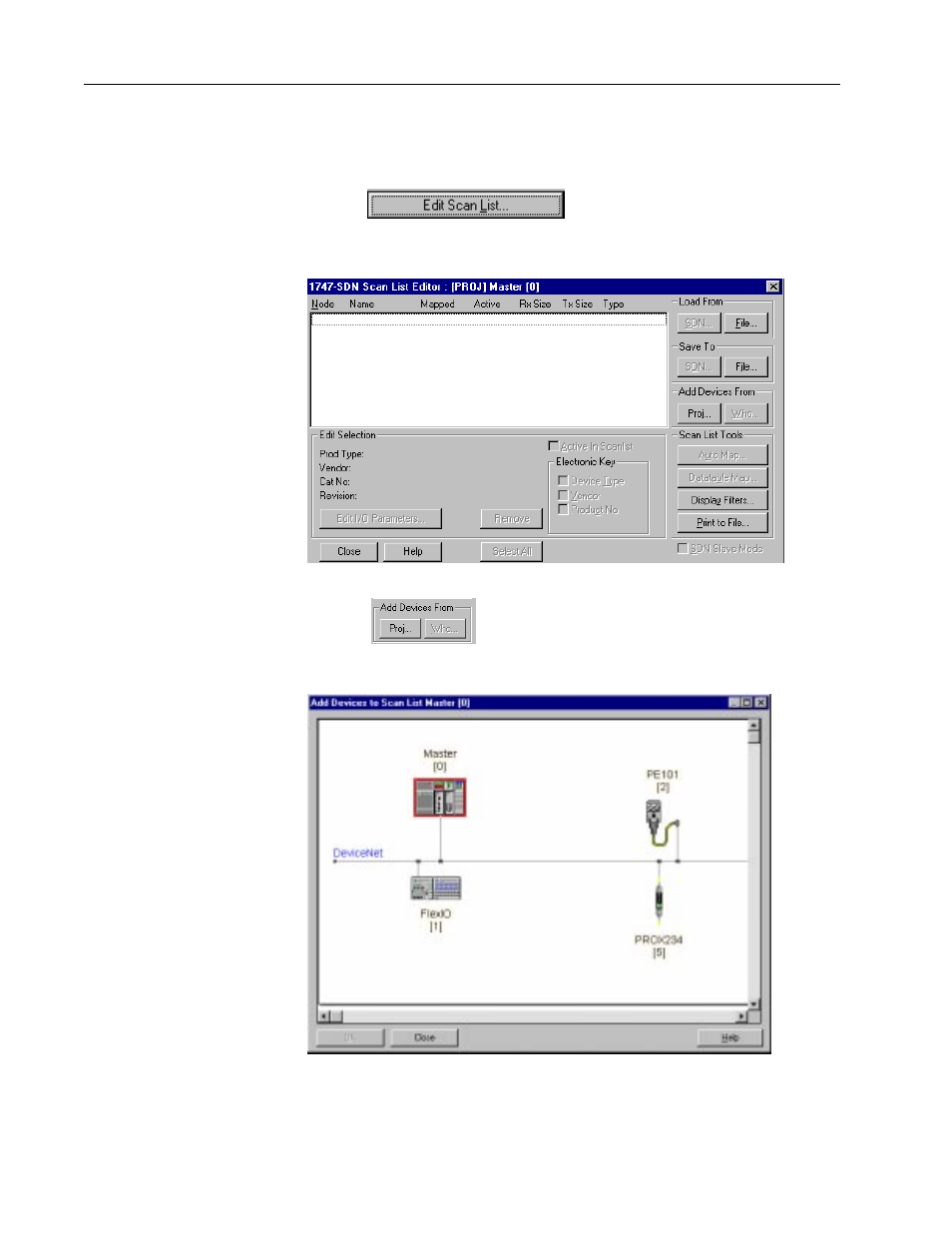

2. Choose
You see this screen.
3. Choose
You see the main project screen.
We will now build the scan list by dragging and dropping devices onto
the Master device (node 0).
