Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 16
16
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997
You return to this screen.

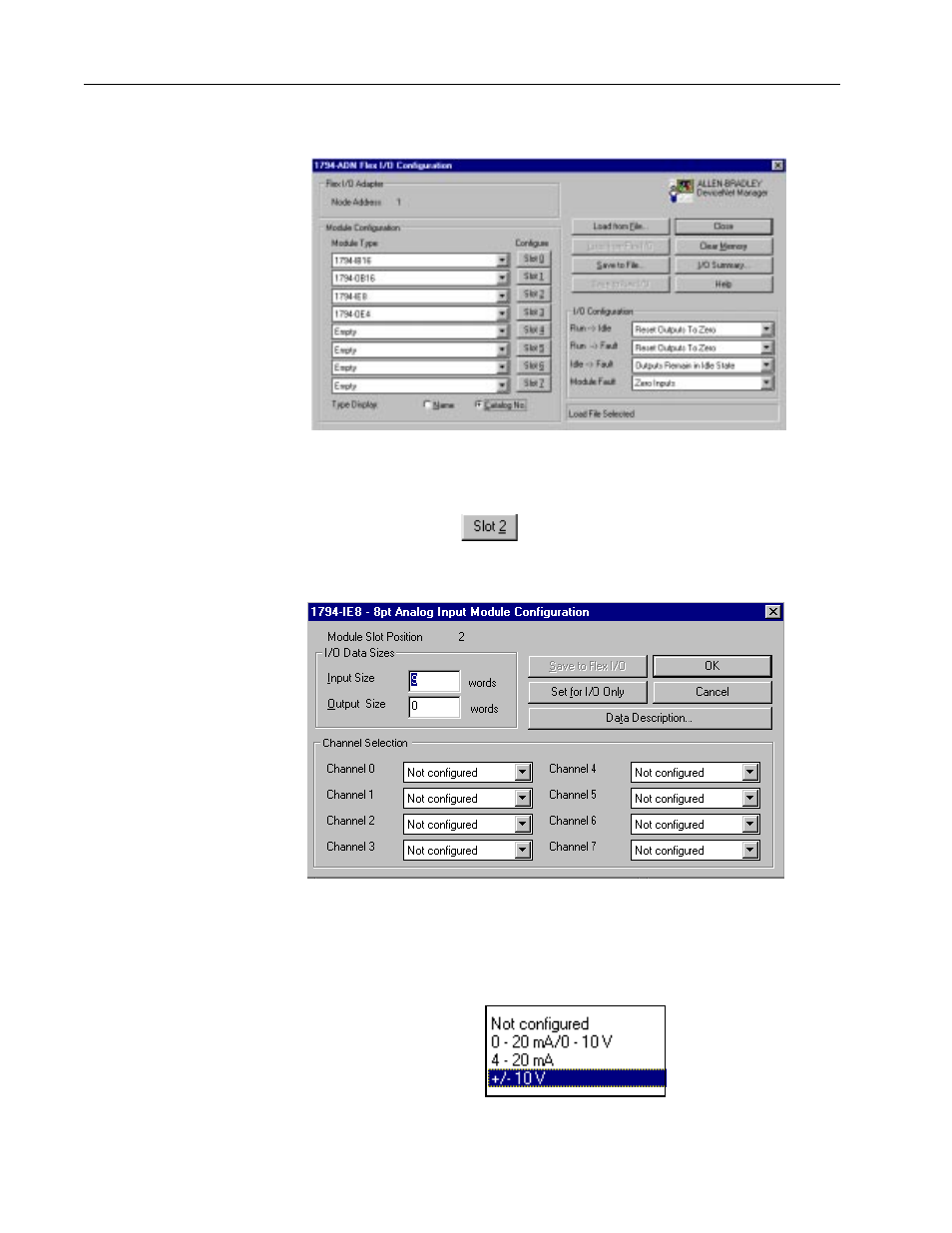

12. To custom configure the 8-channel analog input module in slot 2
(1794-IE8), choose
You see this screen.
You can choose the analog mode configuration for each of the 8 channels
on the module.
13. Click the arrow next to Channel 0.
You see these choices.
