Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 14
14
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

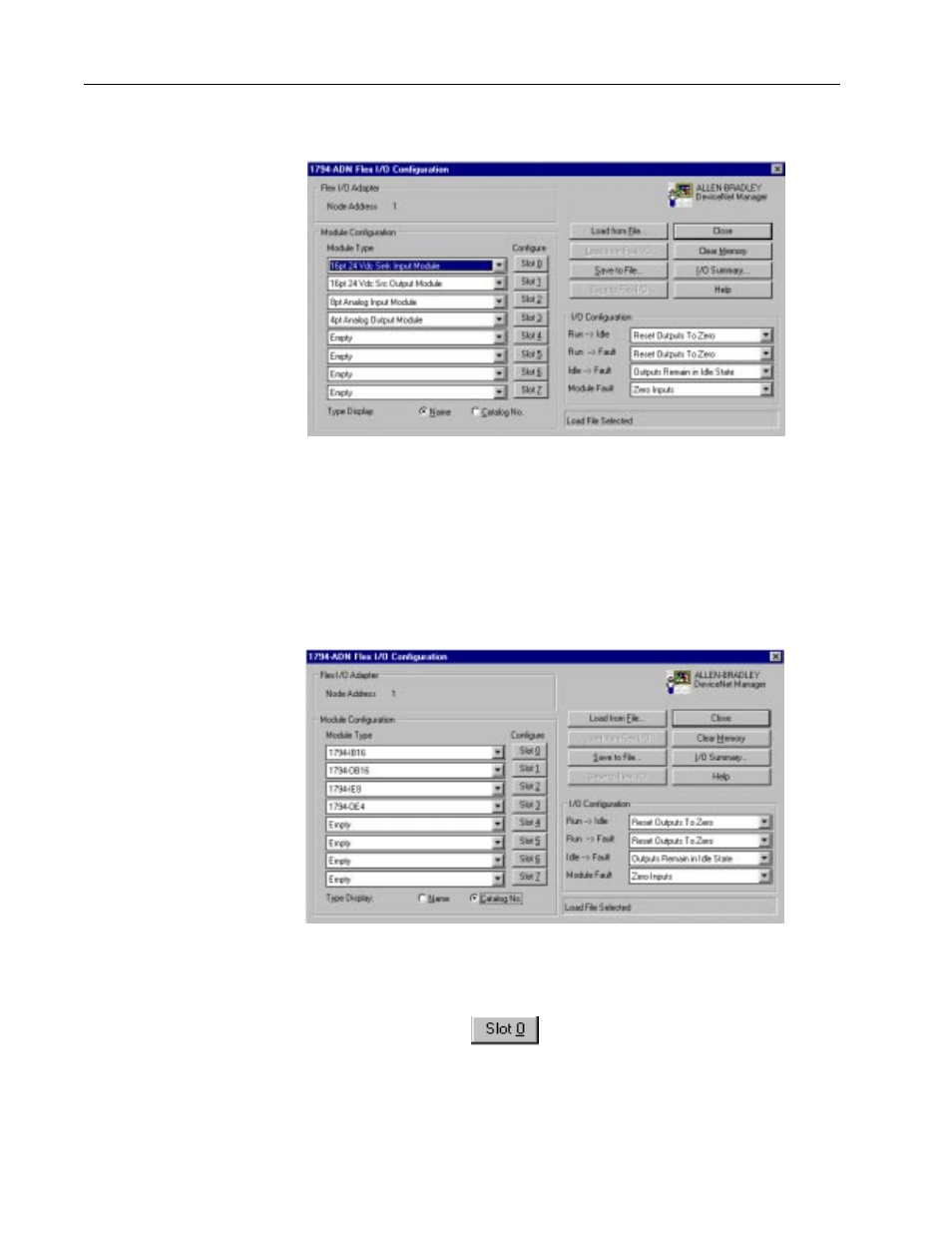

You see this screen.
This file has a previously stored configuration. Four modules displayed
by name are in the module configuration field.
7. To display the module type by Allen-Bradley catalog number, click the
radio button next to Catalog No.
You see this screen.
8. To custom configure the 16-point discrete input module in slot 0
(1794-IB16), choose
