Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 46
46
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

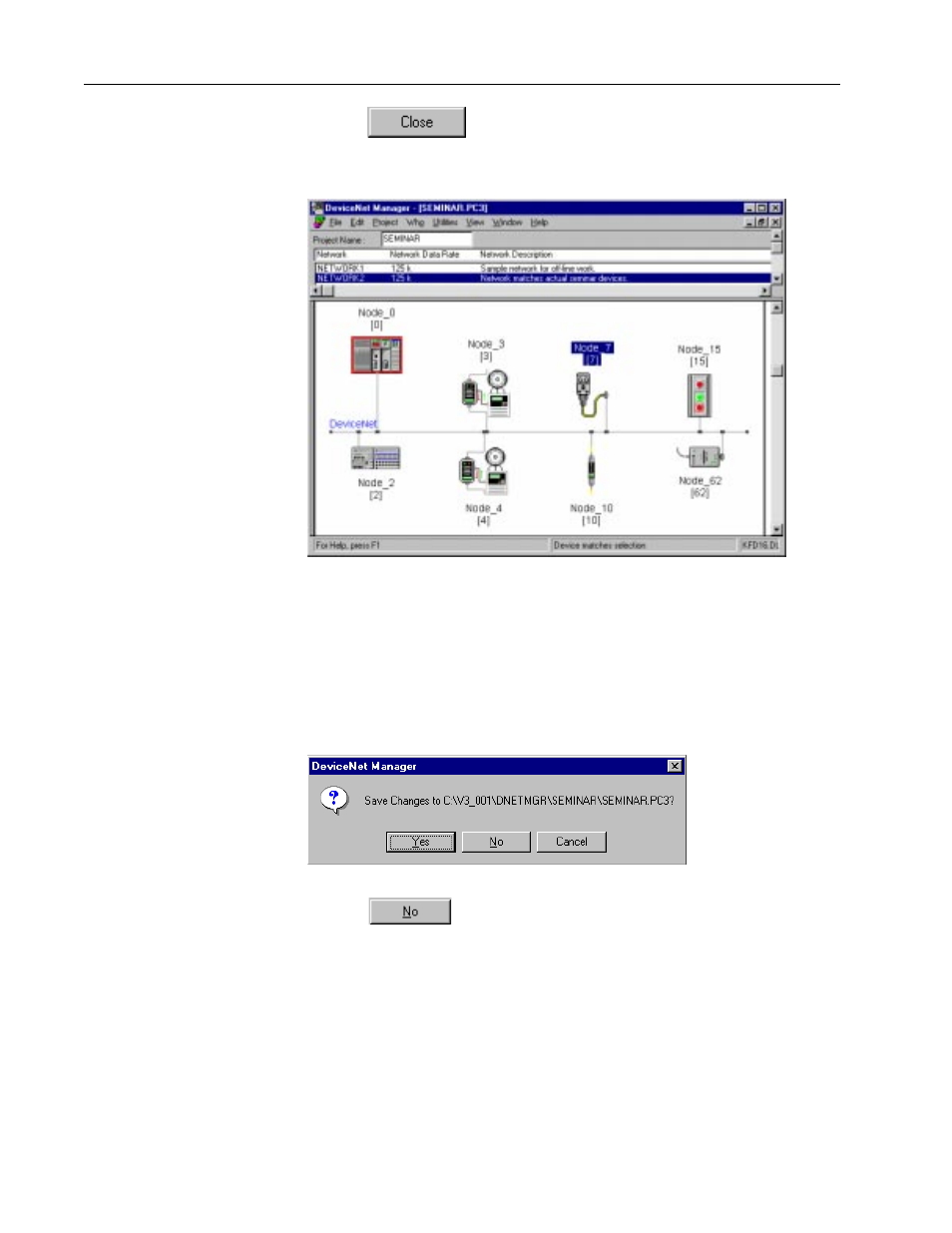

11. Choose
You return to the project screen.
12. Close the project window by clicking the button with an X in the upper
right corner of the project window.
Important: Click the lower X, so as to close the project but not
DeviceNet Manager software.
You see this screen.
13. Choose
