Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 48
48
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

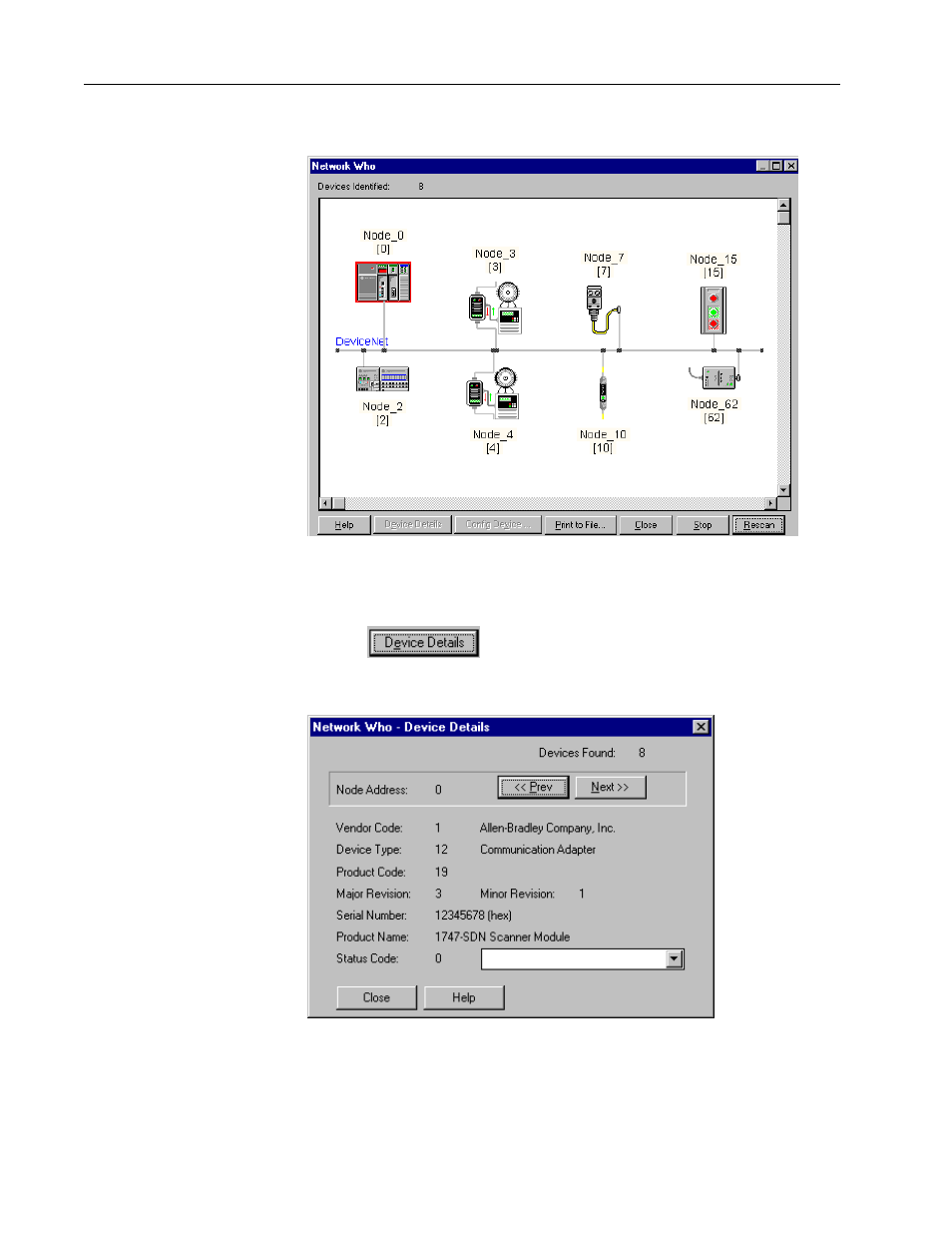

When it is finished scanning the network, you see this screen.
2. Click once on Node_ 0 to highlight it.
3. Choose
You see this screen.
Notice the details that can be accessed directly from the devices, such as
firmware revisions and serial numbers.
