DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

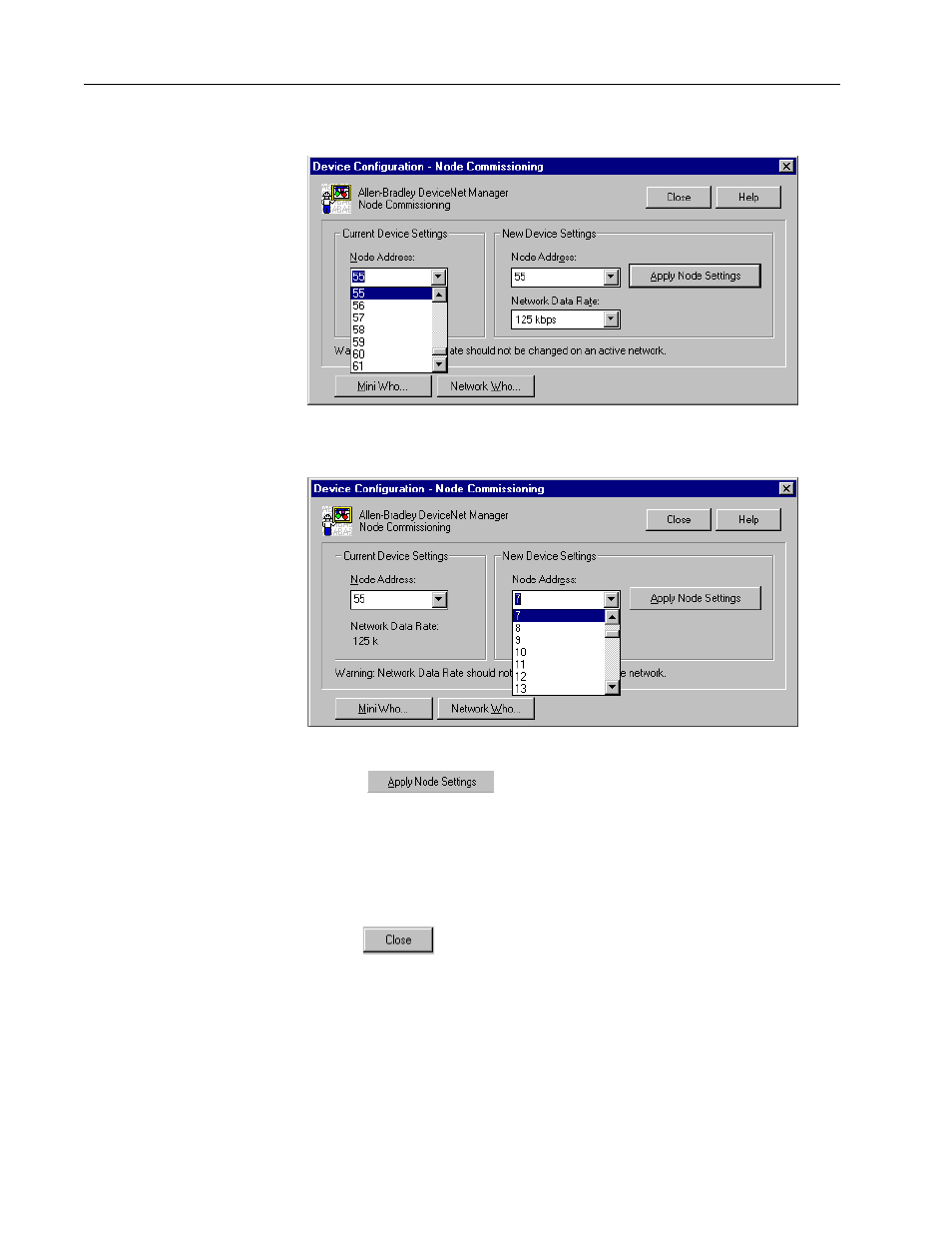

5. In the Current Device Settings box, scroll the list and choose node 55.
6. In the New Device Settings box, scroll the list and choose node 7.
7. Choose
Notice that the RediSTATION operator interface’s red light stops
blinking, the DL10 Dataliner display returns to the normal message, the
scanner displays 00, and the photoeye’s communications status indicator
turns solid green.
8. Choose
