2 DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997
Windows
Conventions Used in
This Manual This instruction manual assumes you are familiar with Windows TM
conventions including minimizing, maximizing, and
closing windows using the button bar at the top right
corner of the window
.
•
Use the button with the horizontal bar to minimize the window but not
close it.
•
Use the button with the square to maximize the window.
•
Use the button with the X to close the window.
Getting Acquainted
with the Lab We’ll go over the following DeviceNet TM features in the lab.
•
Hardware overview
•
Offline project building and device configuration
•
Online project building and device configuration
•
Online fault diagnostics and parameter monitoring
•
Network Who and Mini Who
•
Node commissioning
•
SLC processor data monitoring
What’s in the Demo

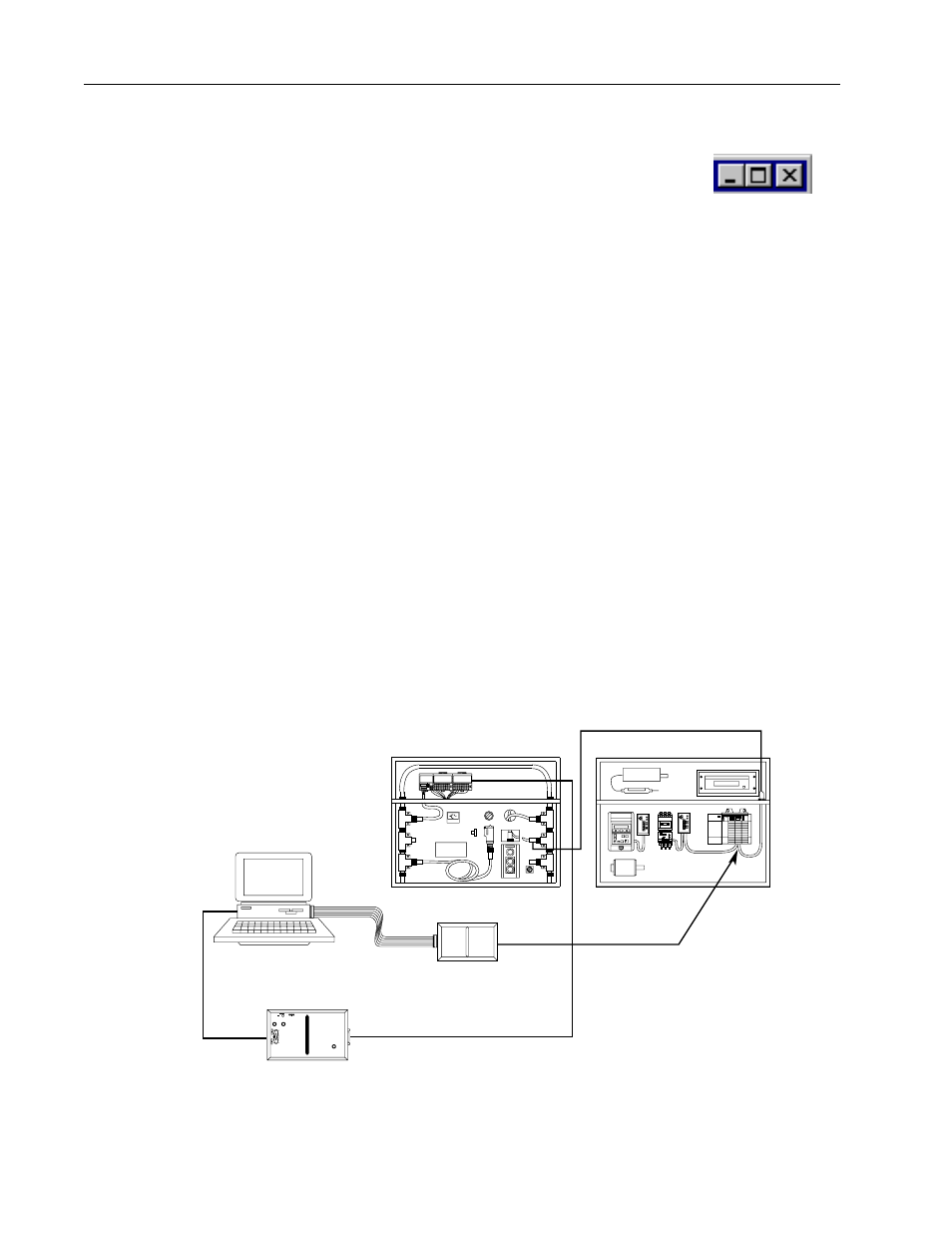

Boxes The following diagram illustrates what’s in the demo boxes.
30205-M
Device Net drop line
Device Net drop line
1747-PIC
personal computer
interface converter
RS-232 ribbon cable
personal computer
(not included)
RS-232 cable
1770-KFD
1
If you use an SLC 5/04 processor, a Data Highway Plus
tm
link is required.
Note: Demo is supplied with an SLC 5/03 processor.
demo box 1
DH-485 link 1
to DH-485 port 1
on processor
demo box 2
