Rockwell Automation DeviceNet SEMINAR LAB EX User Manual
Page 30
30
DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

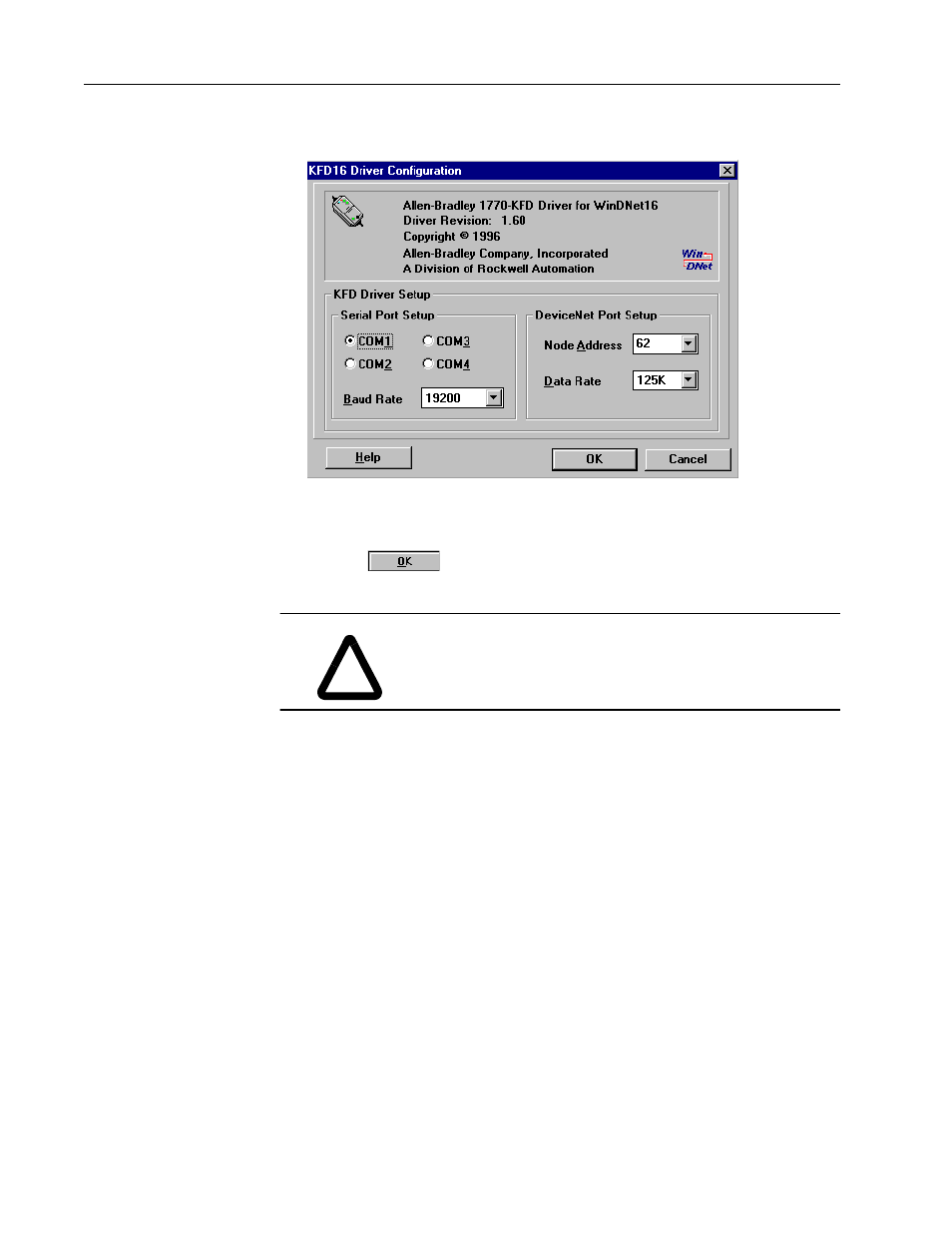

You see this screen.
Important: Your values should match those seen on this screen.
4. Choose
!
ATTENTION: In future uses, you need to make sure that all
devices are set to the proper data rate. Attempting to go on-
line at the wrong data rate may cause some or all devices on
the network to fail.
