DeviceNet Seminar Lab Exercises 17
Publication 1787.6.1 - August 1997

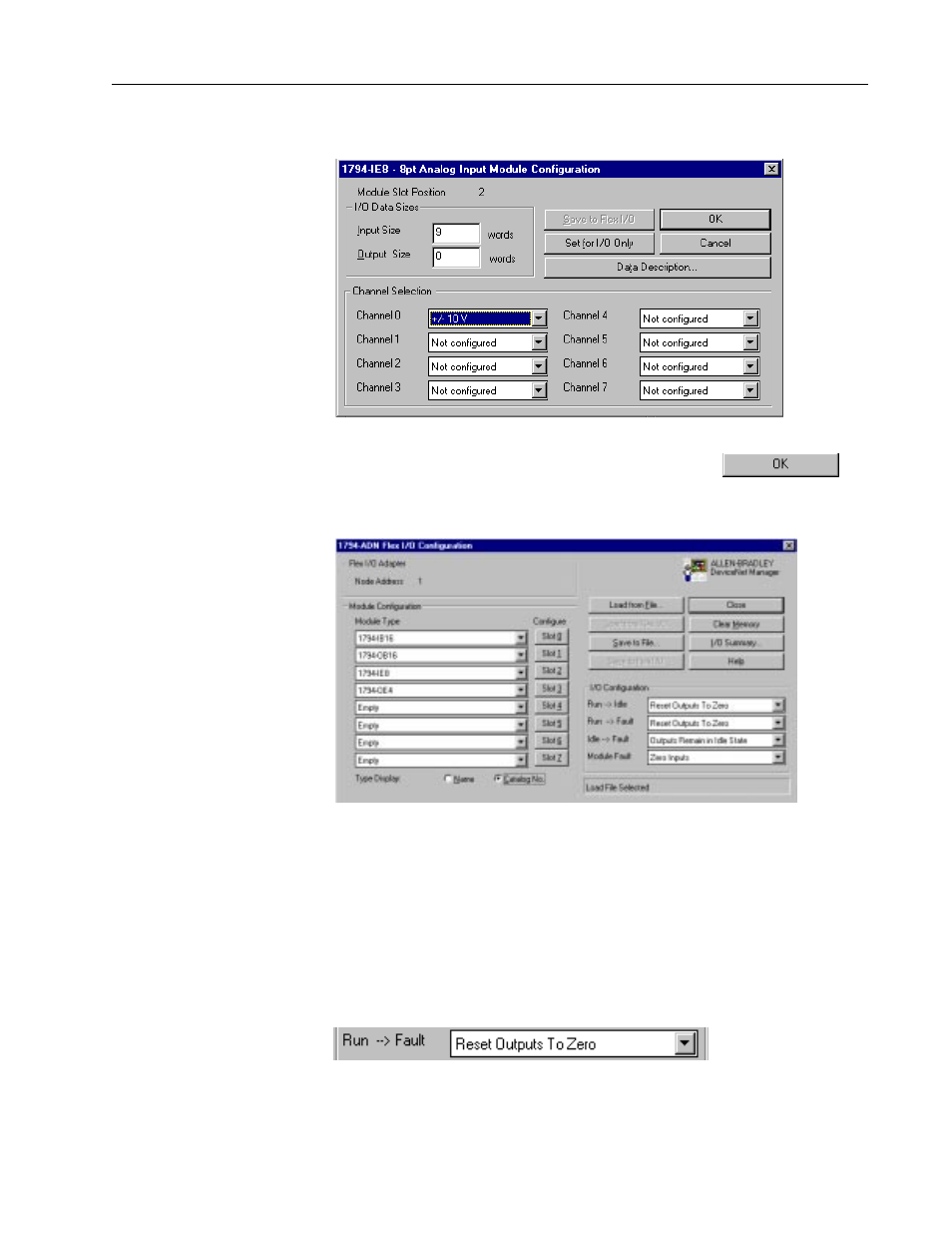

14. Click once on +/- 10 V.
15. To exit the 1794-IE8 Configuration screen, choose
You see this screen.
The I/O configuration box determines what will happen to the analog
and discrete outputs in the FLEX I/O rack when there is a fault or idle
condition on the DeviceNet network.
An example of idle condition is when the PLC processor is placed in
program mode. An example of fault condition is a broken communication
line.
16. In the I/O Configuration box, click once on the arrow next to
