36 DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

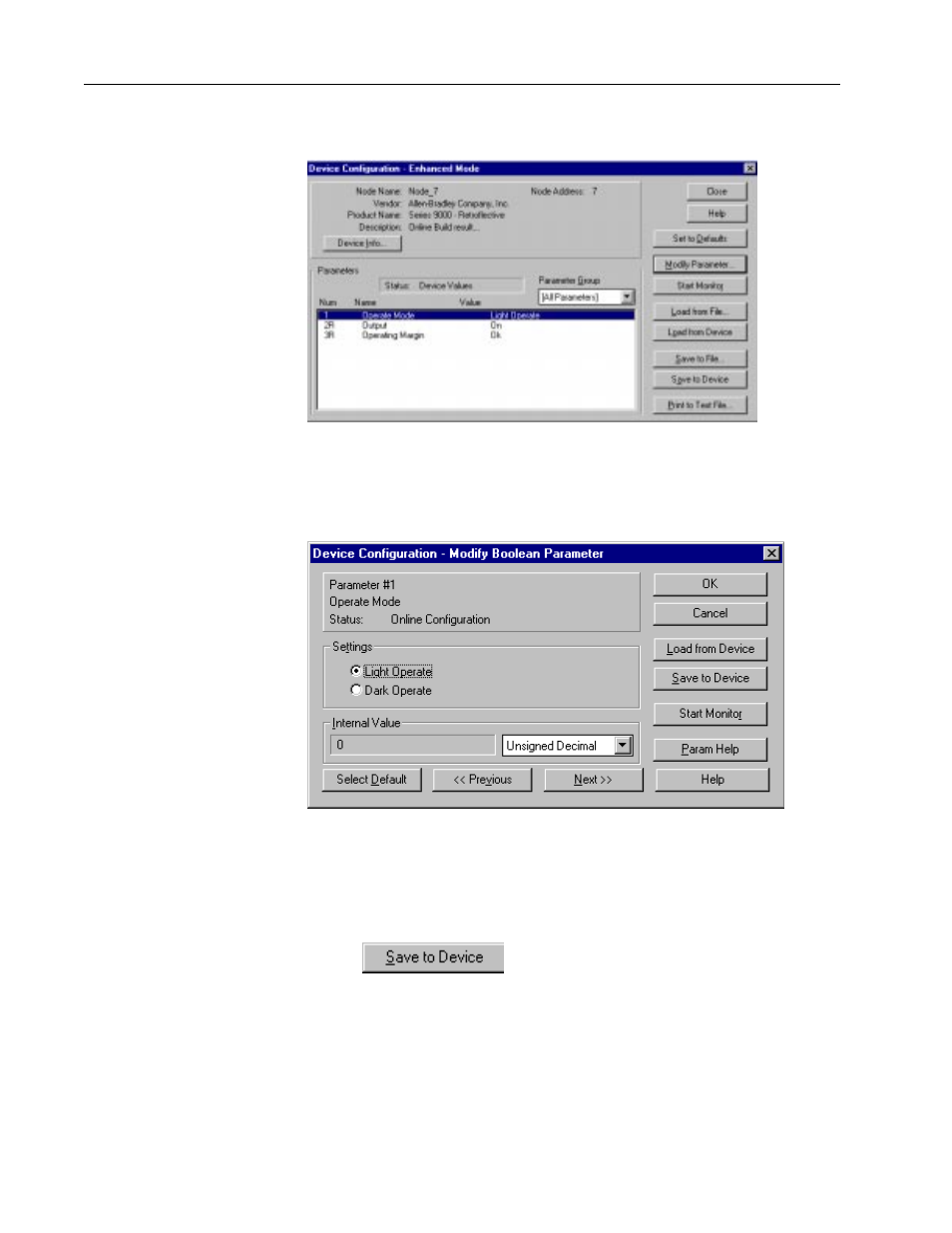

You return to this screen.
7. Double-click Parameter 1.
You see this screen.
Notice the current Operate Mode is Light Operate.
8. Click the radio button next to Dark Operate.
9. Choose
Notice that the RediSTATION operator interface’s red light goes on. The
light will turn off if you put your hand between the photoeye and the
reflector. This behavior is opposite of what it was before because you
inverted the operate mode of the photoeye over the network.
