DeviceNet Seminar Lab Exercises 39
Publication 1787.6.1 - August 1997
4. Choose
5. Press the green Start button on the front of the RediSTATION operator
interface.
Notice that the output voltage displays a voltage around 56 V. Also notice
that the 1305 ac drive displays At Speed and 15.00 Hz.
Each time the green Start button is pressed, the voltage will increase or
decrease by 56 V until it finally wraps around to 56 V again.
Each time you press the green Start button, the speed display on the drive
will also increase by 15.00 Hz until it reaches 60 Hz where it will wrap
back around to 15.00 Hz. Pressing the red Stop button causes the speed
and output voltage to go to 0.
Notice that the drive reverses direction the next time you press the Start
button. After you press the Stop button, each time you press the Start
button the drive will again change direction.
6. Choose Stop Monitor.

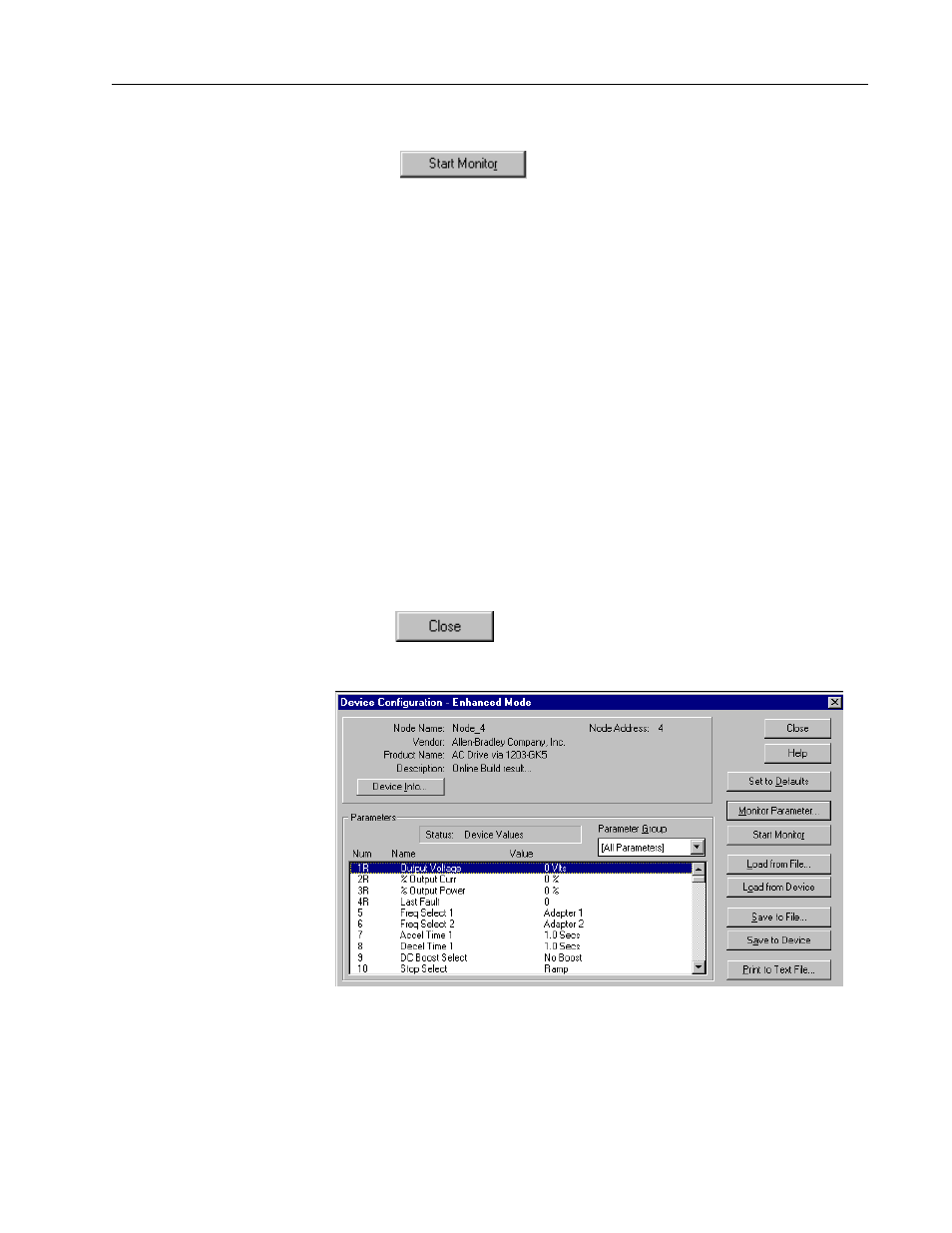

7. Choose
You return to this screen.
8. Double-click Parameter 7 “Accel Time 1”.
