40 DeviceNet Seminar Lab Exercises
Publication 1787.6.1 - August 1997

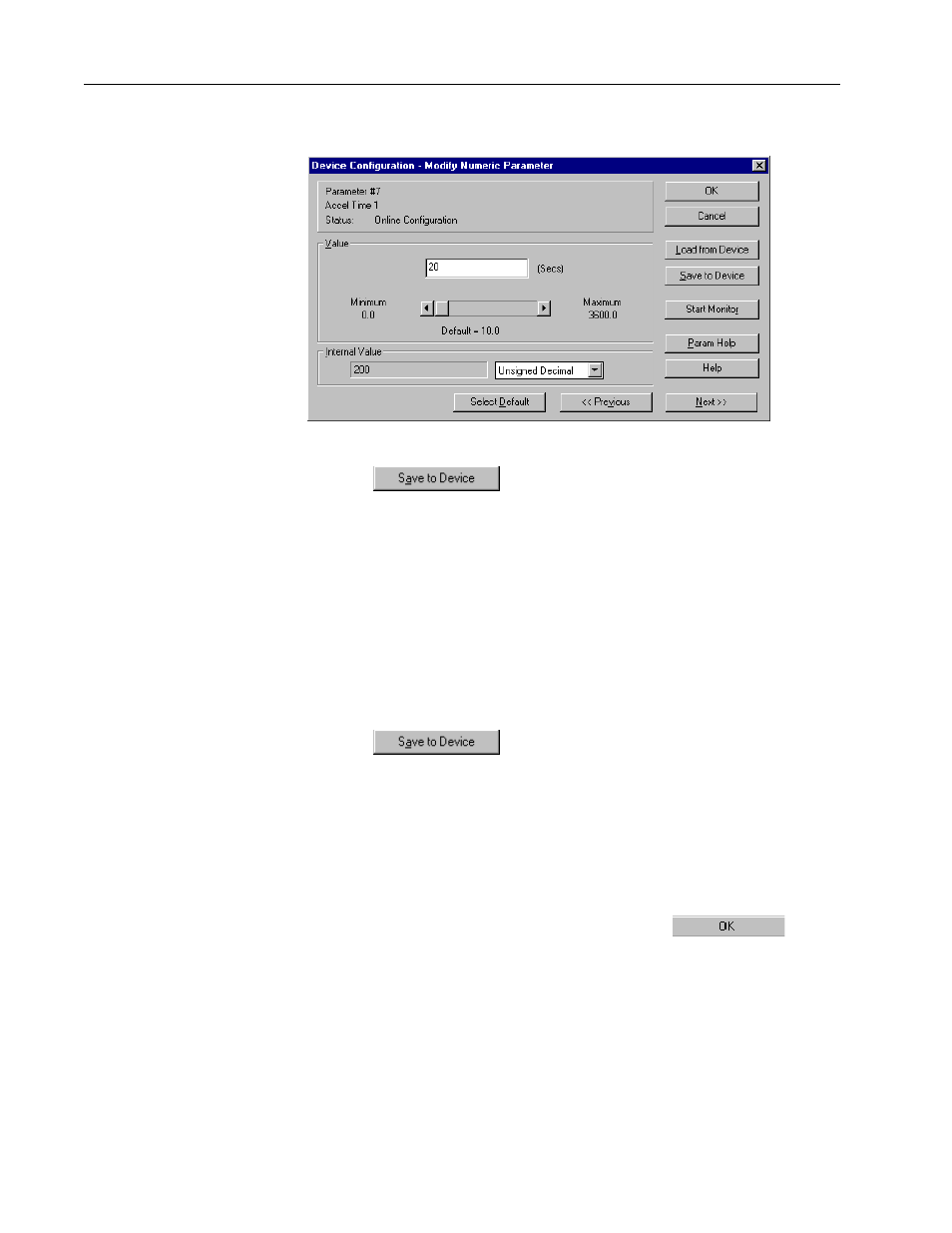

9. Change the accel time to 20s by typing 20 in the value field.
10. Choose
11. Press the RediSTATION operator interface’s red Stop button.
Now look at the front of the drive.
12. Press the RediSTATION operator interface’s green Start button.
Notice that it took longer to reach 15.00 Hz due to the new accel time.
13. Press the RediSTATION operator interface’s red Stop button.
14. Important: Restore the accel time to 5s by typing 5 in the value field.
15. Choose
The original accel time has been restored.
This exercise showed our ability to monitor and configure the ac drive
over the network with the software. It also showed our ability to start,
stop, and change the speed of the drive from the SLC-500 processor over
the DeviceNet network.
16. To exit the Device Configuration screen, choose
