8-4 Develop Your GuardPLC Application
Create Application Program
Logic
Create application program logic using the signals you defined.
Drag and drop the application signals, which are now connected
(mapped) to DeviceNet data signals, into the appropriate application
Type Instances and create your program logic.
Save and Compile
Application Logic
Save and compile your application logic.
Compiling the application logic and controller hardware configuration
results in a high-integrity computation of the HSP signature.
Refer to the GuardPLC Controller Systems User Manual, publication
number 1753-UM001, for details on creating, saving, and compiling
program logic.
Download the Project to the
Controller
Place the Controller in Stop Mode (if necessary)
Before you can download to the GuardPLC controller, the controller

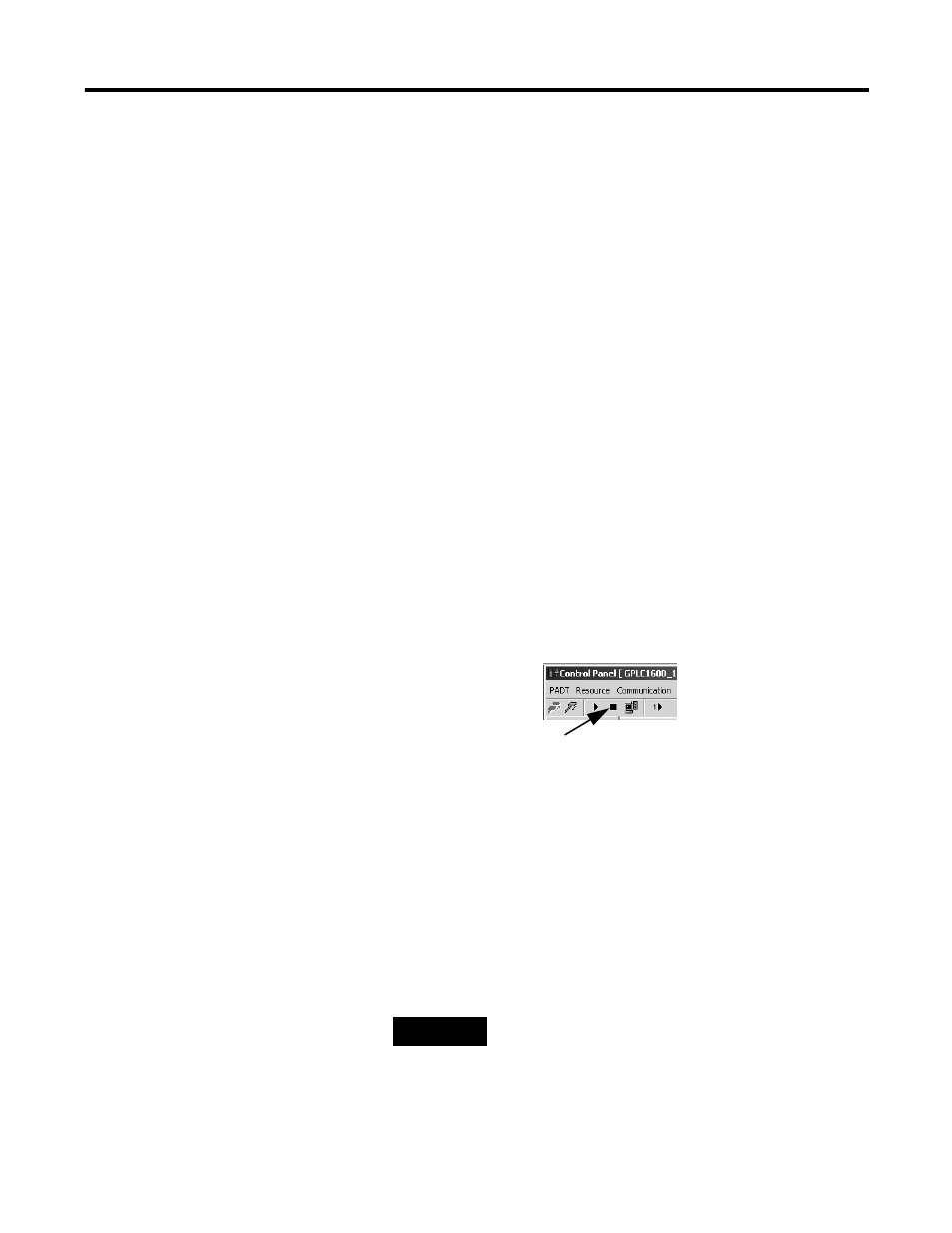

must be in Stop mode. In RSLogix Guard PLUS! Hardware
Management, left-click on the stop icon on the Control Panel and
confirm the action by selecting Yes to the warning prompt.
Download the Project
In RSLogix Guard PLUS! Hardware Management:
1. Right-click on the controller resource.
2. Select Online > Control Panel.
3. Fill in your user name and password on the login screen. The
default username is Administrator with no password. Click OK.
TIP
Enter Ctrl-A to automatically fill in the default
username and access type.
