Publication 1753-UM002A-EN-P - July 2005
1-6 Before You Begin
Files enable RSNetWorx for DeviceNet and RSLogix Guard PLUS! to
share the same view of the individual signals available on all of the
DeviceNet connections present in a specific DeviceNet Safety Scanner
configuration.
The following table lists the software and revision level required to
operate with the 1753-DNSI scanner.
DeviceNet Safety Scanner
Features

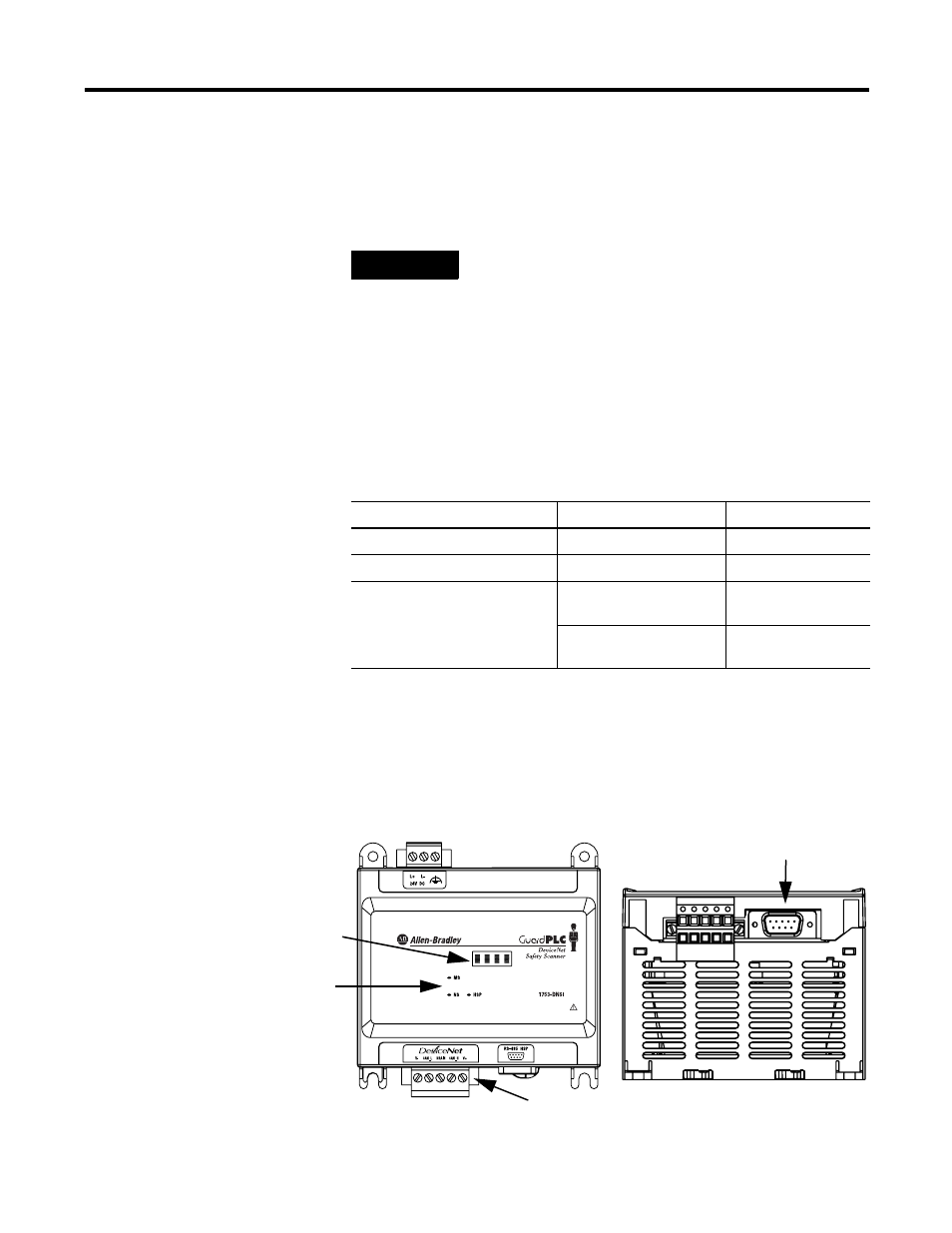

Hardware Overview
TIP
If you install RSLogix Guard PLUS! and RSNetWorx
for DeviceNet on the same PC, you can take
advantage of the ‘Automatically Update Signals’
feature. Otherwise, you must manually import and
export the Scanner Signals and Target Connections
files. See Chapter 7, Associate the Scanner and
Controller and Download the DeviceNet Network
Configuration, for more information.
Function
Software
Revision
Communications
RSLinx
2.42 or higher
DeviceNet Configuration
RSNetWorx for DeviceNet
6.x or higher
Programming Application Logic
RSLogix Guard PLUS!,
Program Management
4.0 or higher
RSLogix Guard PLUS!,
Hardware Management
6.x or higher
Front View
Bottom View
DeviceNet Safety Port
HSP Port
character display
LED Indicators
