Din rail mounting -3, Din rail mounting – Rockwell Automation 1753-DNSI DeviceNet Safety Scanner for GuardPLC Controllers User Manual
Page 23

Publication 1753-UM002A-EN-P - July 2005
Install the 1753-DNSI 2-3
The module can be DIN rail or panel-mounted as described in the
following sections.

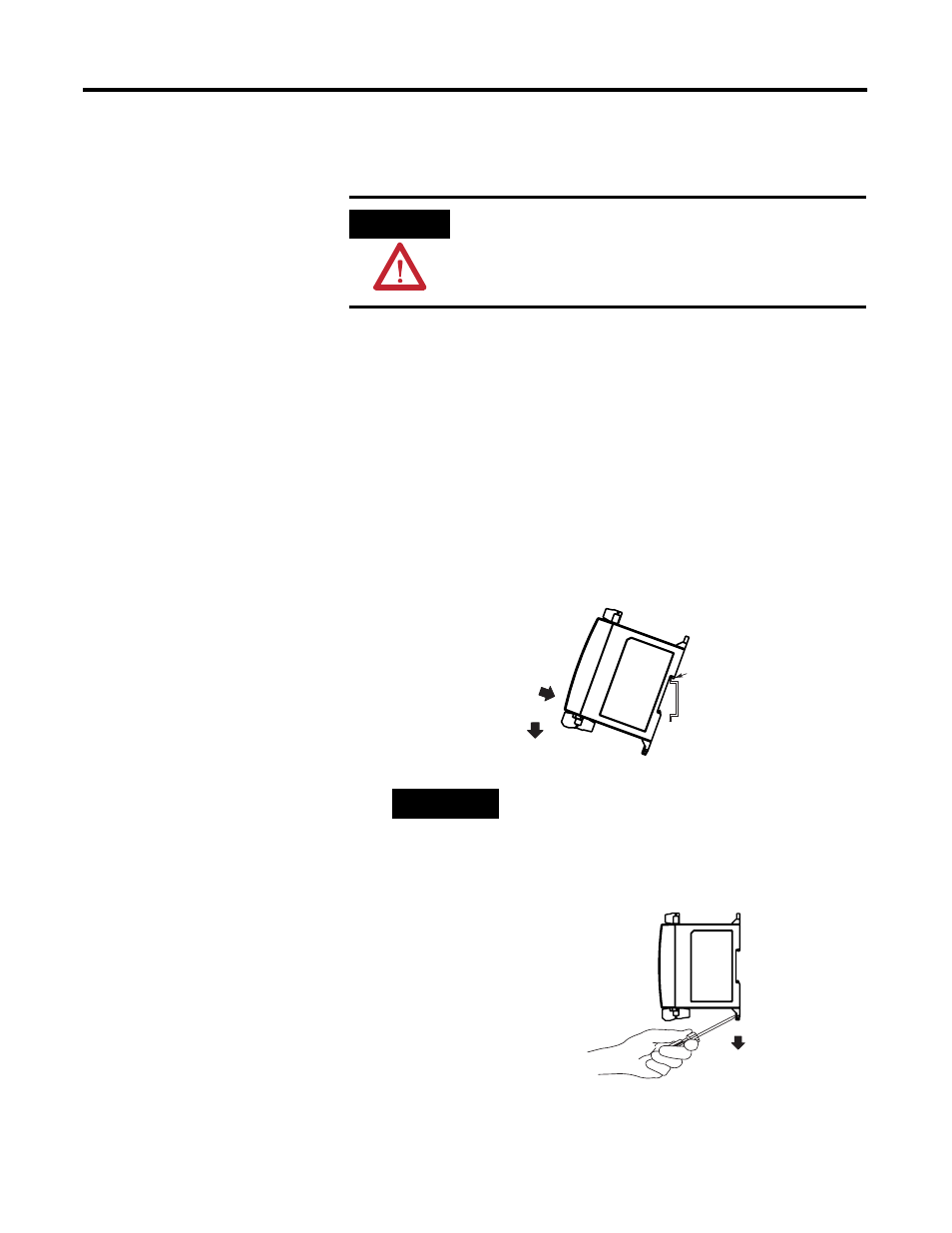

DIN Rail Mounting
Mount the module to a EN50022-35x7.5 or EN50022-35x15 DIN rail by
following the steps below:
1. Close the DIN latches, if they are open.
2. Hook the top slot over the DIN rail.
3. While pressing the module down against the top of the rail, snap
the bottom of the module into position.
The maximum extension of each DIN rail latch is 14 mm (0.55 in) in
the open position.
ATTENTION
Be careful of metal chips when drilling mounting
holes for your module or other equipment within the
enclosure or panel. Drilled fragments that fall into
your module could cause damage.
TIP
To remove the module from the DIN rail,
insert a flathead screwdriver into the gap
between the housing and each latch and
pull the latch downward. When both DIN
latches are open, lift the module off of the
rail.
