Publication 1747-UM011G-EN-P - June 2008
Communicating with Devices on an Ethernet Network 253
User Provided Pages
You can use a text editor to generate up to 16 user-provided web
pages. Each page is stored in four consecutive ASCII files of the SLC

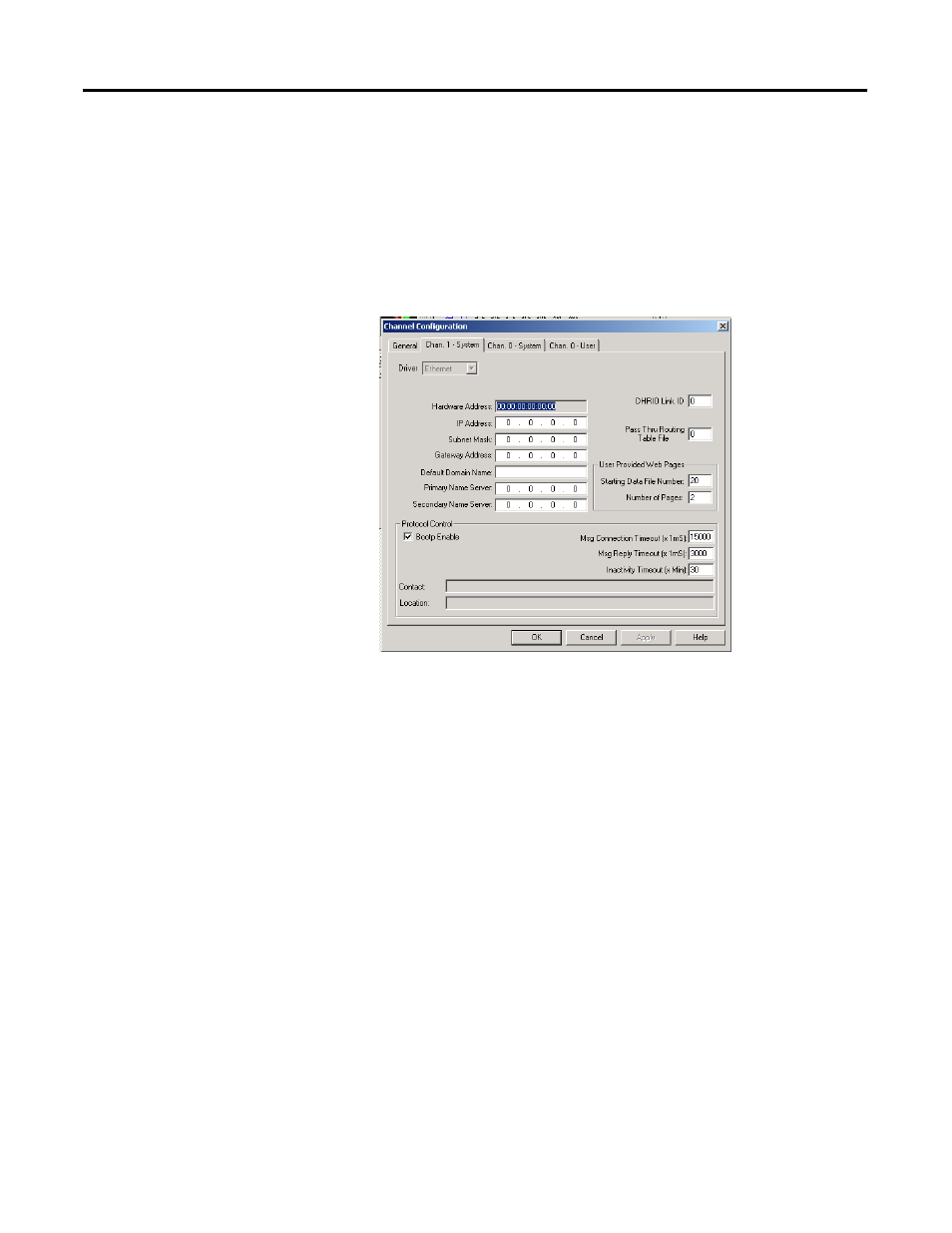

5/05 processor. The channel configuration feature of RSLogix 500
software (version 6.0 or later), lets you select the starting file number
and the number of user pages to be stored.
RSLogix 500 software (version 6.0 or later) also lets you import an
HTML file from your personal computer to specified ASCII files in the
SLC 5/05 processor. See page 257 for details.
HTML Pages
Referencing Other Pages/Servers - following are some basic
considerations when referencing other pages or servers:
• reference user-specified pages in the SLC 5/05 processor by
using the names user1.html...user16.html
• to reference a page on the same processor, specify a URL such
as /user2.html
• to reference a page on another processor, specify a URL such as
http://www.xxx.yyy.zzz/user2.html, where www.xxx.yyy.zzz is
the IP address of the processor
• you can reference other WWW servers and display images from
other sources without affecting your usage of data table memory
(except for the size of the HTTP reference)
Referencing Data Table Memory - reference data table memory
locations by placing custom tags into your HTML source which specify
