Ethernet network topology – Rockwell Automation 1747-L5xx SLC 500 Modular Hardware Style User Manual User Manual
Page 239
Publication 1747-UM011G-EN-P - June 2008
Communicating with Devices on an Ethernet Network 239
SLC 5/05 Processor and
Personal Computer
Connections to the Ethernet
Network
The SLC 5/05 Ethernet connector conforms to ISO/IEC 8802-3 STD
802.3 and utilizes 10/100Base-T media. Connections are made directly
from the SLC 5/05 to an Ethernet hub. The network setup is simple
and cost effective. Typical network topology is pictured below.

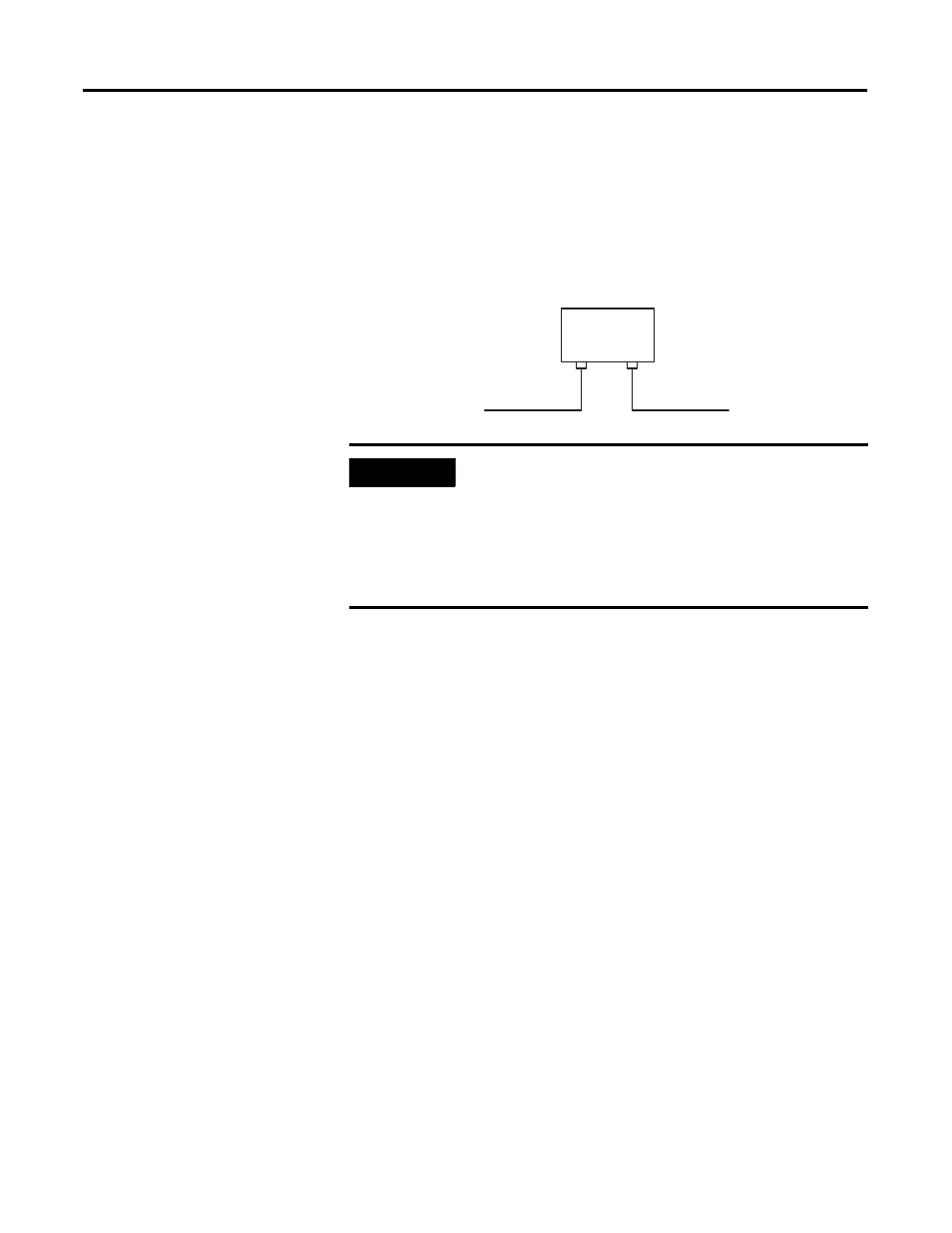

Ethernet Network Topology
IMPORTANT
The SLC 5/05 processor contains a 10/100Base-T, RJ45 Ethernet
connector which connects to standard Ethernet hubs via 8-wire
twisted-pair straight-through cable. To access other Ethernet
mediums, use 10/100Base-T media converters or Ethernet hubs
that can be connected together via fiber, thin-wire, or thick-wire
coaxial cables, or any other physical media commercially
available with Ethernet hubs.
Ethernet Hub
To PC Ethernet Card
To SLC 5/05 Channel 1
RJ45 Connectors
(both ends of cable
(10/100Base-T))
