Publication 1761-UM006E-EN-P - August 2005
7-12 1761-NET-ENIW Web Server Capabilities

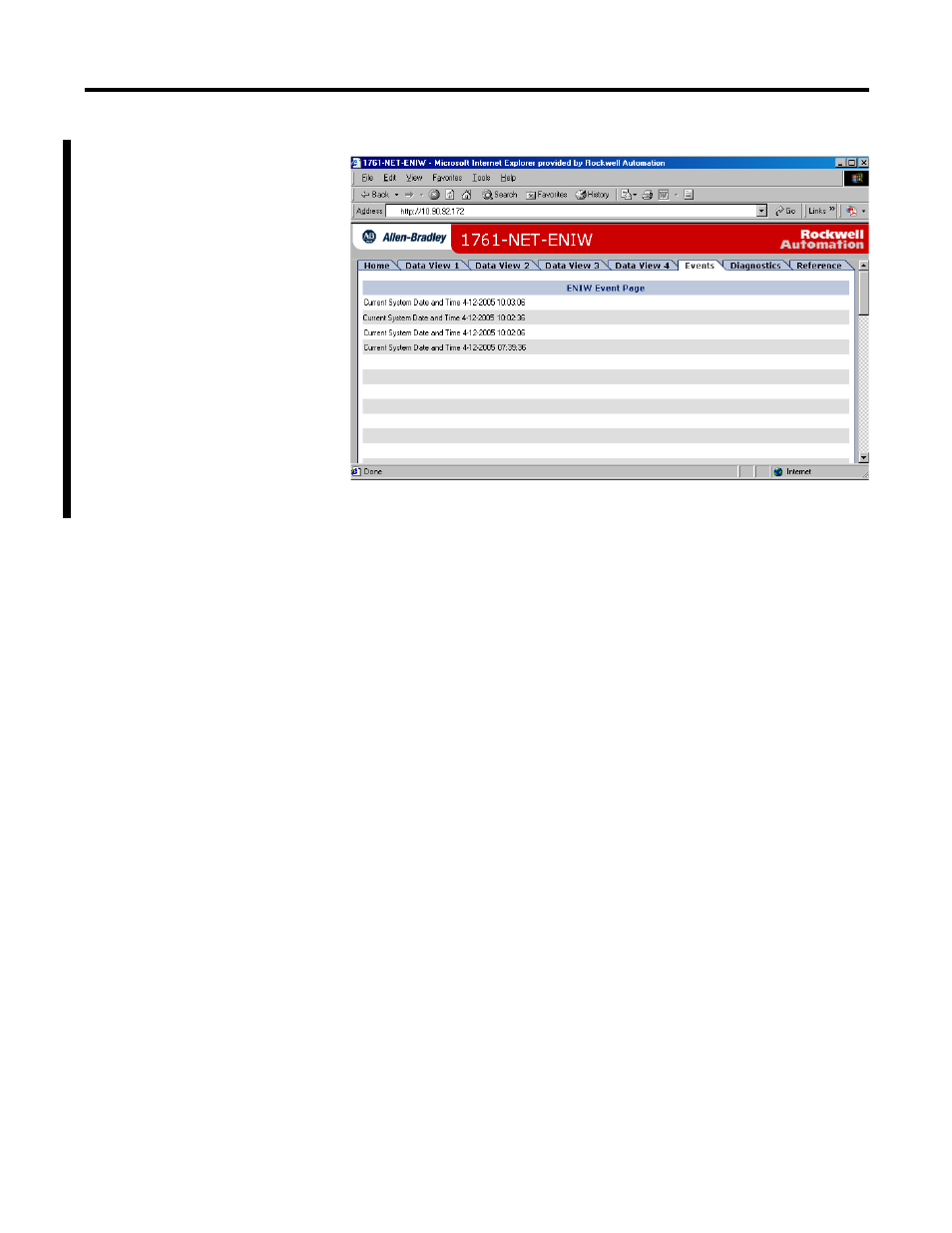

Figure 7.7 Example Event Page
The Event page displays a log of events in a buffered list composed of
up to 50 string elements. Each string is displayed in a single line on
the page.
The event log displays the last number ( n) of strings received, with the
newest message at the top. Once the buffer is full, each new string
received overwrites the oldest.
Strings written by the attached device to the ENIW to node 204 at
element 0 are added to the Event Log.
A string written to node 205 clears the buffer.
Display Diagnostic Data A Diagnostics page has been added to series D ENI/ENIW units. The
diagnostics page provides module specific information, as well as a
dynamic display of ENI/ENIW Ethernet connection utilization.
The ENI/ENIW can support 6 concurrent TCP/IP connections; 2
incoming; 2 outgoing; and two that can be allocated as either
incoming or outgoing.
Each TCP/IP connection simultaneously supports:
• 4 CIP connections
• 5 Unconnected sends
