Page 71: Email messages (node 50 to 99), Overview -1, Er 6, Chapter

1
Publication 1761-UM006E-EN-P - August 2005
Chapter
6
EMail Messages (Node 50 to 99)
This chapter describes using the ENI/ENIW’s email feature. The
following topics are included:
• Overview
• Configuring Email
• Sending an Email Message
Overview
The ENI/ENIW is capable of transmitting email messages generated by
the attached controller. This provides an extremely versatile
mechanism to report alarms, status, and other data-related functions.
To send an email message, the controller generates a 485CIF/PLC2
write message, with a string element as the data, to a node number
that correlates to the email destination address.

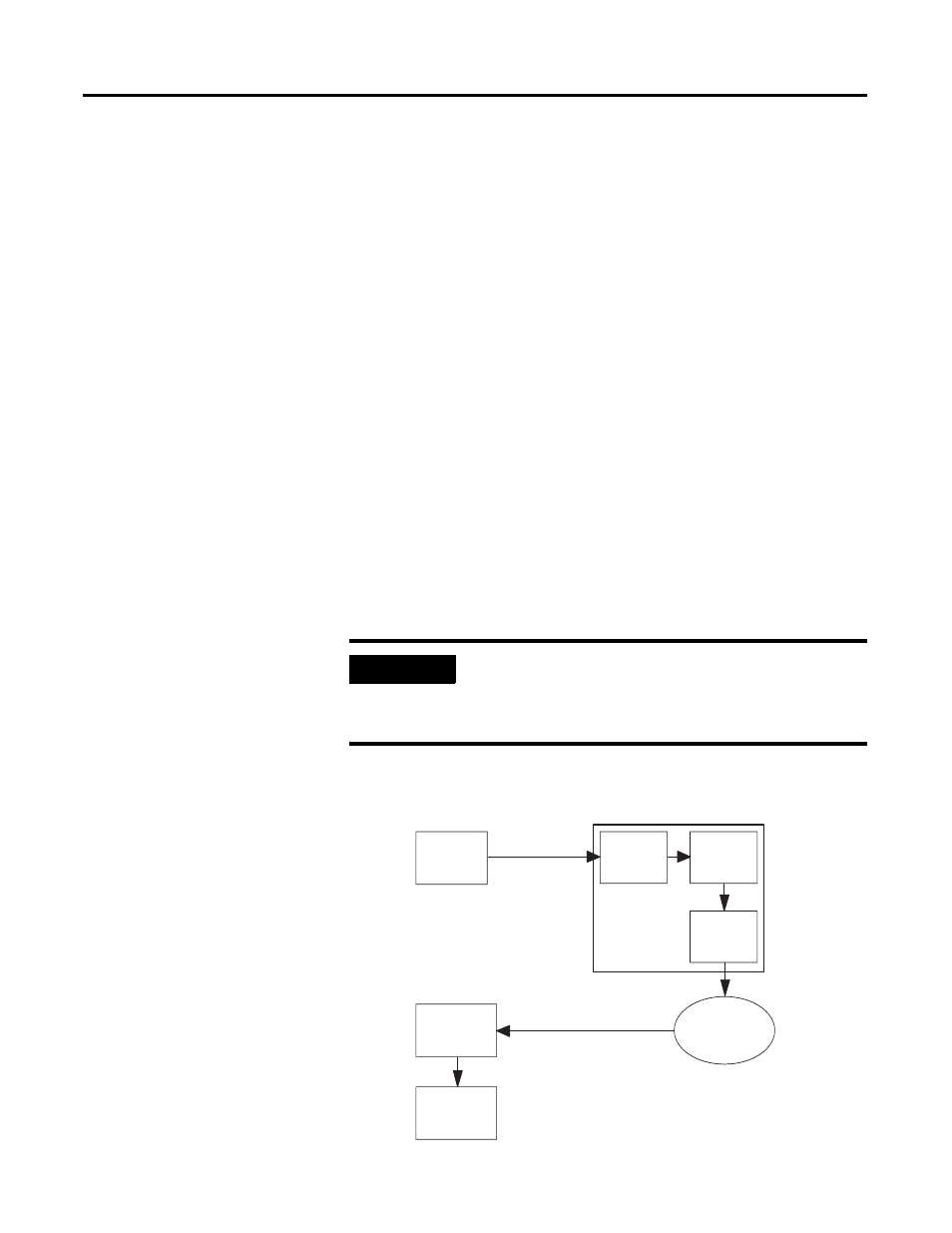

ENI/ENIW email behavior in a system is described by the following
diagram.
IMPORTANT
Email messages can only be initiated by controllers
that support String elements. Therefore, this
functionality cannot be used with the
MicroLogix 1000 family of controllers.
Controller
Destination
Server
Destination
Mailbox
DF1 String
Message
Mail
Queue
SMTP
Client
Primary
Relay Agent
mailgate.xyz.com
485CIF/PLC2
Message with
Embedded Email
Local Ethernet or Internet
TCP Connection
ENI/ENIW
