8-28 Connecting CompactLogix Controllers on Ethernet
1. From the Logic pull down menu, select “Map PLC/SLC
Messages”. Your mapped table for your Logix program should
look like the following:

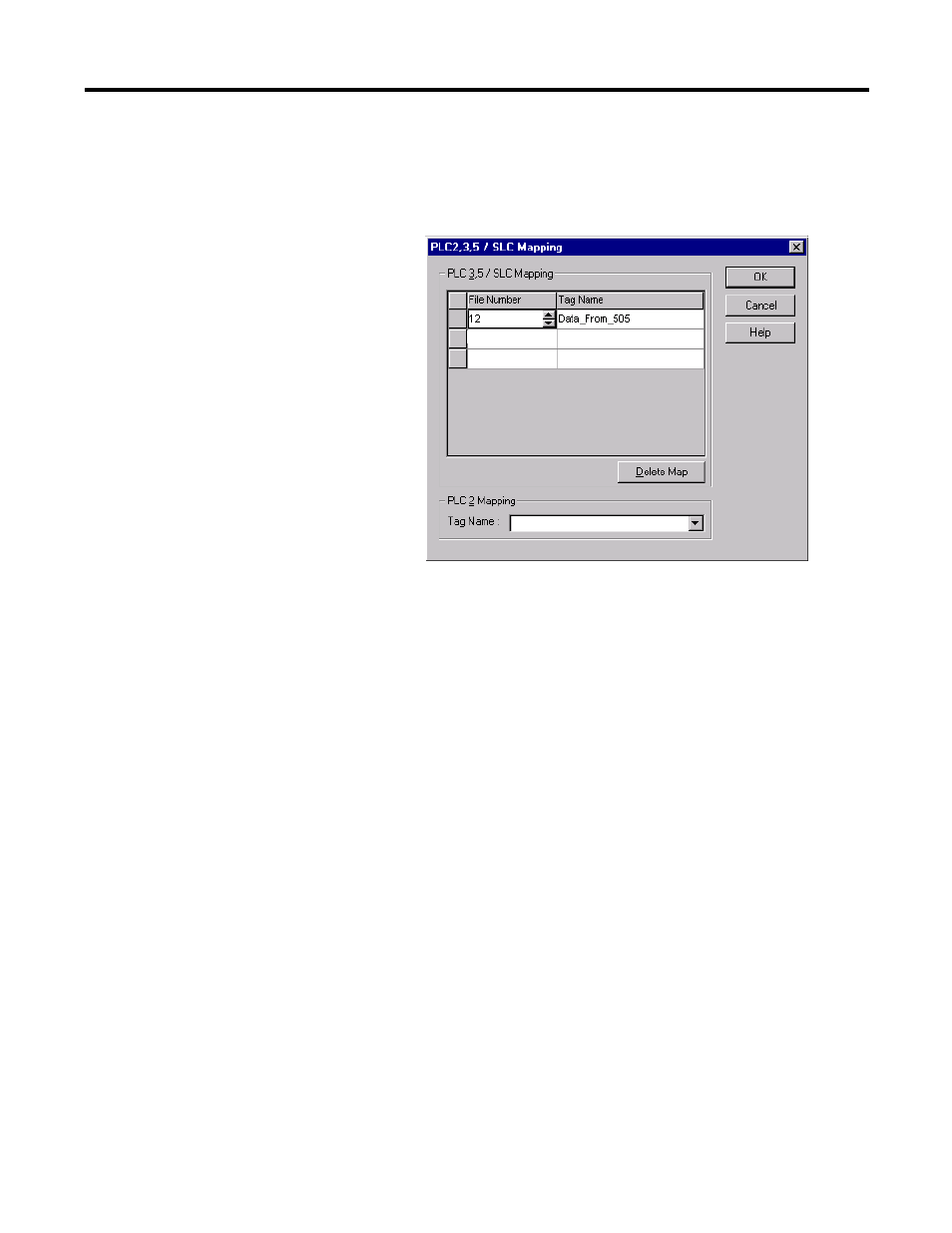

Figure 8.30 File Mapping for the ControlLogix Controller in RSLogix 5000
2. Save your program.
3. From the RSLogix 500 programming software, you should now
be able to download your SLC 5/05 program. Then, from the
RSLogix 5000 software you should now be able to download
your ControlLogix controller program.
4. Once all programs are downloaded to their respective
controllers, place each controller into the RUN mode and a MSG
from each controller will be sent to each of the other controllers.
Each controller will only send one MSG at any given time. Go
online with the CompactLogix, SLC 5/05, and ControlLogix
controllers to verify the successful completion of their messages.
