Publication 1761-UM006E-EN-P - August 2005
2-4 Installation and Wiring

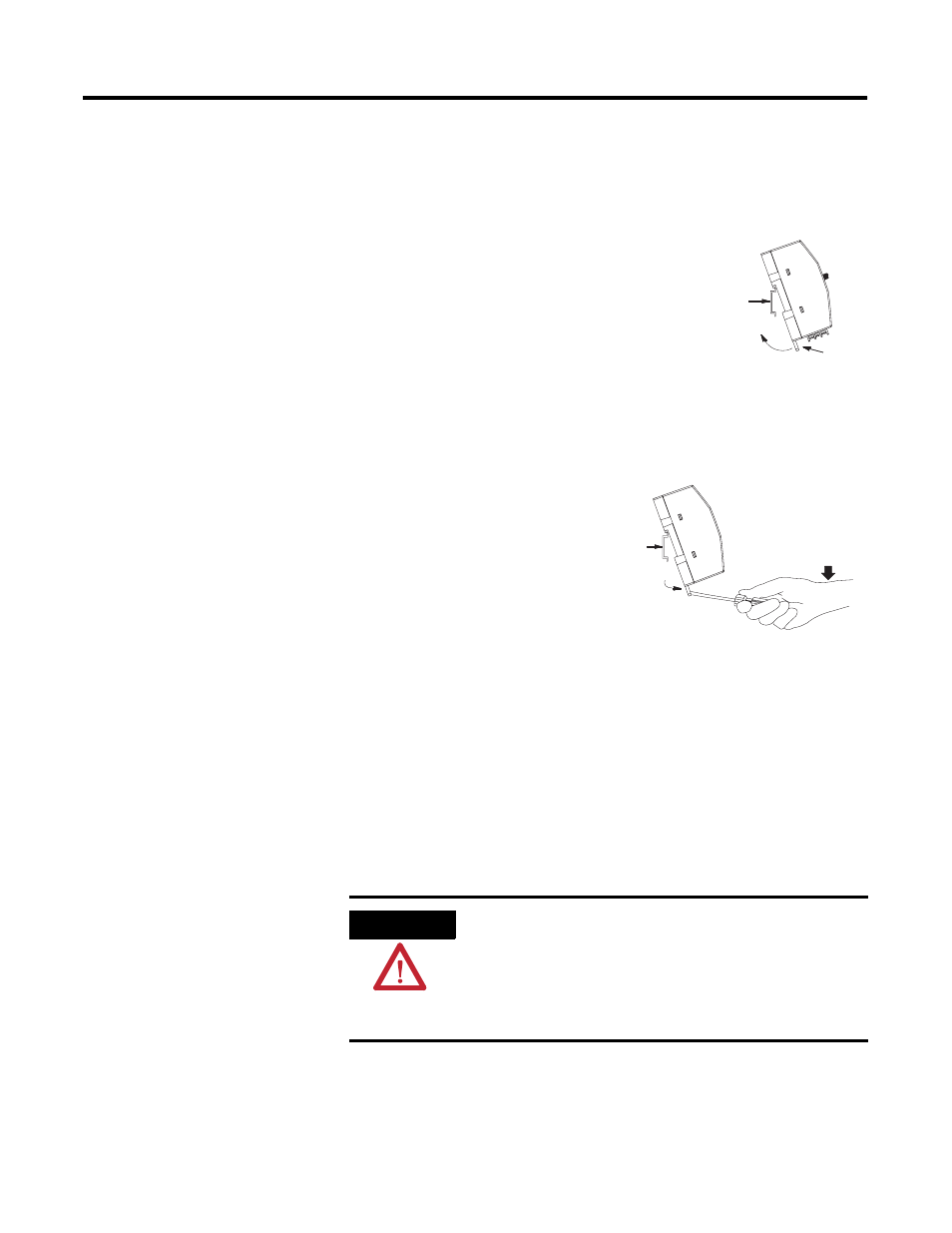

DIN Rail Mounting
Installation
1. Mount your DIN rail.
2. Snap the DIN rail latch into the closed
position.
3. Hook the top slot over the DIN rail.
4. While pressing the unit against the rail,
snap the unit into position.
Removal
1. Place a screwdriver in the
DIN rail latch at the bottom
of the unit.
2. Holding the unit, pry
downward on the latch until
the unit is released from the
DIN rail.
Panel Mounting
Template
See Appendix A for panel mounting dimensions.
Installation
ATTENTION
Be careful of metal chips when drilling mounting
holes for your equipment within the enclosure or
panel. Drilled fragments that fall into the equipment
could cause damage. Do not drill holes above
mounted equipment if the protective debris strip has
been removed.
DIN
Rail
Latch
DIN
Rail
Side
View
