Rockwell Automation 284E ArmorStart EtherNet IP Communications and Control Programming Manual User Manual
Page 87
Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
87
ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual Appendix C

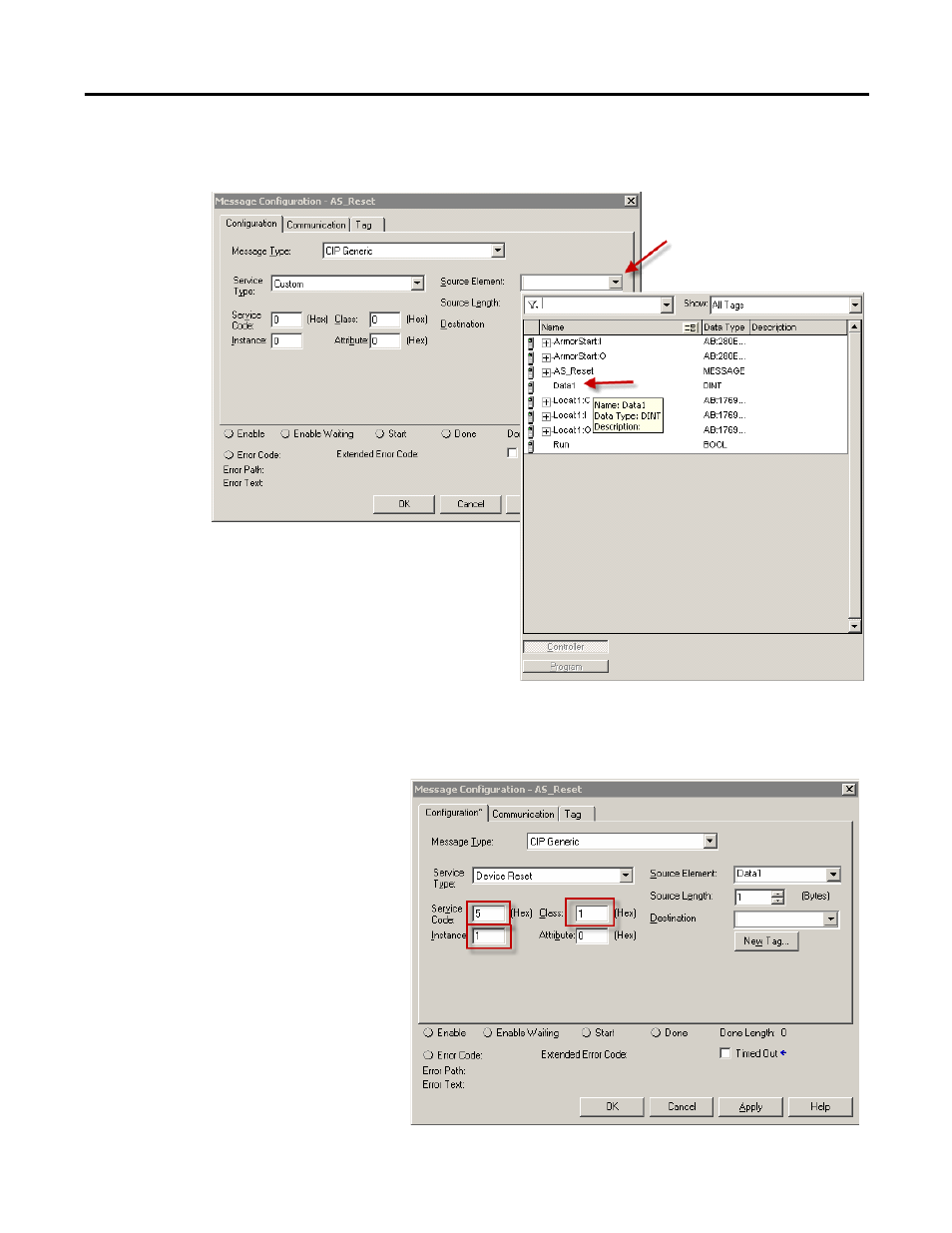

f. Click on the Source Element drop-down box and select the Data1 tag
that was created earlier and presses Enter.
g. Enter 5 for the Service Code, 1 for the Class, and 1 for the Instance.
Leave the Attribute value at 0. Once you have added these values, the
Service Type
should automatically change to Device Reset.
